Outdoor Liquid-cooled Battery Cabinet

(without PCS)

1. High-efficiency liquid cooling technology with a temperature difference ≤3°C
2. 300AH large single batteries, adopting laser welding process.
3. Outdoor integrated cabinet design, IP55, directly installed outdoor.
4. Advanced heat insulation refractory, provides 2H of fire resistance.
5. Enabling direct outdoor installation.

Download PDF

Online Support

Main Components of Battery Rack

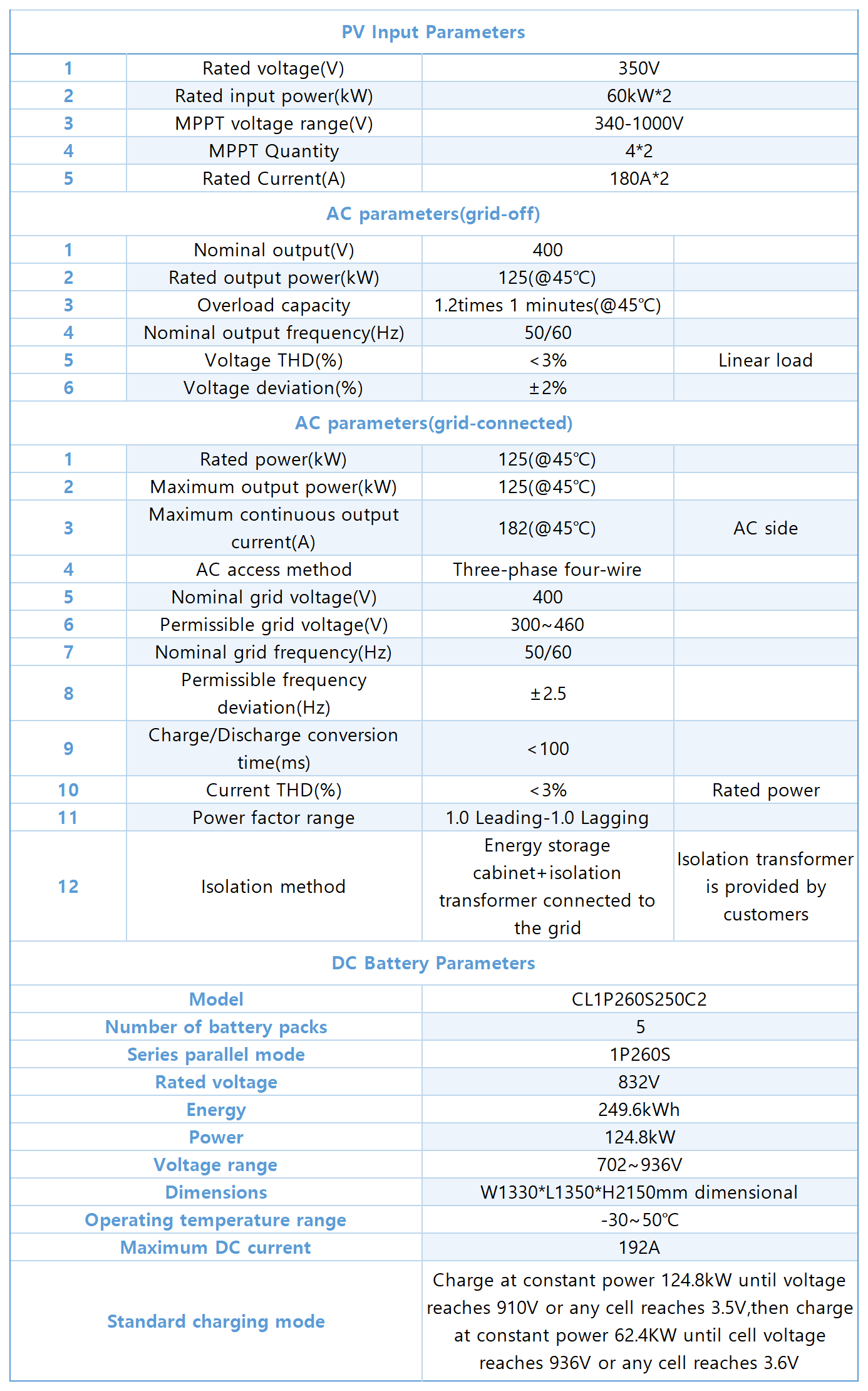

C-L-1P260S-250-C–2
No.	Component	Quantity	Unit	Remark
1	Rack Frame	1	set	/
2	Battery Pack	5	pcs	1P52S.Built-in BMU
3	HV Box	1	pcs	/
3.1	AC/DC	1	pcs	Built into HV Box
3.2	Lead-acid battery	2	pcs	12V12Ah
3.3	BMS	1	set	BCMU
4	Liquid Cooling System	1	set	Mainframe,Liquid Cooling Plate and Conduit
5	Fire Protection System	1	set	Aerosol fire extinguishing device, smoke/temperature detector,sound and light alarm,explosion-proof exhaust valve, water fire interface,etc
6	EMS	1	set	With local monitoring,no remote monitoring
7	PCS	1	set	125kW
8	DCDC	2	set	60kW
9	Dehumidifier	1	pcs	/
10	Water sensor	1	pcs
11	Exchange board	1	pcs
12	Three-phase electronic multi-function energy meter	1	pcs
13	Anti backflow electric meter	1	pcs	Accessory part
