Stacked Modular Architecture: Enables easy capacity scaling without affecting existing wiring.
High Voltage Operation: Improves energy efficiency and minimizes thermal dissipation.
Grade A LiFePO4 Cells: Deliver over 6,000 deep cycles and consistent performance.
IP54 Sealed Enclosure: Protects against dust and moisture for indoor/outdoor installation.
Smart EMS Integration: Real-time monitoring, OTA updates, and automatic optimization of energy modes.
Energy Cost Optimization: Supports PV Priority, ToU arbitrage, and backup energy scenarios.
Solar-powered smart homes
Residential backup energy solutions
Energy cost reduction and grid-independent operation

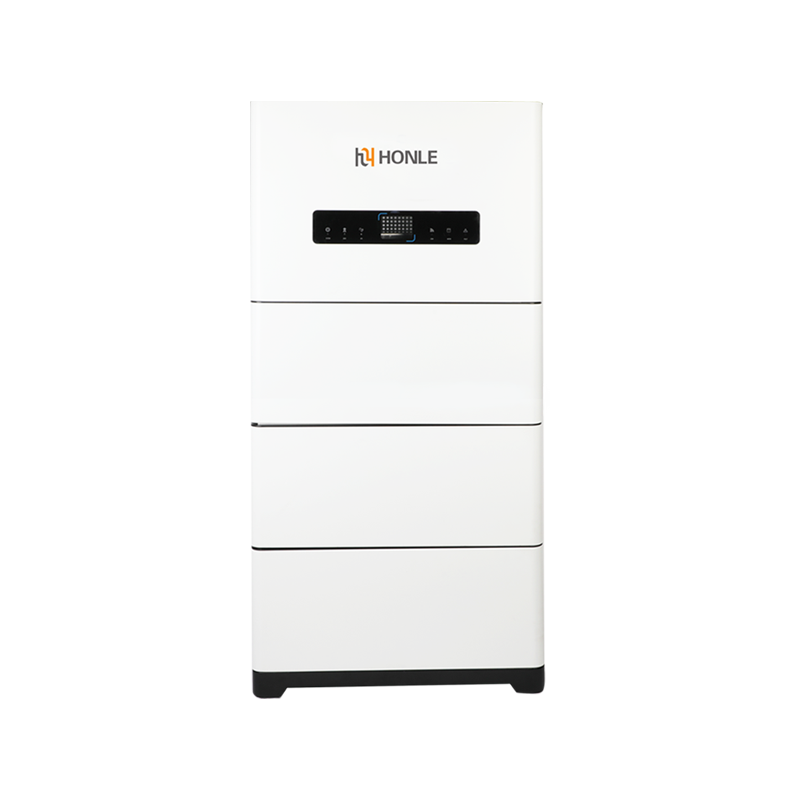

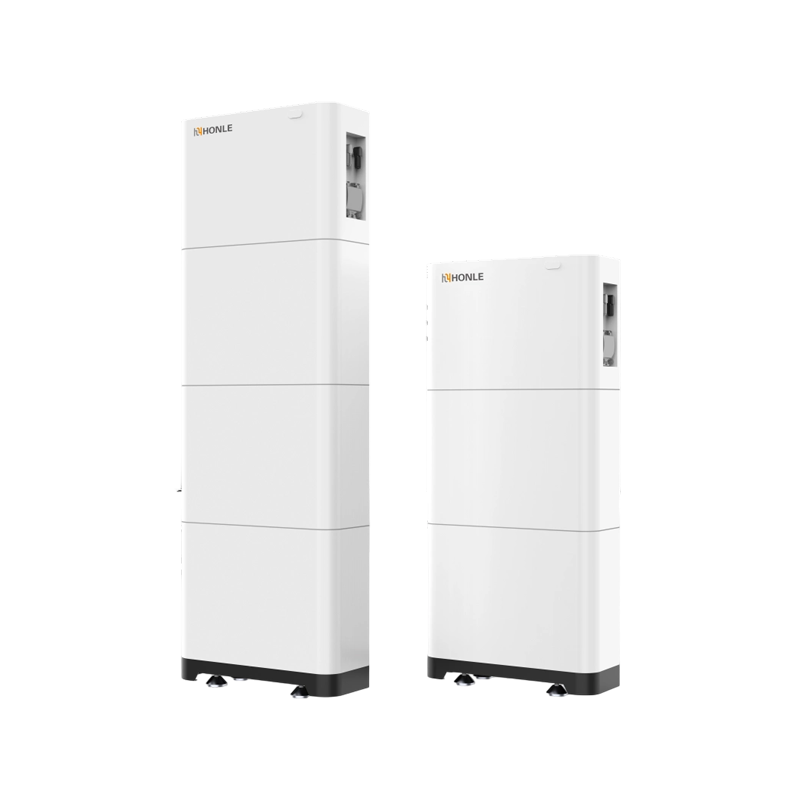

The HPIXP stacked all-in-one energy storage system targets high-end residential solar energy applications, offering modular stackable LiFePO4 batteries integrated with a high-efficiency hybrid inverter. Its design allows for seamless expansion, intelligent energy management, and reliable long-term performance.
|
Model |
HLH-HV-FU001-2 |
HLH-HV-FU001-3 |
HLH-HV-FU001-4 |
|
Battery |
|||
|
Single Module Capacity |
5.12kWh |
||
|
Standard Voltage |
102.4V |
||
|
Product Dimension |
700*235*307mm |
||
|
Package Dimension |
790*325*402mm |
||
|
Net Weight |
44kg |
||
|
Total Product Dimension |
700*235*1470mm |
700*235*1772mm |
700*235*2075mm |
|
Total Net Weight |
132kg |
177kg |
222kg |
|
Nominal Voltage |
204.8V |
307.2V |
409.6V |
|
Rated Energy |
10.24kWh |
15.36kWh |
20.48kWh |
|
Working Voltage |
172.8-230.4V |
259.2~345.5V |
345.6-460.8V |
|
Working Temperature |
0-55℃ |
||
|
Storage Temperature |
-20-55℃ |
||
|
IP Rating |
IP54 |
||
|
Cooling |
Natural |
||
|
Communication |
CAN/WIFI |
||
|
PV input |
|||
|
Max Power |
15000W |
||
|
Max Voltage |
1000VDC |
||
|
MPPT Voltage Range |
200~850VDC |
||
|
Max Input Current/Per String |
13A/13A |
||
|
AC Output/input |
|||
|
Nominal Power |
10000W |
||
|
Max Output/nput Current |
17A/25A |
||
|
Nominal Output/nput |
50/60Hz; 380/400VAC |
||
