Integrated All-in-One Design: Combines PCS and battery in a single cabinet, reducing installation steps and saving indoor space.
Flexible Placement: Floor-standing structure allows placement without wall mounting, suitable for homes with limited wall space.
Parallel Scalability: Supports up to 15 battery units in parallel, enabling homeowners to expand system capacity for backup power, self-consumption, or daily energy management.
High Operational Safety: Built-in BMS monitors voltage, current, temperature, and battery status, automatically protecting the system under abnormal conditions.




High-Cycle LFP Battery Technology: Grade A LFP cells provide up to 6000 cycles, offering long-term reliability for daily energy storage.
Thermal and Performance Stability: LFP chemistry ensures consistent output and strong thermal stability, suitable for varied indoor environments.
Wide Temperature Operation: Operates effectively between –20°C and +55°C, supporting diverse residential conditions.
Standards Compliance: Fully compliant with FCC, CE, UN38.3, and MSDS, guaranteeing safety and global compatibility.
Modular Energy Expansion: Parallel capability allows system expansion based on household energy demands or future solar PV system growth.

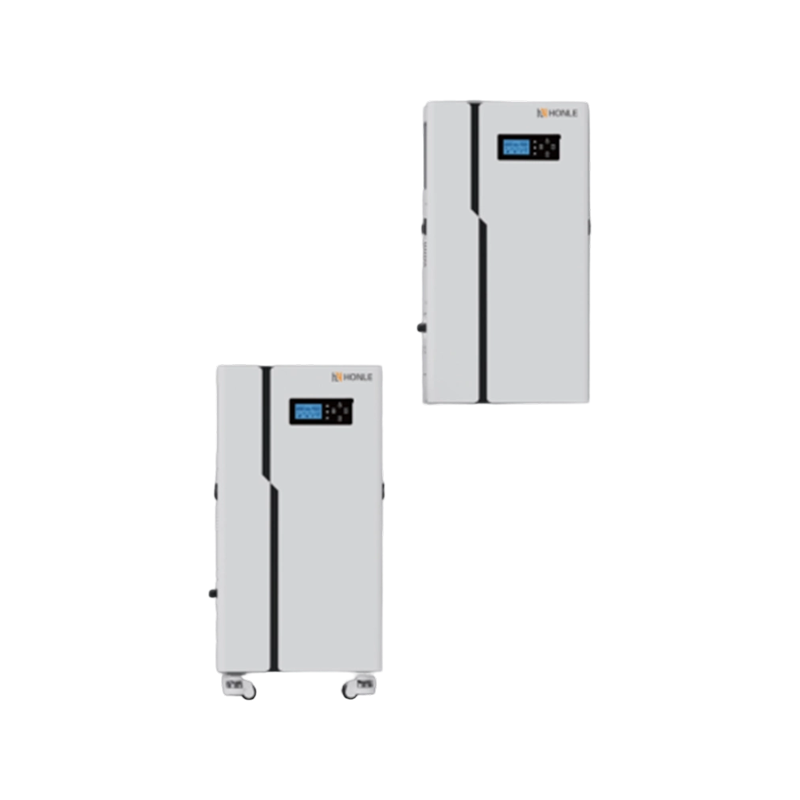

The All-in-One Floor-Standing Energy Storage System with Integrated PCS & Battery is a modular residential energy storage solution designed for indoor deployment and flexible energy management. This all-in-one unit combines the inverter (PCS) and battery system within a single cabinet, simplifying installation and reducing wiring complexity. Built with brand-new Grade A LFP battery cells, the system provides up to 6000 charge-discharge cycles, ensuring reliable long-term performance. The LFP chemistry offers excellent thermal stability and consistent output, making it suitable for daily home energy use. With an IP20 protection rating, the system is tailored for indoor environments such as garages, utility rooms, and residential energy storage areas. Additionally, it supports parallel operation of up to 15 units, allowing homeowners to scale storage capacity according to solar PV expansion or household electricity needs. The operating temperature range of –20°C to +55°C guarantees stable performance under varying environmental conditions. Compliance with FCC, CE, UN38.3, and MSDS standards ensures safe and reliable residential deployment.
|
Model |
SMP-EU105 |
SMP-EU106 |
SMP-EU107 |
|
Battery |
|||
|
Batter Type |
25.6V100Ah |
25.6V200Ah |
51.2V100Ah |
|
Rated Voltoge |
25.6V |
25.6V |
51.2V |
|
Working Voltoge Range |
21.6V-28.8V |
21.6V-28.8V |
43.2V-57.6V |
|
Rated Energy |
2.56kWh |
5.12kWh |
5.12kWh |
|
PV input |
|||
|
Max PVOCV |
160VDC |
500VDC |
|
|
MPPT Voltoge Range |
30~128VDC |
120~450VDC |
|
|
Max Input Power |
1600W |
6000W |
|
|
Max Charge-Discharge Current |
16A |
22A |
|
|
AC |
|||
|
Input Voltge |
220-240VAC |
||
|
Output Voltage |
220/230/240VAC |
||
|
Optional Voltoge Range |
170V-280Voc(UPS/90V-280Vac(APL)/ |
170V-280Voc(UPS) |
|
|
Input Current |
14A |
22A |
|
|
Output Current |
14A(Term)/10A(Outlet) |
22ATerm)/10A(Outlet) |
|
|
Frequency |
50Hz/60Hz |
50Hz/60Hz |
|
|
Rated Output Power |
3000W |
5000W |
|
|
General Parameters |
|||
|
Communication |
RS485/WIFI |
||
|
Working Altitude |
≤2000m |
||
|
Cooling |
Natural |
||
|
Installation |
Floor Standing |
||
|
IP Rating |
IP20 |
||
|
Cycle Life |
≥6000@25℃,80%DOD |
||
|
Working Temperature |
0~55℃ |
||
|
Storoge Temperature |
-20~55℃ |
||
|
Humidity |
≤80% |
||
|
Product Dimension |
450*671*350mm |
||
|
Pockoge Dimension |
550*770*570mm |
||
|
Net Weight |
40kg |
56kg |
63kg |
|
20GP Container |
112PCS |
||
|
40HO Container |
224PCS |
||
