PowerCube is engineered to handle extreme load conditions with outstanding dynamic response capability. The system supports load startup power exceeding five times the nominal rated power within one second, enabling smooth startup of heavy equipment and high-inrush-current machinery. Additionally, it can sustain 1.5 times the rated power output for up to five seconds under load, ensuring system stability during transient overload conditions.
A zero-millisecond switching capability allows PowerCube to transition seamlessly between power sources without interruption. This feature is critical for applications where even minimal power loss can cause equipment malfunction, data corruption, or operational downtime. Real-time remote monitoring enables continuous tracking of system performance, load status, battery conditions, and operational parameters, supporting intelligent power management and predictive maintenance.

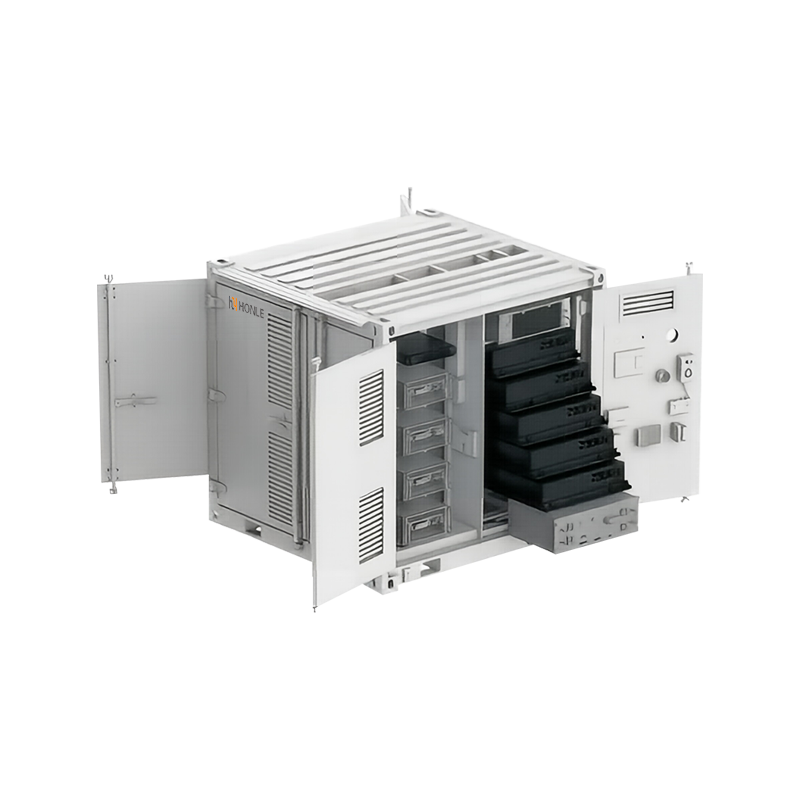

The system adopts a highly integrated design that combines battery modules, power electronics, control systems, and safety protection into a compact and robust structure. Multiple protection mechanisms are implemented to manage electrical, thermal, and operational risks. The use of LFP battery chemistry further enhances system safety and thermal stability, making PowerCube suitable for demanding industrial environments requiring both power strength and operational reliability.

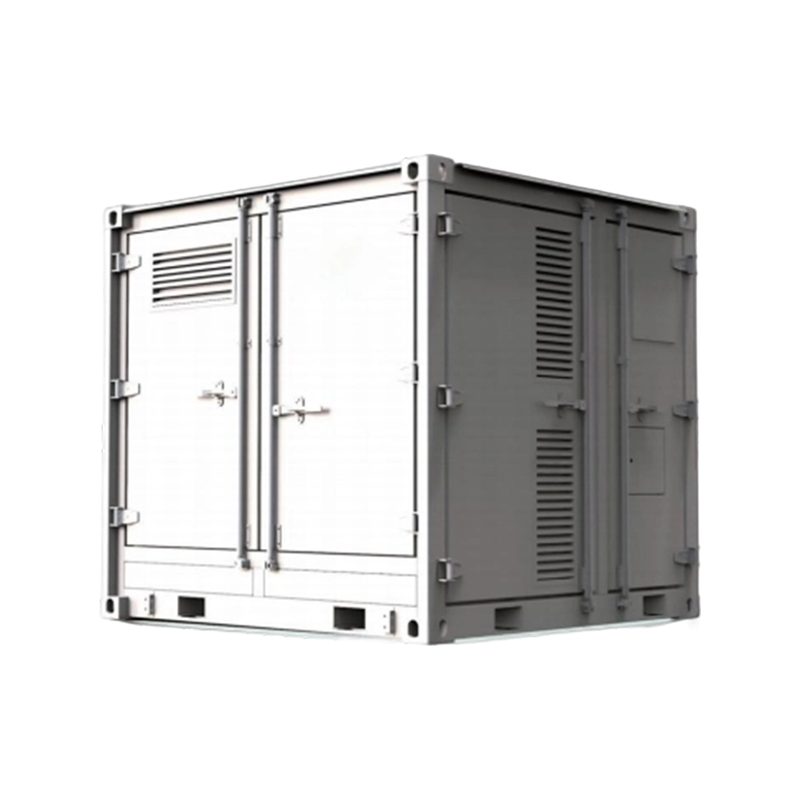

The PowerCube Industrial & Energy Storage Stabilization System is a newly developed solution designed to deliver high-power output, ultra-fast response, and reliable power stabilization for industrial and critical-load applications. Unlike capacity-oriented energy storage systems, PowerCube focuses on power performance, transient load handling, and power continuity in environments where voltage stability and response speed are essential.
The system is available in nominal rated power configurations of 125kVA, 250kVA, 375kVA, and 500kVA, providing flexible scalability to match different industrial power demands. It integrates all-new Grade A LFP battery cells with a cycle life of up to 8000 cycles, ensuring stable performance and long operational endurance under frequent charge and discharge conditions.
Designed for outdoor deployment, the system features an IP54 protection level, enabling stable operation in industrial environments exposed to dust, moisture, and fluctuating temperatures. PowerCube supports both on-grid and off-grid operation modes, allowing it to function as a power stabilization unit, backup energy source, or hybrid energy management system. With compliance to FCC, CE, UN38.3, and MSDS standards, the system is suitable for international industrial projects requiring high reliability and regulatory alignment.
|
Model |
Power Cube-125 |
Power Cube-250 |
Power Cube-350 |
Power Cube-500 |
|
PERFORMANCE |
||||
|
Nominal Rated Power |
125kVA |
250kVA |
375kVA |
500kVA |
|
Overload Power(5S) |
187.5kVA |
375kVA |
562.5kVA |
750kVA |
|
ELECTRICAL |
||||
|
Input Voltage |
380/400V ac±15% |
380/400V ac±15% |
380/400V ac±15% |
380/400V ac±15% |
|
Output Voltage Range |
380/400/415V ac |
380/400/415V ac |
380/400/415V ac |
380/400/415V ac |
|
Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Power Factor |
99% |
99% |
99% |
99% |
|
Power Factor Range |
-1~+1 |
-1~+1 |
-1~+1 |
-1~+1 |
|
Nominal AC Current |
189A |
378A |
567A |
756A |
|
Max AC Current(5S) |
283.5A |
567A |
850.5A |
1134A |
|
Nominal Capacity |
230kWh |
230kWh |
460kWh |
460kWh |
|
ENVIROMENTAL |
||||
|
IP Rating |
IP54 |
|||
|
Corrosion Protection |
C5 |
|||
|
Operating temperature |
-20~50℃ |
|||
|
Humidity(No condensation) |
<90% |
|||
|
Maximum Operating Altitude |
2000m |
|||
|
Sound Power Level |
65dBa@1m |
|||
|
CONTROLS |
||||
|
Protection |
Short circuit protection, overvoltage protection, overcurrent protection, emergency stop protection |
|||
|
Remote Start Generator |
YES |
|||
|
Remote Connectivity |
4G, WiFi |
|||
|
SIZE |
||||
|
Dimensions(LxWxH) |
2338*2200*2200mm |
2338*2200*2200mm |
3000*2200*2250mm |
3000*2200*2250mm |
|
Weight |
4880kg |
5060kg |
7320kg |
7450kg |
