Modular Stacked Design: Allows users to expand capacity by physically stacking additional battery modules without rewiring existing circuits.
Hybrid Inverter Integration: Seamlessly manages energy from solar panels, grid, and batteries for optimized power distribution.
Low Voltage Architecture (48V): Ensures safety and compatibility with standard residential wiring.
Grade A LiFePO4 Cells: Support over 6,000 deep cycles, ensuring more than a decade of intensive use.
IP54-rated Industrial Enclosure: Protects against dust and moisture ingress.
Smart Energy Management: Includes an EMS with cloud connectivity, OTA updates, and real-time monitoring via mobile app.
Urban residential homes with solar PV systems
Backup power for critical household appliances

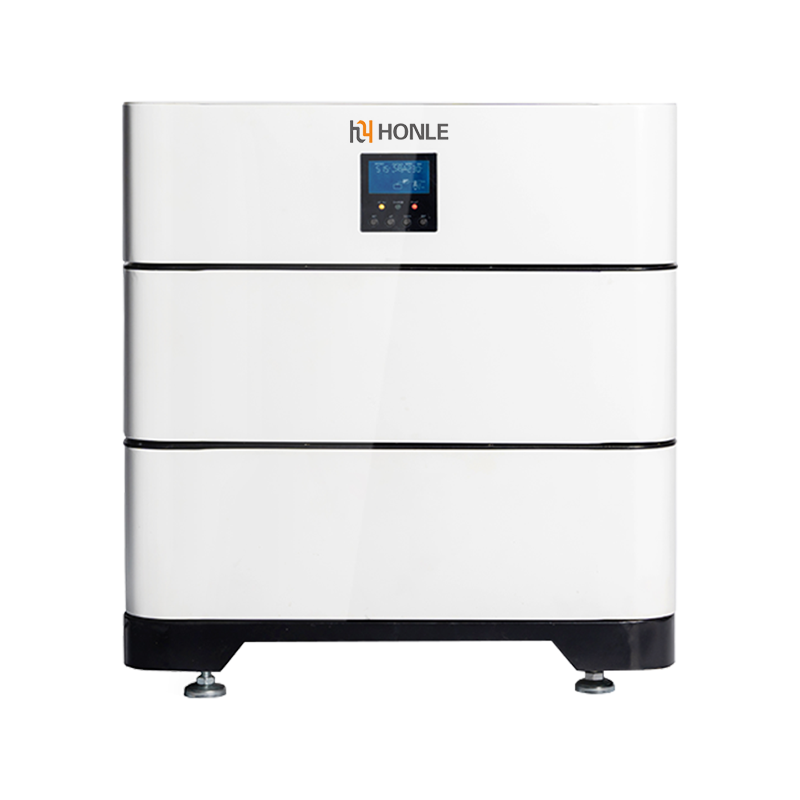

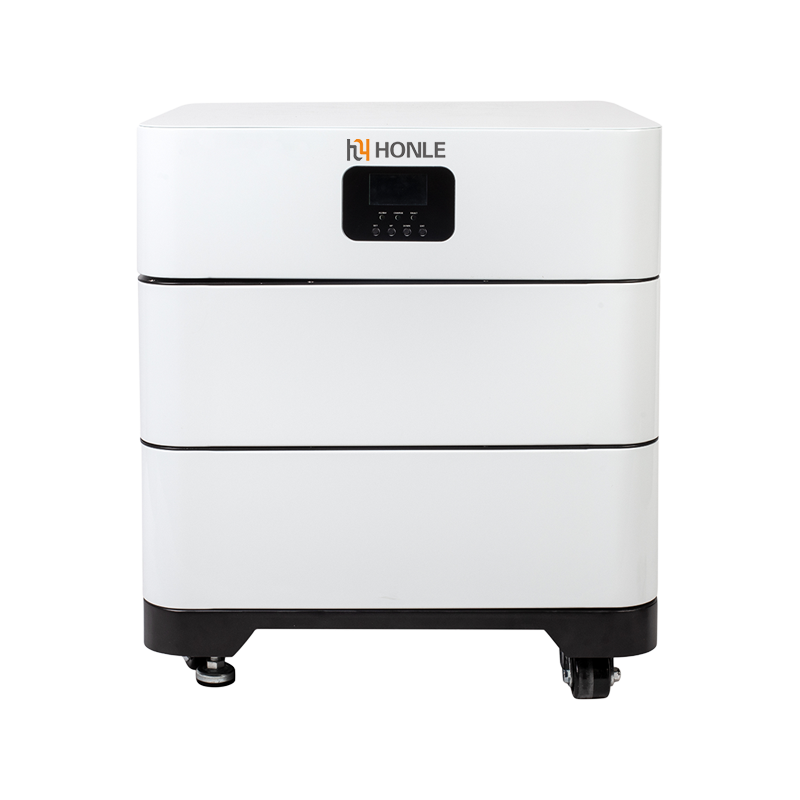

The SMP-EU stacked all-in-one energy storage system is engineered for high-end residential energy management. Utilizing a stacked, modular architecture, this system integrates a Hybrid Inverter with low-voltage LiFePO4 battery modules, providing reliable and expandable power storage. Its design emphasizes ease of installation, scalability, and long-term durability, making it an ideal solution for urban villas and small residential complexes seeking energy independence.
|
Model |
HLC-EU202-2 |
HLC-EU202-3 |
HLC-EU202-4 |
HLC-EU202-5 |
|
Battery |
||||
|
Single Module Capacity |
5.12kWh |
|||
|
Module Number |
2PCS |
3PCS |
4PCS |
5PCS |
|
Total Energy |
10.24kWh |
15.36kWh |
20.48kWh |
25.6kWh |
|
Standard Voltage |
51.2V |
|||
|
Working Voltage Range |
43.2V-57.6V |
|||
|
Standard discharge Current |
100A |
|||
|
Standard Charge Current |
50A |
|||
|
DOD |
90% |
|||
|
Installation |
Stacked |
|||
|
Product Dimension(Module) |
550*500*170mm |
|||
|
Packoge Dimension(Module) |
650*600*270mm |
|||
|
Net Weight(Module) |
46kg |
|||
|
PV input |
||||
|
Working Voltage Range |
100-500VDC |
|||
|
MPPT Working Voltage Range |
125~425VDC |
|||
|
Input Power |
PV1:5500W/PV2:5500W |
|||
|
Max Input Current |
PV1:22A/PV2:22A |
|||
|
AC Output/input |
||||
|
Max Charging Current |
50A |
|||
|
Rated Input Voltage |
220/230/240VAC |
|||
|
Rotted Input Voltage Range |
90-275VAC |
|||
|
Frequency |
50Hz/60Hz |
|||
|
Max Bypass Overload Current |
50A |
|||
|
Rated Output Voltage |
220/230/240VAC |
|||
|
Rated Output Power |
10000WV(Battery mode) |
|||
|
Generol Parameters |
||||
|
Total Product Dimension |
550*500*723mm |
550*500*893mm |
550*500*1063mm |
550*500*1233mm |
|
Ingress Protection |
IP20 |
|||
|
Communication |
CAN/RS485/RS232/WIFI (Optional) |
|||
|
Working Temperature |
0-55℃ |
|||
|
Storoge Temperature |
-20~55℃ |
|||
|
Humidity |
≤80% |
|||
|
20GP Container |
BAT*3+INV+Base 50pcs |
|||
|
40HQ Container |
BAT*3+INV+Base 100pcs |
|||
