Ultra-lightweight construction allows easy transport and installation on RVs, boats, and tents.
High flexibility supports curved and irregular surfaces without compromising power output.
Durable multi-layered design ensures long-term resistance to mechanical stress and environmental wear.
95% light transmittance enhances sunlight absorption for stable electricity generation under STC conditions.
Pre-drilled mounting holes simplify installation and enable flexible layout for small-scale solar setups.
Optimized cell layout increases energy efficiency throughout the day.

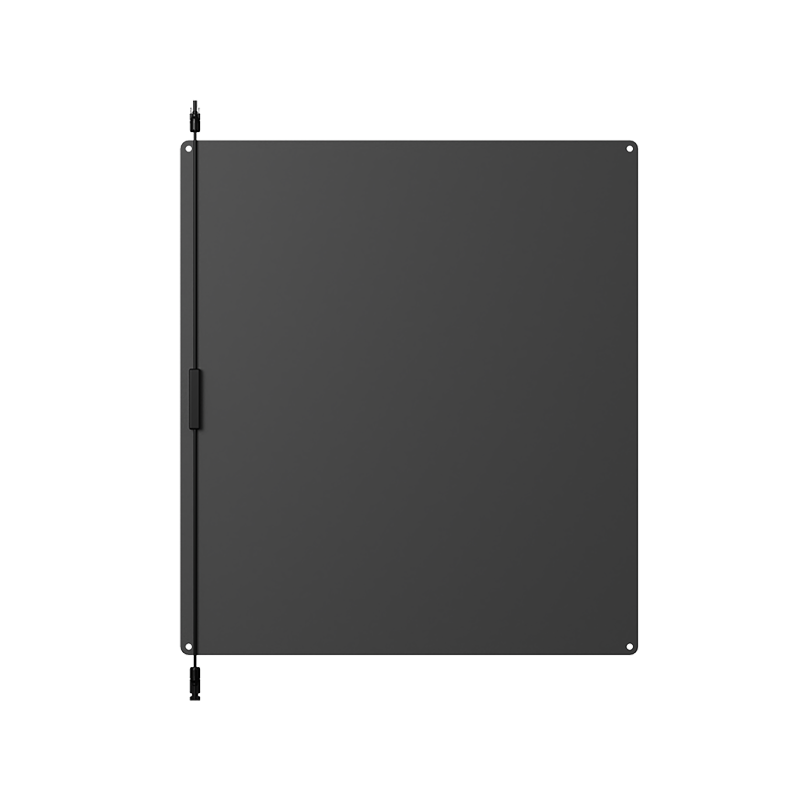

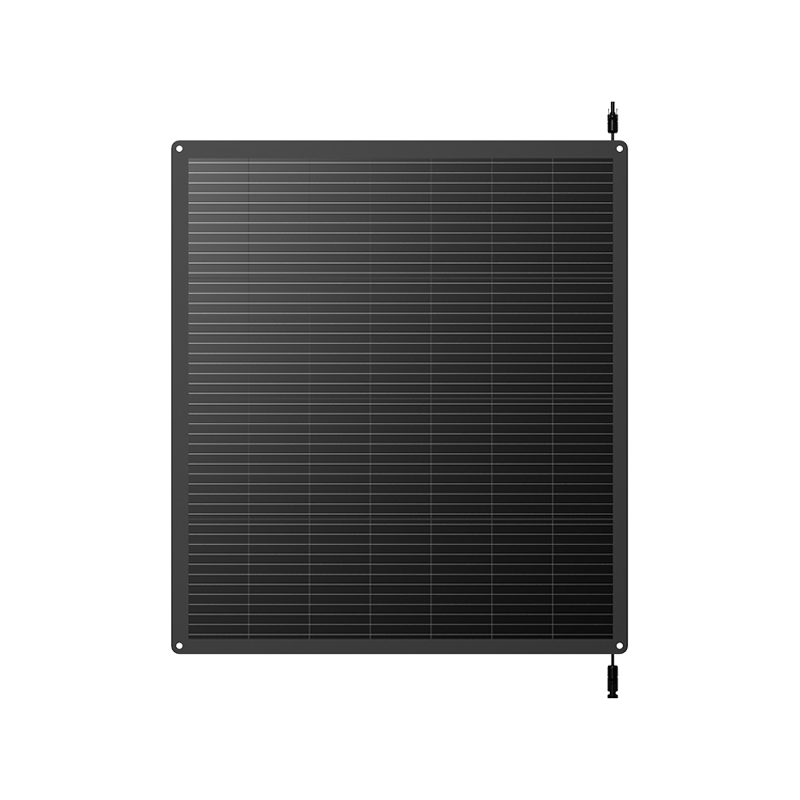

The 135W Lightweight Flexible Solar Panel delivers efficient, portable solar energy for a wide range of mobile and compact applications. With a slim profile of 2.5mm and weighing approximately 3.63kg/m², this panel is designed for curved or uneven surfaces where traditional rigid panels cannot be applied. Certified to CE and RoHS standards, it ensures reliable and safe outdoor performance even in extreme temperatures ranging from -40°C to +85°C.
|
ELECTRICAL DATA |
||
|
Model Type |
YH135W-14M |
|
|
Peak Power(Pmax) |
135 |
|
|
Maximum Power Voltage(Vmp) |
15.59V |
|
|
Maximum Power Curren(Imp) |
8.66A |
|
|
Open Circuit Voltage(Voc) |
18.40V |
|
|
Short Circuit Current(Isc) |
9.15A |
|
|
Module Efficiency(%) |
18.46 |
|
|
*STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25℃ |
||
|
THERMAL CHARACTERISTICS & OPERATING CONDITIONS |
||
|
Maximum System Voltage(V) |
1000 |
|
|
Maximum Series Fuse Rating(A) |
10 |
|
|
Power Tolerance |
0~+3% |
|
|
Pmax Temperature Coefficients(W/℃) |
-0.400% |
|
|
Voc Temperature Coefficients(V/℃) |
-0.330% |
|
|
Isc Temperature Coefficients(A/℃) |
+0.048% |
|
|
NOCT Nominal Operating CellTemperature(℃) |
45±2 |
|
|
Operating and Storage Temperature(℃) |
-40~+85 |
|
|
MECHANICAL CHARACTERISTICS |
||
|
Cell Type |
210*105Mono |
|
|
No. of Cells |
28(4*7) |
|
|
Dimensions |
900*805*3mm |
|
|
Weight |
2.67kg |
|
|
Junction box |
IP65/IP67 |
|
|
Output cables |
2.5mm² cable90cm+mc4 |
|
|
MaxWind Load/Snow Load |
2400Pa/5400Pa |
|
