Reinforced 9-layer construction ensures excellent resistance to bending, impact, and harsh outdoor conditions.
Flexible design allows easy adaptation to non-flat surfaces.
Lightweight profile reduces installation load on delicate structures.
High sunlight absorption with 95% light transmittance ensures maximum power output.
Pre-drilled holes provide quick and secure mounting.
Optimized cell placement improves daily energy capture.

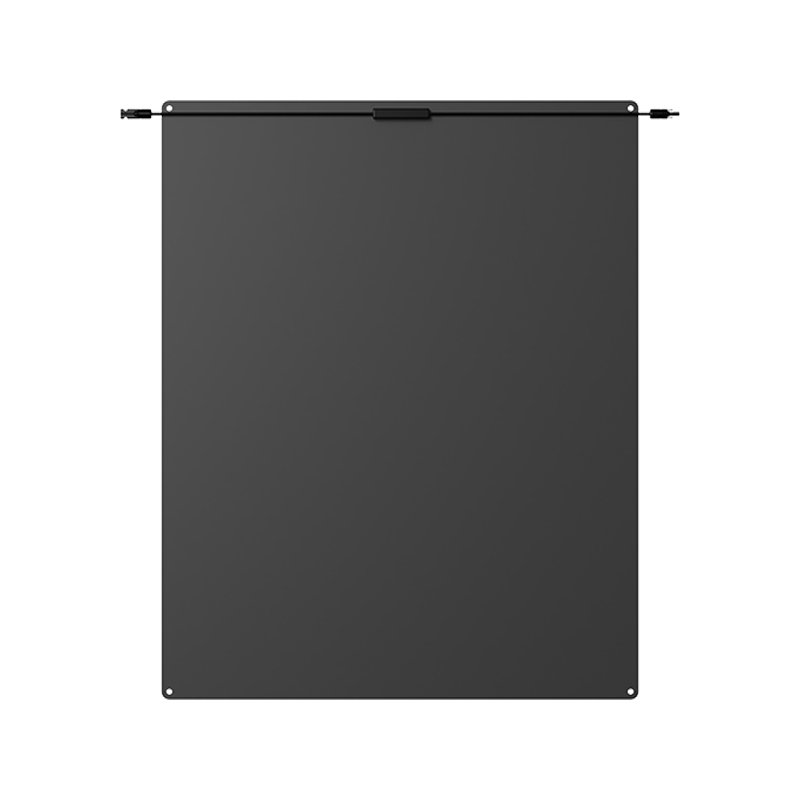

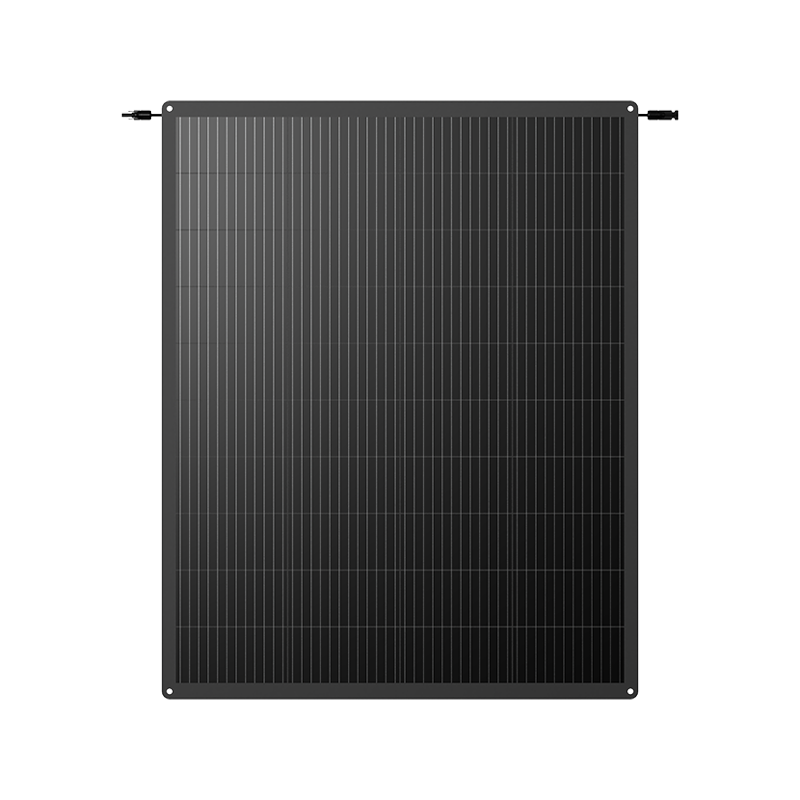

The 200W Durable Flexible Solar Panel combines high performance with rugged construction, making it suitable for long-term outdoor installations. Its flexible and lightweight design allows deployment on boats, RVs, and curved rooftops while maintaining stable electric output under various environmental conditions.
|
ELECTRICAL DATA |
|
|
Model Type |
YH200W-20M |
|
Peak Power(Pmax) |
200 |
|
Maximum Power Voltage(Vmp) |
22.53V |
|
Maximum Power Current(Imp) |
8.88A |
|
Open Circuit Voltage(Voc) |
26.56V |
|
Short Circuit Current(Isc) |
9.39A |
|
Module Efficiency(%) |
19.45 |
|
*STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25℃ |
|
|
THERMAL CHARACTERISTICS & OPERATING CONDITIONS |
|
|
Maximum System Voltage(V) |
1000 |
|
Maximum Series Fuse Rating(A) |
10 |
|
Power Tolerance |
0~+3% |
|
Pmax Temperature Coefficients(W/℃) |
-0.400% |
|
Voc Temperature Coefficients(V/℃) |
-0.330% |
|
Isc Temperature Coefficients(A/℃) |
+0.048% |
|
NOCT Nominal Operating CellTemperature(℃) |
45±2 |
|
Operating and Storage Temperature(℃) |
-40~+85 |
|
MECHANICAL CHARACTERISTICS |
|
|
Cell Type |
210*105Mono |
|
No. of Cells |
40(4*10) |
|
Dimensions |
1130*900*3mm |
|
Weight |
3.75kg |
|
Junction box |
IP65/IP67 |
|
Output cables |
4mm² cable 90cm +mc4 |
|
MaxWind Load/Snow Load |
2400Pa/5400Pa |
