High-power output ensures consistent energy supply for mobile and off-grid setups.
Reinforced flexible structure resists mechanical stress and environmental wear.
Lightweight and ultra-thin design reduces structural load and simplifies transport.
95% light transmittance for efficient sunlight capture.
Optimized solar cell layout supports stable electricity generation under varying conditions.
Pre-drilled mounting holes allow fast, secure, and versatile installation.

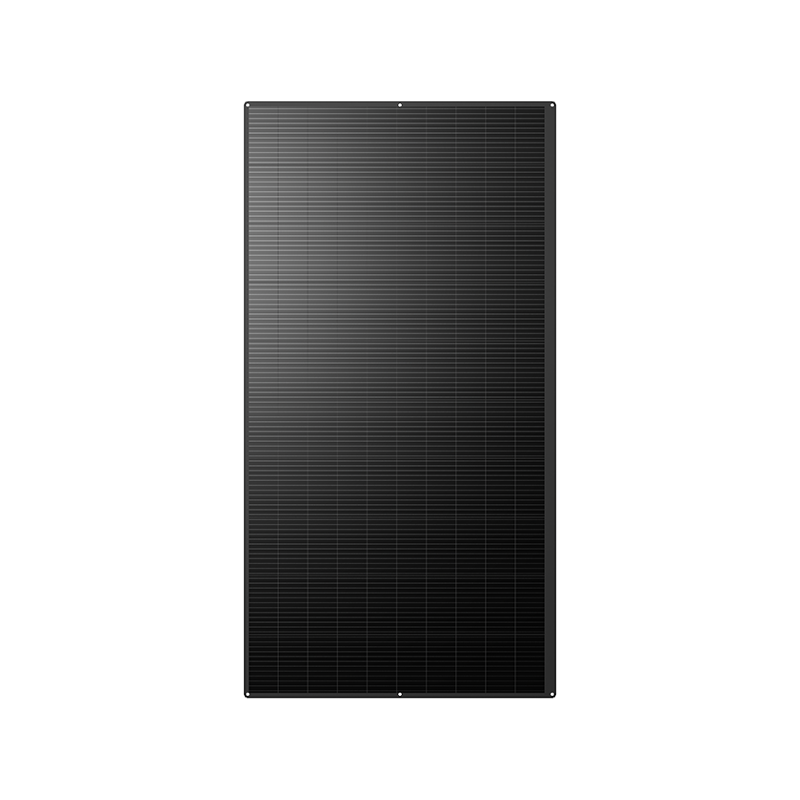

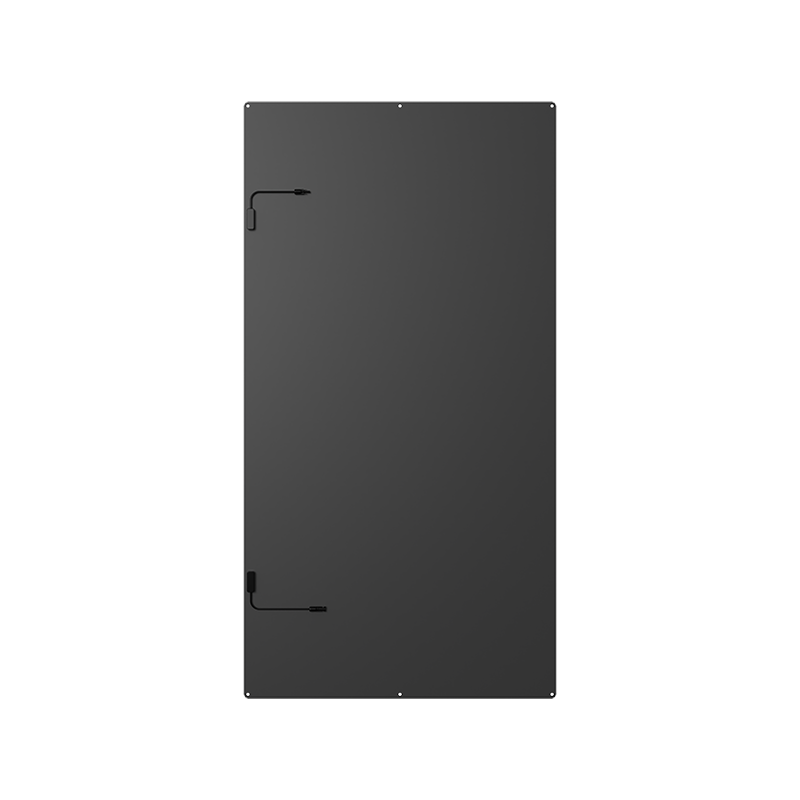

The 500W High-Power Flexible Solar Panel provides maximum energy generation in a lightweight, bendable form factor. With a 2.5mm ultra-thin design and 3.63kg/m² weight, this panel is engineered for portable and mobile applications. Certified to CE and RoHS, it withstands extreme climates ranging from -40°C to +85°C, delivering reliable performance in outdoor and off-grid environments.
|
ELECTRICAL DATA |
|
|
Model Type |
YH500W-50M |
|
Peak Power(Pmax) |
500 |
|
Maximum Power Voltage(Vmp) |
56.31V |
|
Maximum Power Current(Imp) |
8.88A |
|
Open Circuit Voltage(Voc) |
66.39V |
|
Short Circuit Current(lsc) |
9.39A |
|
Module Efficiency(%) |
2021 |
|
*STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25℃ |
|
|
THERMAL CHARACTERISTICS & OPERATING CONDITIONS |
|
|
Maximum System Voltage(V) |
1500 |
|
Maximum Series Fuse Rating(A) |
15 |
|
Power Tolerance |
0~+3% |
|
Pmax Temperature Coefficients(W/℃) |
-0.400% |
|
Voc Temperature Coefficients(V/℃) |
-0.330% |
|
Isc Temperature Coefficients(A/℃) |
+0.048% |
|
NOCT Nominal Operating CellTemperature(℃) |
45±2 |
|
Operating and Storage Temperature(℃) |
-40~+85 |
|
MECHANICAL CHARACTERISTICS |
|
|
Cell Type |
210*105Mono |
|
No. of Cells |
100(10*10) |
|
Dimensions |
2190*1130*3mm |
|
Weight |
9.03kg |
|
Junction box |
IP65/IP67 |
|
Output cables |
4mm² cable90cm+mc4 |
|
MaxWind Load/Snow Load |
2400Pa/5400Pa |
