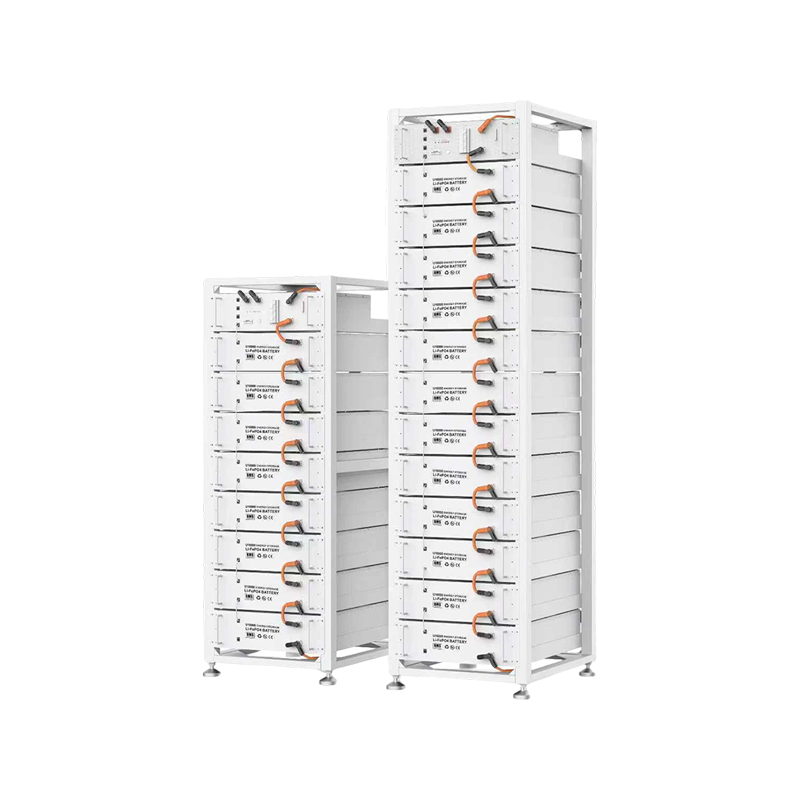

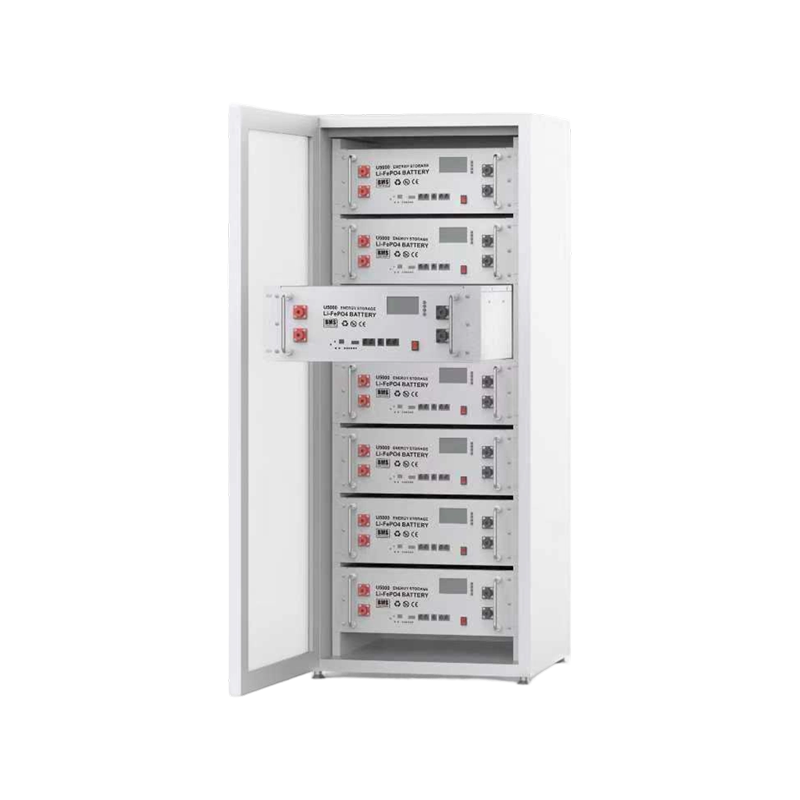

SMP-MU High-Voltage Rack Energy Storage System for Grid Applications

SMP-MU High-Voltage Rack Energy Storage System for Grid Applications

Key Features and Applications

1. Modular and Scalable:
• Allows flexible capacity expansion by connecting multiple units in parallel.
• Supports up to 15 battery racks, accommodating larger households or solar PV systems.

2. Long-Term Reliability:
• Uses all-new Grade A LFP battery cells with excellent cycle life and stable performance.
• Ensures consistent energy output for daily charge and discharge operations.

3. High Safety Standards:
• LFP battery chemistry provides strong thermal and chemical stability.
• Built-in Battery Management System (BMS) continuously monitors voltage, current, and temperature, automatically protecting against abnormal conditions.

APPLICATION SCENARIOS
  • Residential Solar Storage: Ideal for households with photovoltaic panels to store excess energy.
  • Backup Power: Provides reliable power supply during grid outages.
  • Energy Optimization: Supports energy self-consumption strategies and enhances household energy efficiency.
  • Small Residential Buildings: Suitable for villas, townhouses, and multi-unit buildings requiring scalable, high-voltage energy storage.
  • SMP-MU High-Voltage Rack Energy Storage System for Grid Applications
  • SMP-MU High-Voltage Rack Energy Storage System for Grid Applications
INSTALLATION AND COMPATIBILITY

1. Rack-Mounted Design:
• Optimizes indoor space utilization for homes and small residential buildings.
• Simplifies installation, maintenance, and integration with solar energy systems.

2. Flexible Voltage Options:
• Available in both high-voltage and low-voltage configurations.
• Compatible with a variety of residential inverters and energy management platforms.

3. Parallel Operation Capability:
• Up to 15 units can be connected in parallel.
• Provides extended backup power duration and improved energy self-consumption.

4. Smart Energy Management:
• Supports seamless integration with grid-connected energy storage systems.
• Enables optimized daily energy usage and efficient solar energy storage.

Contact Us
Product Details

The SMP-MU High-Voltage Rack Energy Storage System is a modular, high-capacity energy storage unit designed for residential and small-scale commercial applications requiring grid-connected power management. Its standardized rack-mounted architecture enables efficient use of indoor space, structured system integration, and simplified installation. The system supports flexible capacity expansion, making it suitable for households and residential buildings with varying energy demands.

Equipped with Grade A LiFePO4 (LFP) battery cells, the system achieves up to 6,000 cycles, ensuring reliable long-term operation and consistent performance. The high thermal stability and safety features of LFP chemistry allow secure operation in indoor environments such as garages, utility rooms, or dedicated energy storage areas. Both high-voltage and low-voltage configurations are available, supporting a wide range of residential inverters and enabling parallel operation of up to 15 units. This provides scalable energy capacity for enhanced backup power, increased self-consumption, and optimized solar energy utilization. The system meets FCC, CE, UN38.3, and MSDS standards, guaranteeing compliance and safe deployment globally.

Model

SMP-MU001

SMP-MU002

SMP-MU003

Battery

Standard Voltoge

51.2V

51.2V

102.4V

Norminal Copacity

100Ah

200Ah

50Ah

Rated Energy

5.12KWh

10.24kWh

5.12kWh

Max Charge-Discharge
Rate

100A

100A

50A

Product Dimenston

421*480*165 mm

770*565*165mm

421*480*180
mm

Packoge Dimenstion

545*510*300mm

900*620*385mm

545*510*300
mm

Net Weight

41kg

78kg

41kg

Cycle Life

≥6000@25℃,80%DOD

Stacking Parameters

Max Stacking Quantity

8 PCS

12 PCS

8PCS

12PCS

6 PCS

Standard Voltoge

409.6V

614.4V

409.6V

614.4V

614.4V

Working Voltage

345.6-460.8V

518.4~691.2V

345.6-460.8V

518.4~691.2V

518.4-691.2V

Rated Energy

40.96kWh

61.44kWh

81.92kWh

122.88kWh

30.72kWh

Packoge Dimension of
the Shelf

518*546*1835
mm

518*546*2415
mm

789*626*1729
mm

789*626*2415
mm

518*546*1835
mm

Cabinet Weight

57kg

80kg

73kg

94.5kg

57kg

    General Parameters

PRoting

IP20

Installation

Cabinet

Communication

CAN/RS485/WiFi(Optional)

Working Temperature

0-55℃

Storage Temperature

-20-55℃

Humidity

≤80%

20GP Container

BAT 324/PDU 27PCS

BAT 108/PDU 9PCS

BAT 306PCS

PDU 51PCS

40HQ Container

BAT 516/PDU 43PCS

BAT 216/PDU 18PCS

BAT 486PCS

PDU 81PCS
