Maximum bendability allows the panel to conform to curved surfaces without compromising electrical performance. The reinforced structure is built with 9 layers of top-grade materials, improving durability, flexibility retention, and resistance to mechanical stress.
High light transmittance and optimized cell layout support increased solar energy capture throughout the day. The lightweight design significantly reduces installation load, making it suitable for structures with limited bearing capacity.
Pre-drilled mounting holes ensure easy and secure installation, reducing setup time and enabling flexible layout options for various solar system designs.

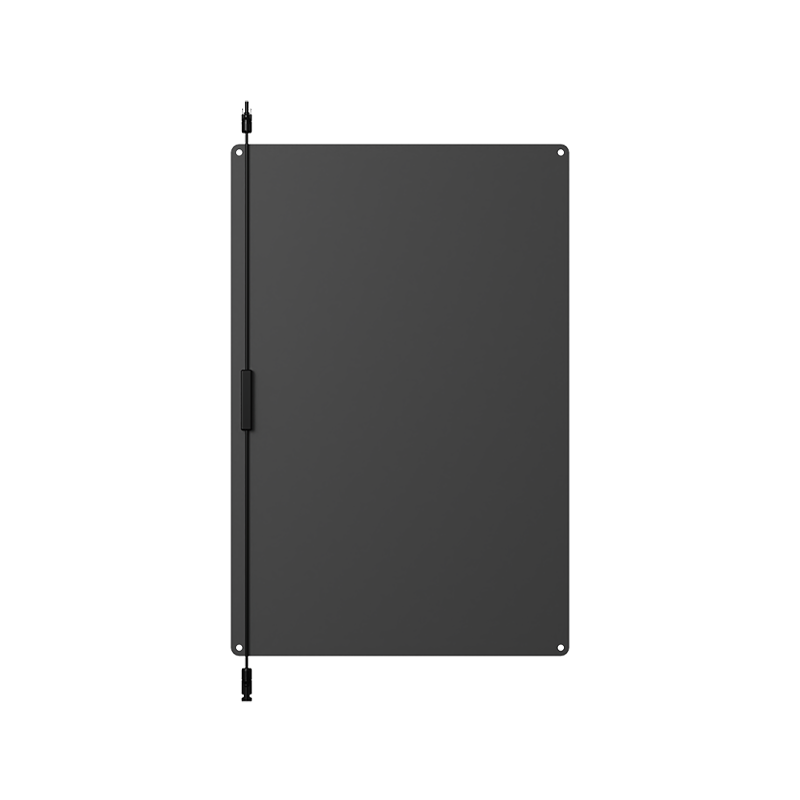

Flexible Solar Panels ranging from 100W to 500W are designed for lightweight, adaptable solar power generation where traditional rigid panels are not suitable. With a thickness of only 2.5mm and a weight of approximately 3.63kg/m², these modules provide an efficient energy solution for curved, uneven, or mobile surfaces.
The panels feature 95% light transmittance and enhanced sunlight absorption, allowing stable power output under standard test conditions (STC: irradiance 1000 W/m², AM 1.5G, cell temperature 25°C). Certified to CE and RoHS standards, they meet international requirements for safety, environmental compliance, and long-term outdoor use.
Operating and storage temperature ranges from -40°C to +85°C, enabling reliable performance in extreme climates such as coastal areas, deserts, and high-altitude environments.
|
ELECTRICAL DATA |
|||
|
Model Type |
YH100W-10M |
||
|
Peak Power(Pmax) |
100 |
||
|
Maximum Power Voltage(Vmp) |
11.27V |
||
|
Maximum Power Curren(Imp) |
8.88A |
||
|
Open Circuit Voltage(Voc) |
13.29V |
||
|
Short Circuit Current(Isc) |
9.39A |
||
|
Module Efficiency(%) |
18.47 |
||
|
*STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25℃ |
|||
|
THERMAL CHARACTERISTICS & OPERATING CONDITIONS |
|||
|
Maximum System Voltage(V) |
1000 |
||
|
Maximum Series Fuse Rating(A) |
10 |
||
|
Power Tolerance |
0~+3% |
||
|
Pmax Temperature Coefficients(W/℃) |
-0.400% |
||
|
Voc Temperature Coefficients(V/℃) |
-0.330% |
||
|
Isc Temperature Coefficients(A/℃) |
+0.048% |
||
|
NOCT Nominal Operating Cell Temperature(℃) |
45±2 |
||
|
Operating and Storage Temperature(℃) |
-40~+85 |
||
|
MECHANICAL CHARACTERISTICS |
|||
|
Cell Type |
210*105Mono |
||
|
No. of Cells |
20(4*5) |
||
|
Dimensions |
900*595*3mm |
||
|
Weight |
1.98kg |
||
|
Junction box |
IP65/IP67 |
||
|
Output cables |
2.5mm² cables50cm+mc4 |
||
|
MaxWind Load/Snow Load |
2400Pa/5400Pa |
||

Flexible Solar Panels are widely used in RVs, boats, yachts, balcony solar systems, curved rooftops, tents, mobile power units, and off-grid energy systems. They are well-suited for portable solar solutions, temporary installations, and space-constrained environments.
