The floor-standing structure enables flexible placement without wall mounting, making it suitable for homes with limited wall space.
The all-in-one version integrates the inverter and battery system into a single unit, improving system compatibility and reducing wiring complexity.

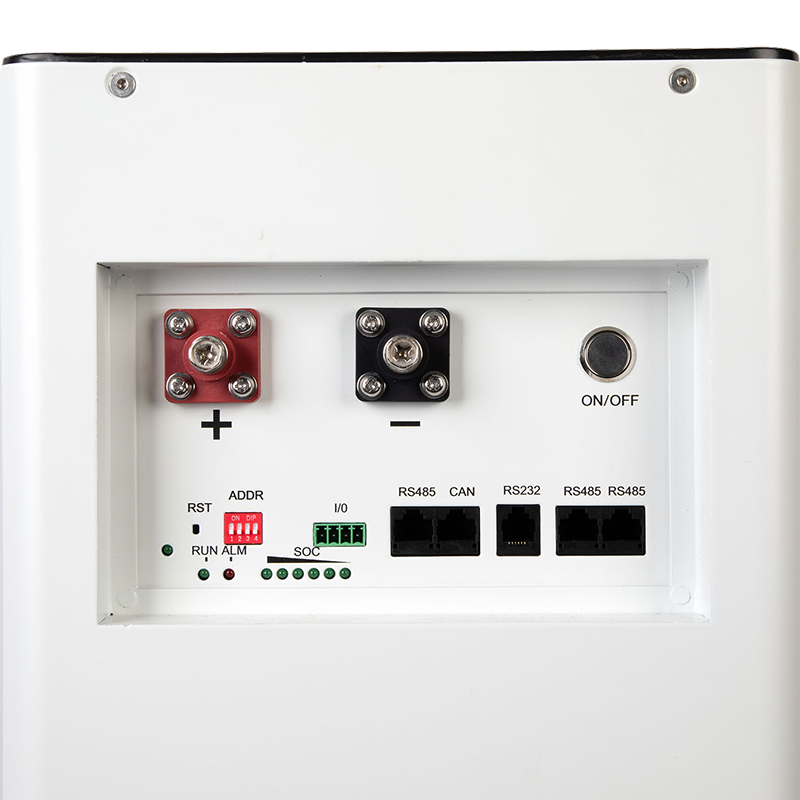

A built-in BMS protection system continuously monitors voltage, current, temperature, and battery status, providing automatic protection under abnormal conditions.

Combined with LFP battery technology, this ensures a high level of operational safety.
Parallel scalability allows homeowners to tailor system capacity for backup power, self-consumption optimization, or daily energy management.

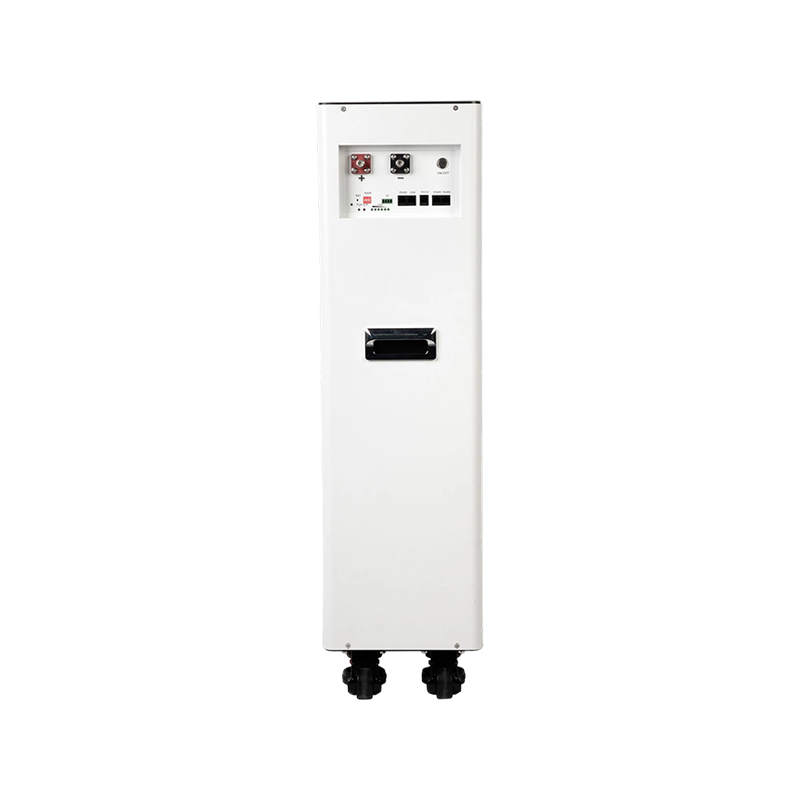

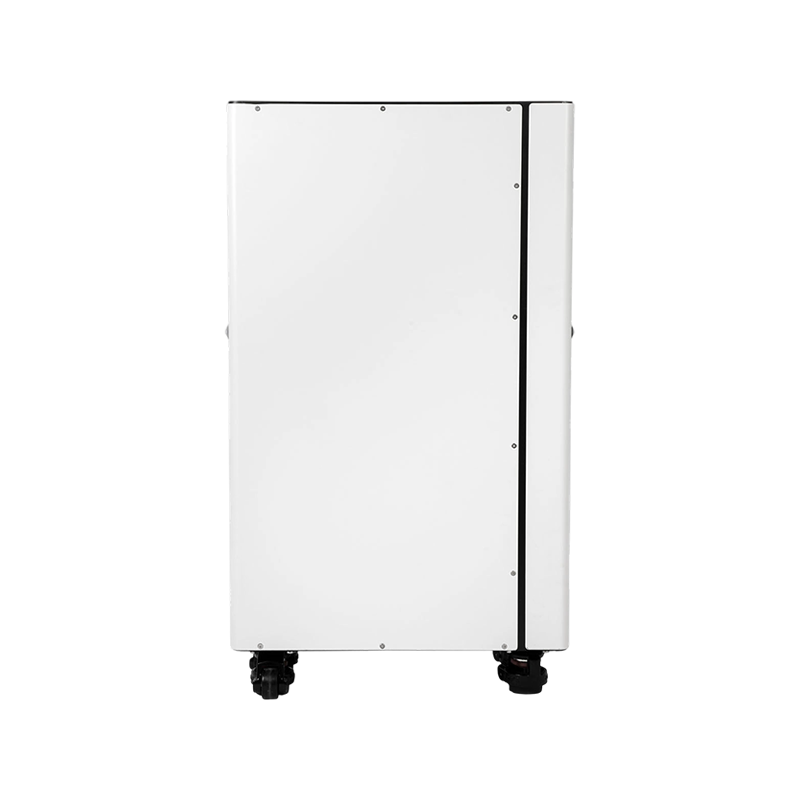

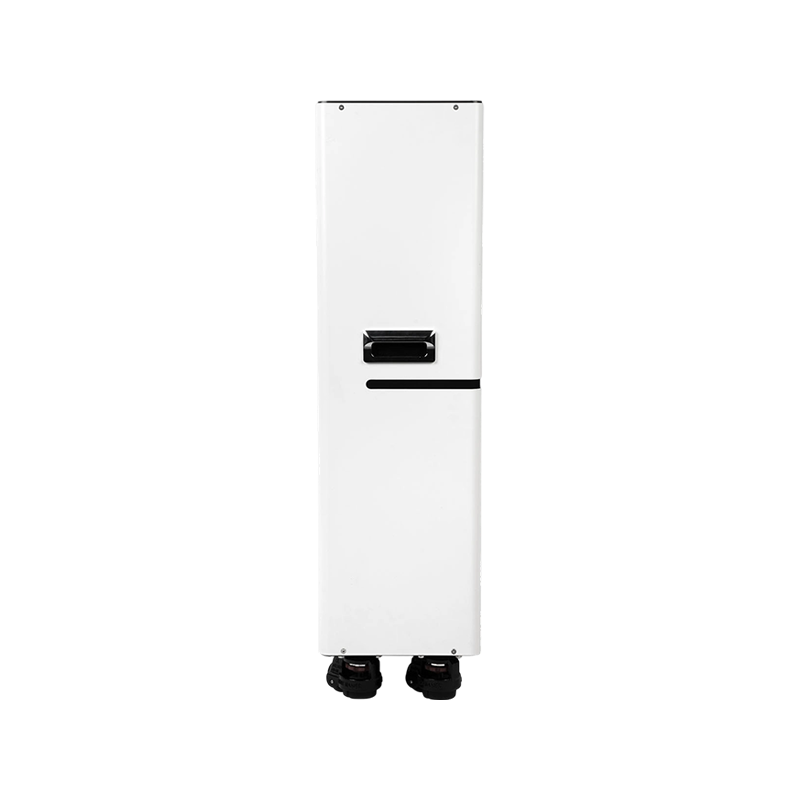

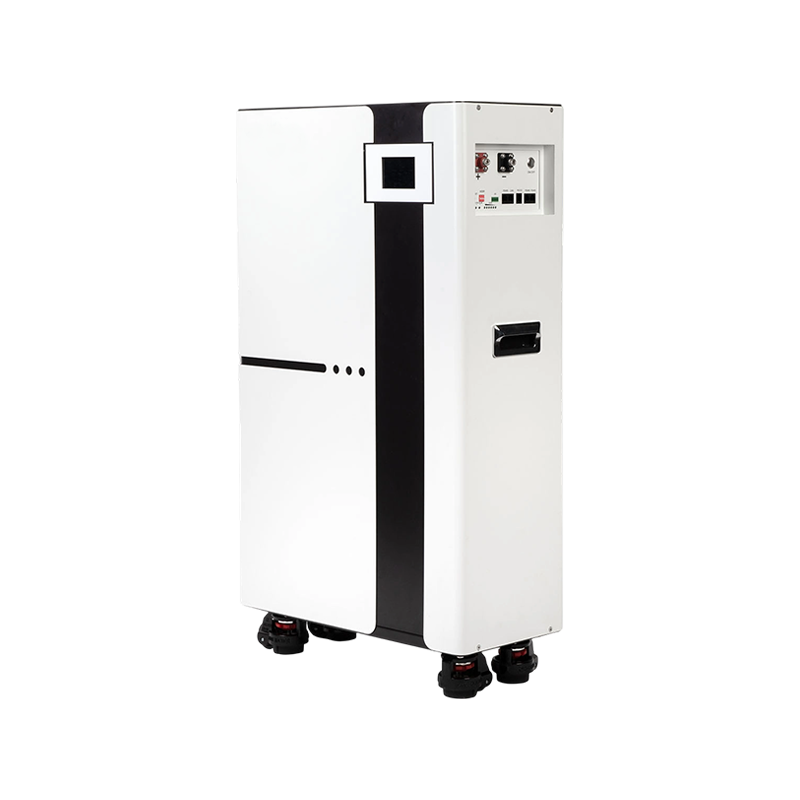

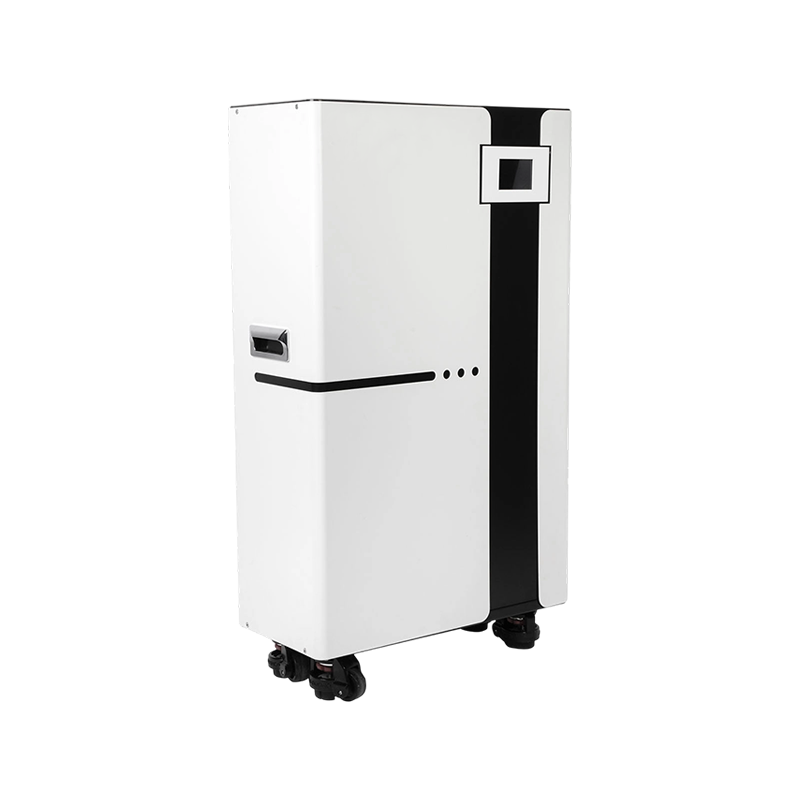

The Floor Standing Energy Storage System is a residential energy storage solution designed for flexible indoor deployment and stable home energy management. Available in both standard and all-in-one configurations, the system meets different installation and integration preferences. The all-in-one version integrates the inverter within the cabinet, simplifying system architecture and reducing installation complexity. The system is built with all-new Grade A LFP battery cells, delivering up to 6000 charge and discharge cycles for long-term residential use. LFP battery chemistry provides strong thermal stability and consistent performance, supporting daily energy storage requirements. With an IP20 protection rating, the system is optimized for indoor environments such as garages, equipment rooms, and residential utility areas. Designed for adaptability, the system supports parallel operation of up to 15 battery units, allowing users to expand energy capacity according to household demand or solar system growth. The operating design supports a wide storage temperature range from –20°C to +55°C, ensuring stable performance under varied environmental conditions. The product complies with FCC, CE, UN38.3, and MSDS standards, supporting residential deployment across multiple regions.
|
Model |
SMP-BU005 |
SMP-BU008 |
SMP-BU009 |
|
Battery |
|||
|
Standard Voltage |
51.2VDC |
||
|
Voltage Range |
43.2~57.6VDC |
||
|
Norminal Capacity |
314Ah |
350Ah |
560Ah |
|
Rated Energy |
16.08kWh |
17.92kWh |
28.672kWh |
|
Communication |
CAN/RS485/RS232/WIFI/Bluetooth |
||
|
Cell Self-Discharge |
<5%/Month |
||
|
Modules Connection |
1~15 in Parallel |
||
|
DOD |
90% |
||
|
Cycle Life |
≥6000@25℃,80%DOD |
||
|
Max Charge&DischargeCurrent |
200A |
||
|
IP Reting |
IP20 |
||
|
Installation |
Floor Standing |
||
|
Working Temperature |
0~55℃ |
||
|
Storage Temperature |
-20~55℃ |
||
|
Humidity |
≤80% |
||
|
Product Dimension |
850*550*250mm |
1000*551*240mm |
1106*750*280mm |
|
Package Dimension |
1000*630*470mm |
105*655*465mm |
1290*850*500mm |
|
Net Weight |
130kg |
136kg |
245kg |
|
20GP Container |
110PCS |
80PCS |
40PCS |
|
40HQ Container |
220PCS |
170PCS |
85PCS |
