Portable and lightweight for easy transport to remote locations.
Flexible design adapts to curved and uneven surfaces.
Durable multi-layer construction ensures long-term outdoor reliability.
Enhanced sunlight capture with 95% light transmittance and optimized cell layout.
Pre-drilled mounting points allow quick installation.
Stable power generation under standard test conditions (STC).

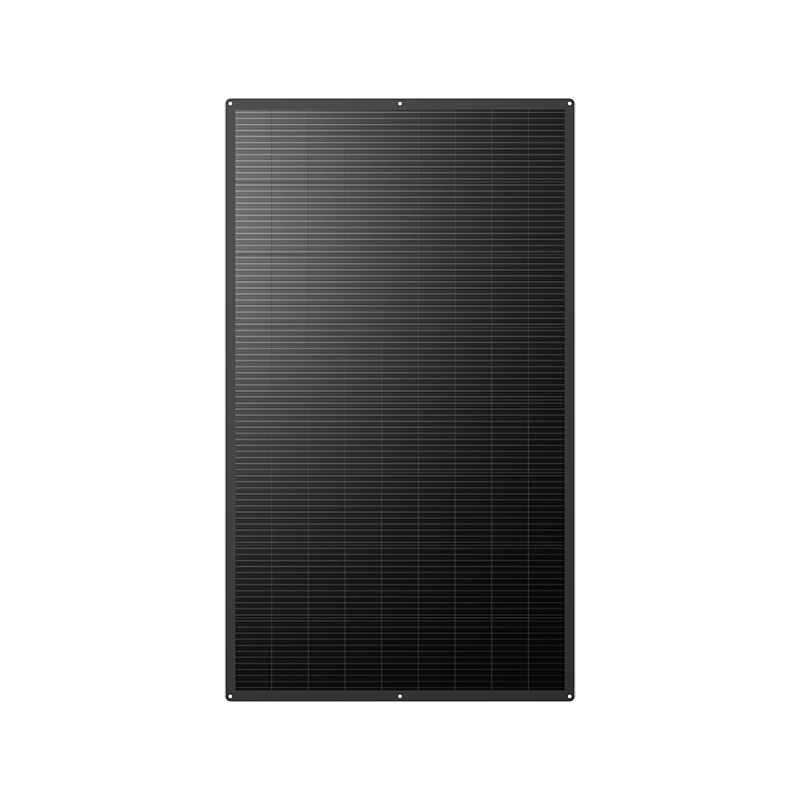

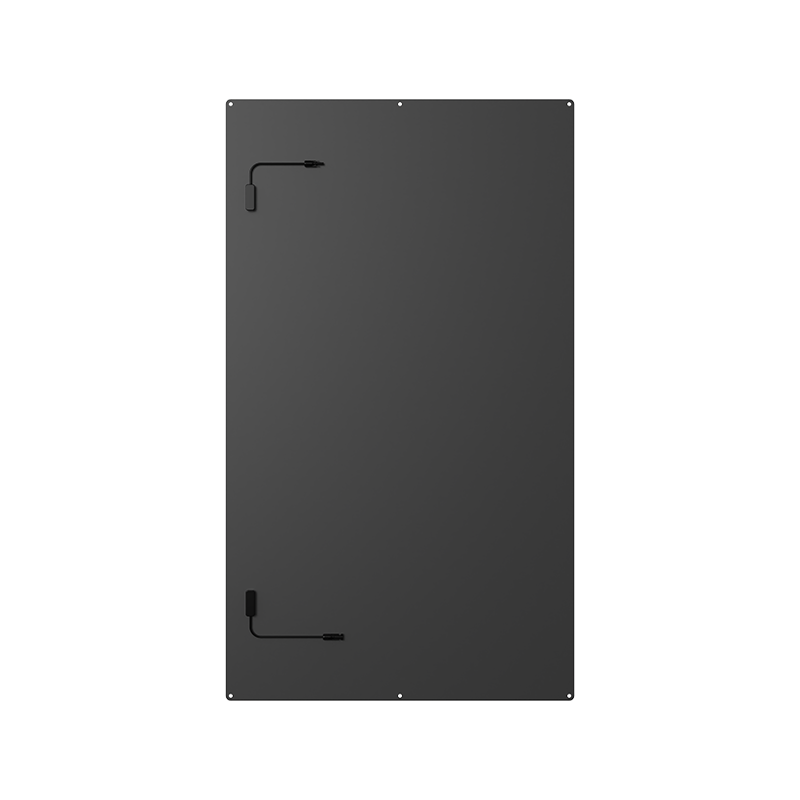

The 350W Portable Flexible Solar Panel is engineered for outdoor enthusiasts needing compact, high-efficiency solar power. Weighing only 3.63kg/m² and 2.5mm thick, it provides stable energy output on tents, RVs, or boats. Certified to CE and RoHS, this panel supports reliable performance in harsh climates from -40°C to +85°C.
|
ELECTRICAL DATA |
||
|
Model Type |
YH350W-36M |
|
|
Peak Power(Pmax) |
350 |
|
|
Maximum Power Voltage(Vmp) |
40.1V |
|
|
Maximum Power Curren(Imp) |
8.73A |
|
|
Open Circuit Voltage(Voc) |
47.51V |
|
|
Short Circuit Current(Isc) |
925A |
|
|
Module Efficiency(%) |
19.5 |
|
|
*STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25℃ |
||
|
THERMAL CHARACTERISTICS & OPERATING CONDITIONS |
||
|
Maximum System Voltage(V) |
1500 |
|
|
Maximum Series Fuse Rating(A) |
15 |
|
|
Power Tolerance |
0~+3% |
|
|
Pmax Temperature Coefficients(W/℃) |
-0.400% |
|
|
Voc Temperature Coefficients(V/℃) |
-0.330% |
|
|
Isc Temperature Coefficients(A/℃) |
+0.048% |
|
|
NOCT Nominal Operating CellTemperature(℃) |
45±2 |
|
|
Operating and Storage Temperature(℃) |
-40~+85 |
|
|
MECHANICAL CHARACTERISTICS |
||
|
Cell Type |
210*105Mono |
|
|
No. of Cells |
72(8*9) |
|
|
Dimensions |
1760*1020*3mm |
|
|
Weight |
6.55kg |
|
|
Junction box |
IP65/IP67 |
|
|
Output cables |
4mm² cable 90cm +mc4 |
|
|
MaxWind Load/Snow Load |
2400Pa/5400Pa |
|
