High-efficiency panels maximize energy output in limited space.
Lightweight and compact design fits balconies and terraces.
Simple installation with plug-and-play setup.
Durable construction suitable for outdoor use.



Power Output: 400W supports small household devices, lights, and electronics.
Frame Material: Aluminum frame with tempered glass for protection.
Plug-and-Play Connectivity: Easily connects to inverters or portable power stations.
Weather Resistance: Panels withstand sun, rain, and dust.

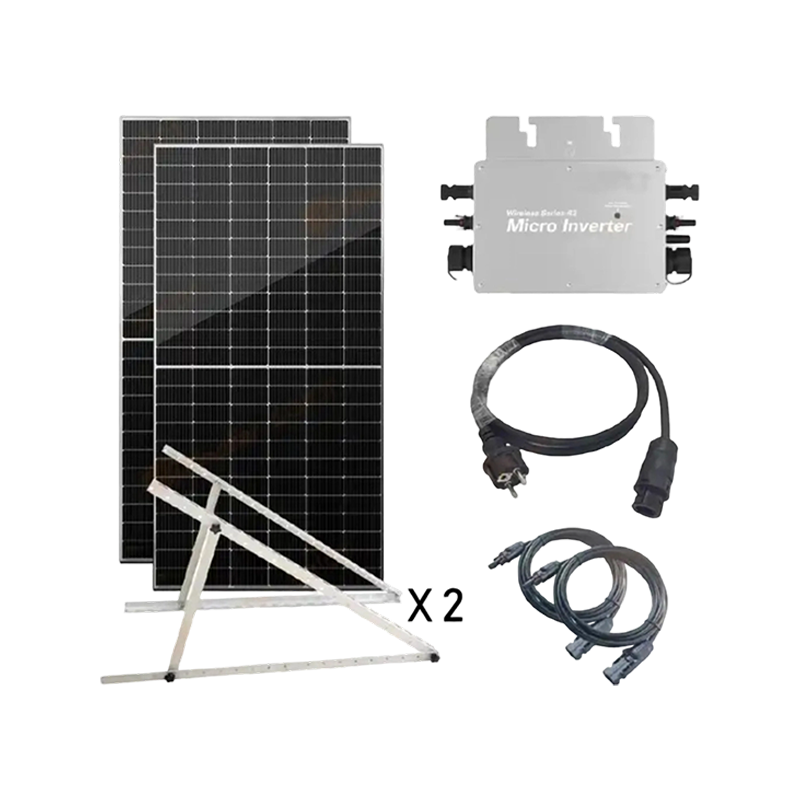

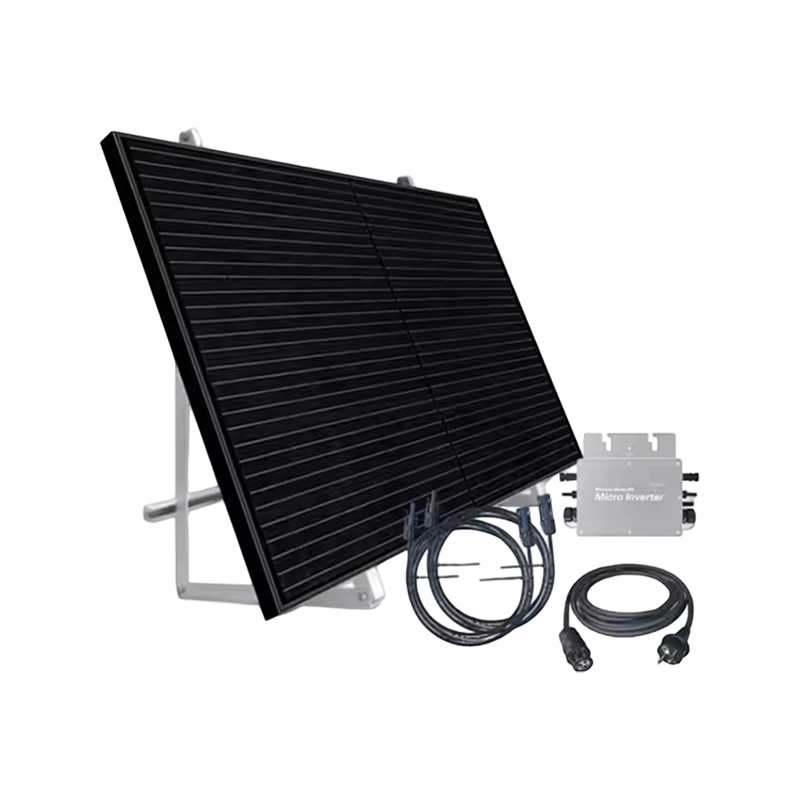

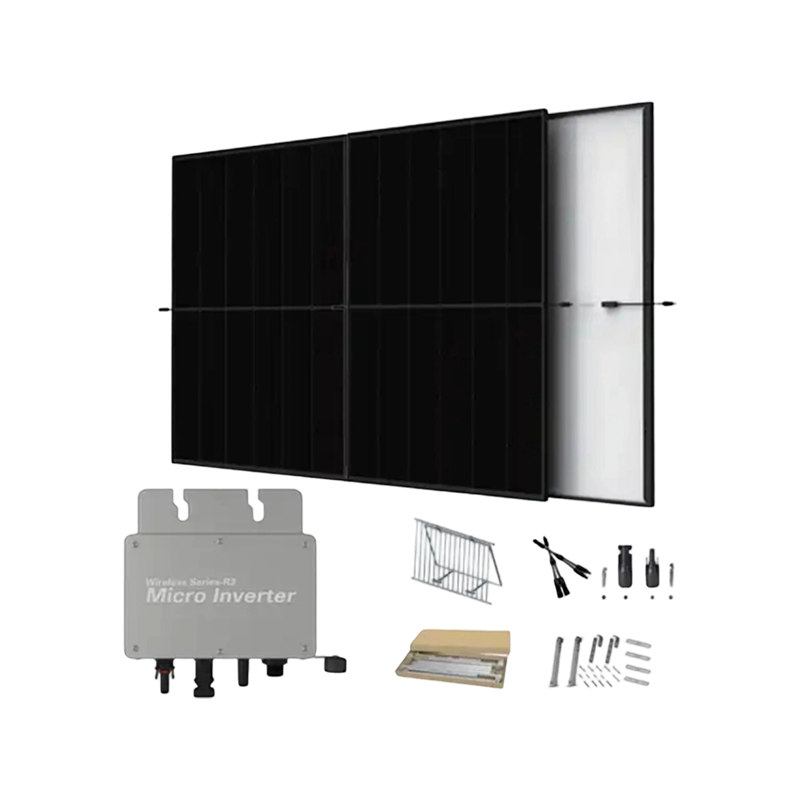

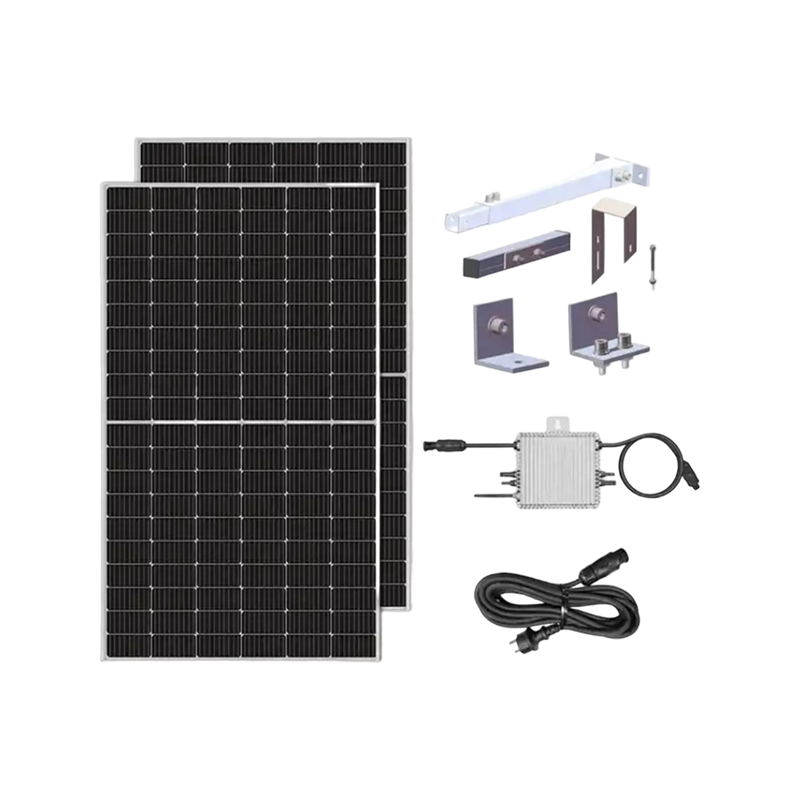

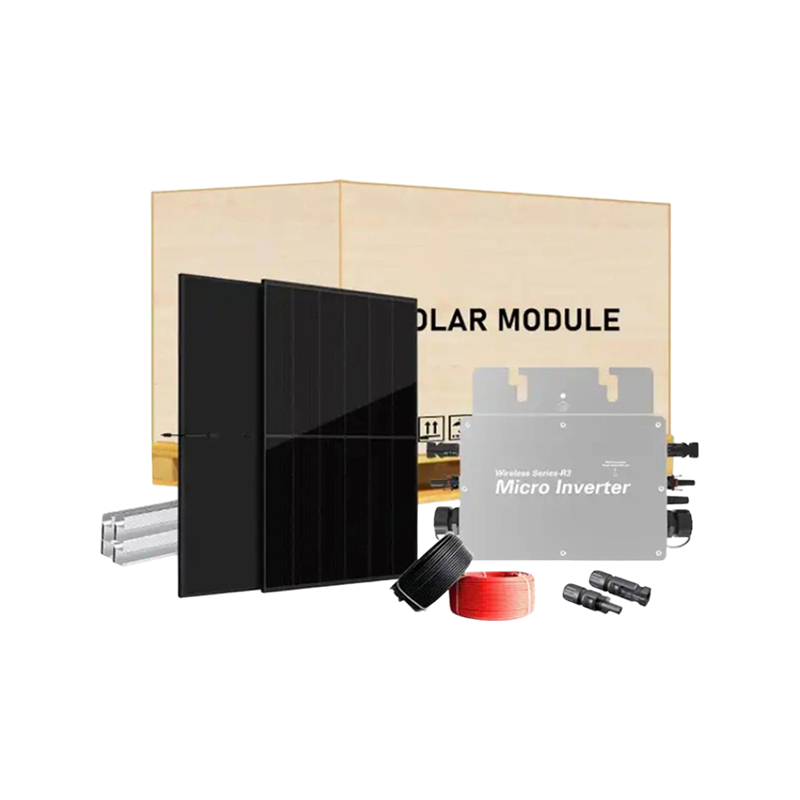

This 400W-1000W Balcony Solar Energy System, equipped with high-efficiency solar panels, is specifically designed for urban homes and small businesses, maximizing the use of balcony space to generate clean energy. The system utilizes cutting-edge photovoltaic technology, ensuring conversion efficiencies of up to 22% or higher, allowing it to generate more power in a smaller area to meet daily electricity demands. Whether powering household appliances or serving as a backup power source, it provides a stable and reliable power output.
Easy to install, the system is suitable for various balcony and rooftop structures and requires minimal space to operate efficiently. With weather-resistant features, it ensures stable performance in all weather conditions. The system includes a smart management interface for real-time monitoring of power generation and optimized energy usage. Energy-saving and eco-friendly, this balcony solar energy system not only reduces electricity costs but also contributes to environmental sustainability by lowering carbon emissions.
|

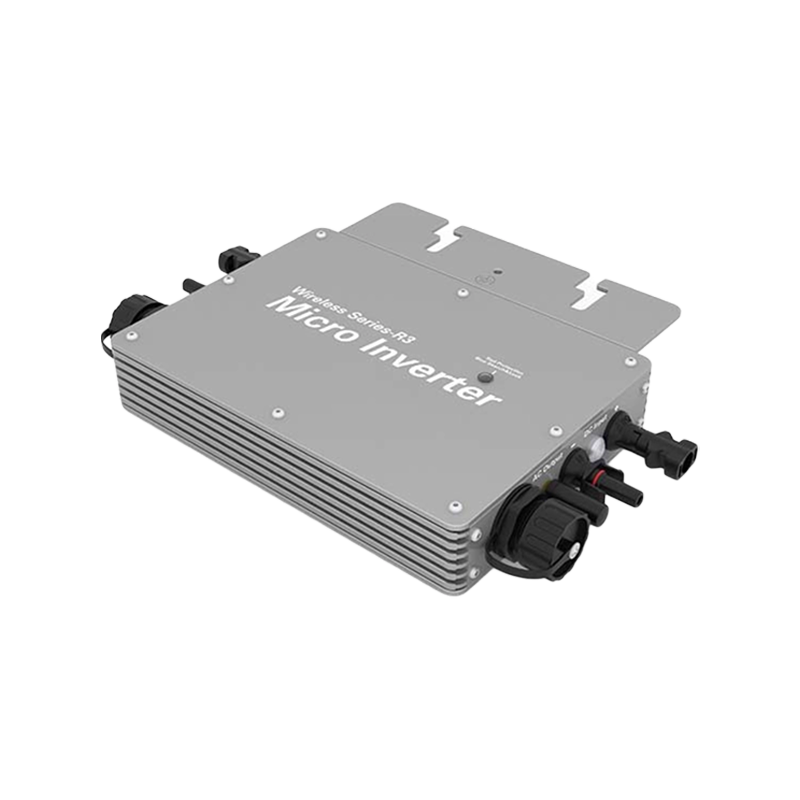

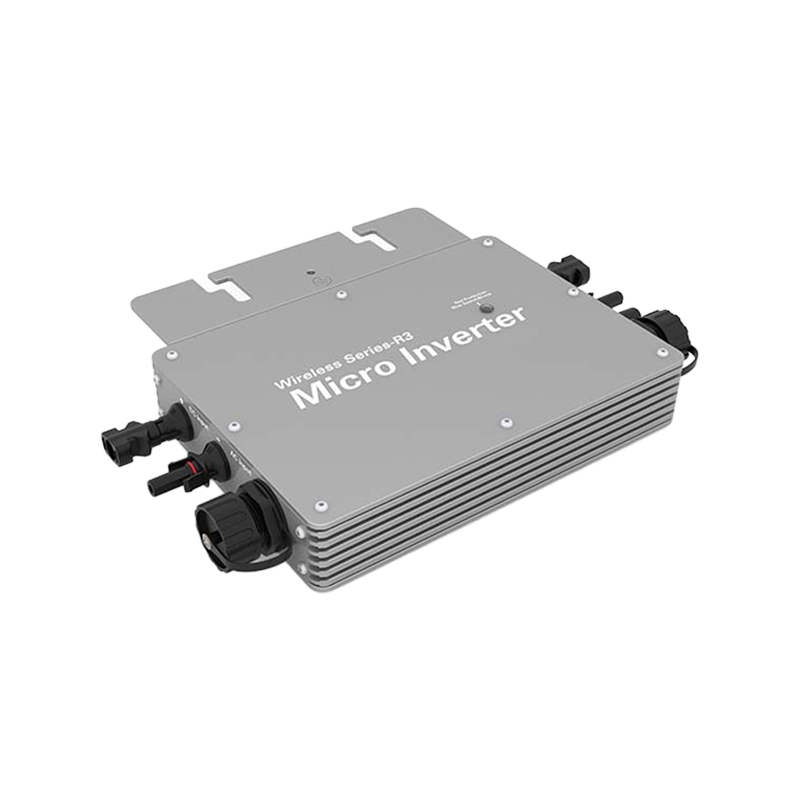

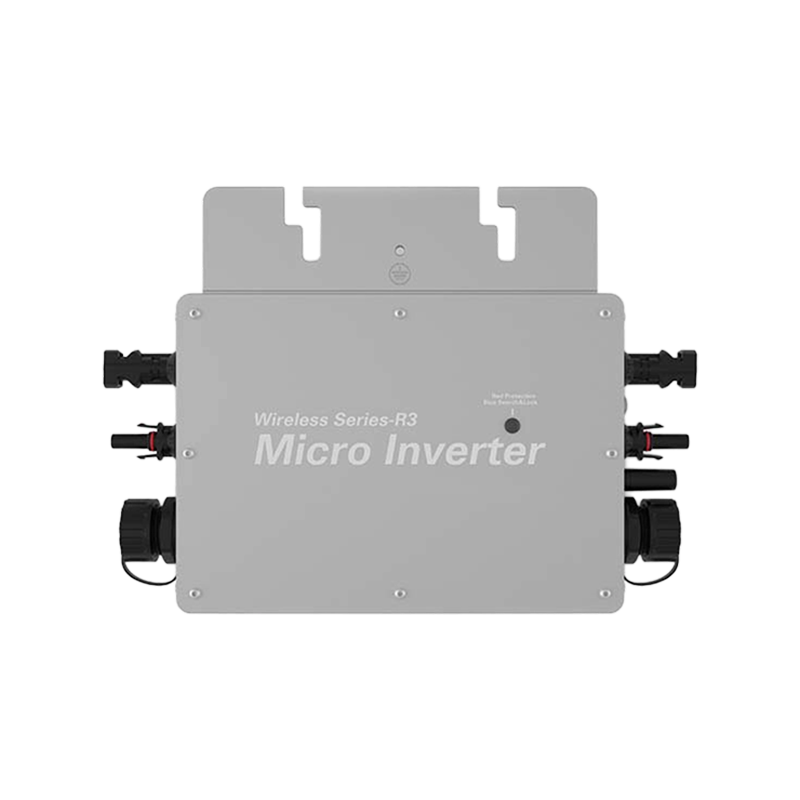

Micro Inverter |
300W |
350W |
400W |
600W |
700W |
800W |
|
Max input power |
Max 375W |
Max 435W |
Max 500W |
Max2*375W |
Max2*435W |
Max2*500W |
|
Output voltage mode |
120/230V Auto switch |
120/230VAuto switch |
||||
|
Operating voltage range |
22-60V |
22-60V |
||||
|
Maximum Output Power |
300VA |
350VA |
400VA |
600VA |
700VA |
800VA |
|
Rated Output current |
@120V 2.5A |
@120V 2.9A |
@120V 3.3A |
@120V5A |
@120V5.9A |
@120V 6.6A |
|
Nominal Frequency Range |
50Hz/60Hz |
|||||
|
MPPT Voltage Range(Module Open Circuit Voltage) |
30-60V |
|||||
|
Number of branch connections |
@120V 15 PCs |
@120V 6PCs |
||||
|
Power factor |
>95% |
>95% |
||||
|
Static MPPT efficiency |
99.5% |
99.5% |
||||
|
Max output efficiency |
95% |
95% |
||||
|
Loss of power at night |
<0.5W |
<0.5W |
||||
|
Total current harmonics |
<5% |
<5% |
||||
|
Temperature range |
-40℃ to+65℃ |
-20℃ to+50℃ |
||||
|
Size (L*W*H) |
165mm*176mm*38mm |
283mm*200mm*41.6mm |
||||
|
Waterproof grade |
Ip65 NEMA3R |
|||||
|
Electromagnetic compatibility |
EN50081 part 1 EN50082 part1 CSA STD.C22.2 No.107.1 |
|||||
|
Power grid |
EN6100-3-2 EN6219.STD.1741 |
|||||
|
Communication Method |
WiFi |
|||||
