Extended lifespan: Up to 2500 cycles at partial depth of discharge.
High safety: Thermal and overcharge protections integrated.
Compact design: Optimized for installation in various low-speed EV models.
Fast recharge: Supports frequent usage without performance drop.



Nominal voltage: 60V; capacity: 100Ah.
Stable voltage output: Maintains consistent power under different load conditions.
Wide operating range: Suitable for temperatures from -20°C to 60°C.
Low maintenance: Sealed design prevents electrolyte leakage.

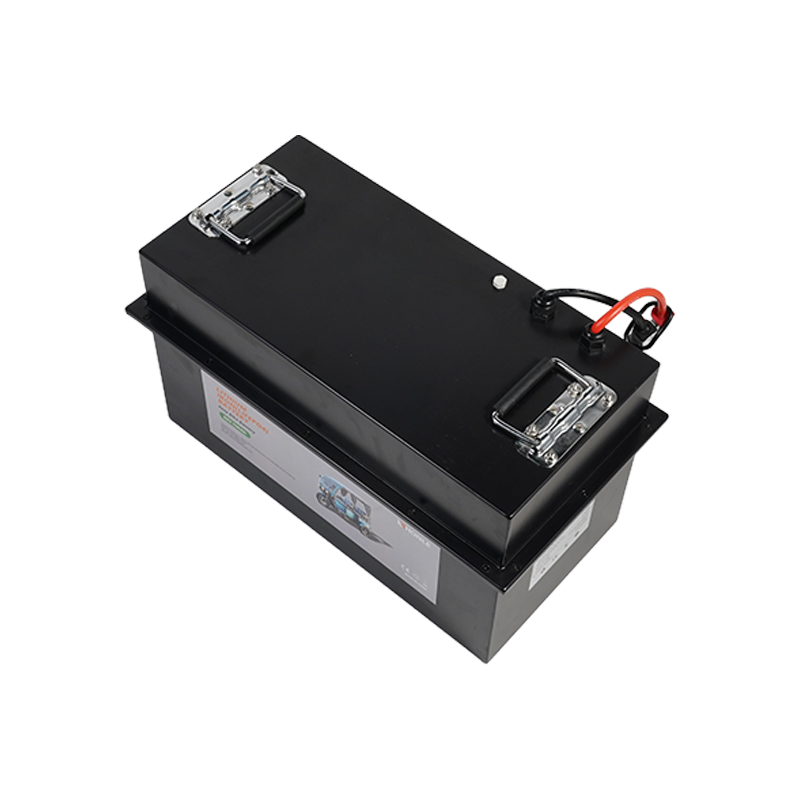

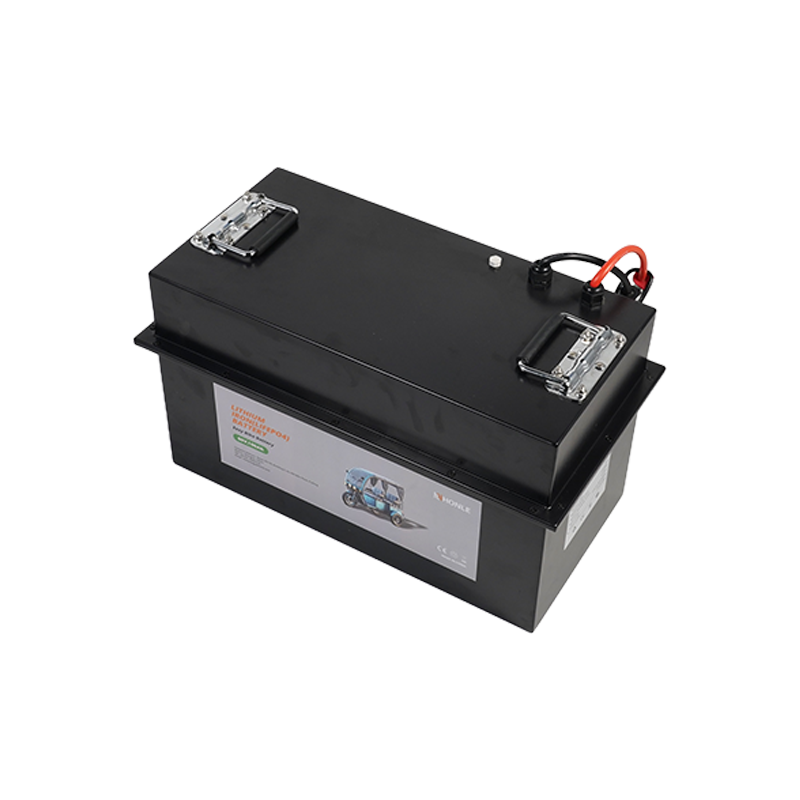

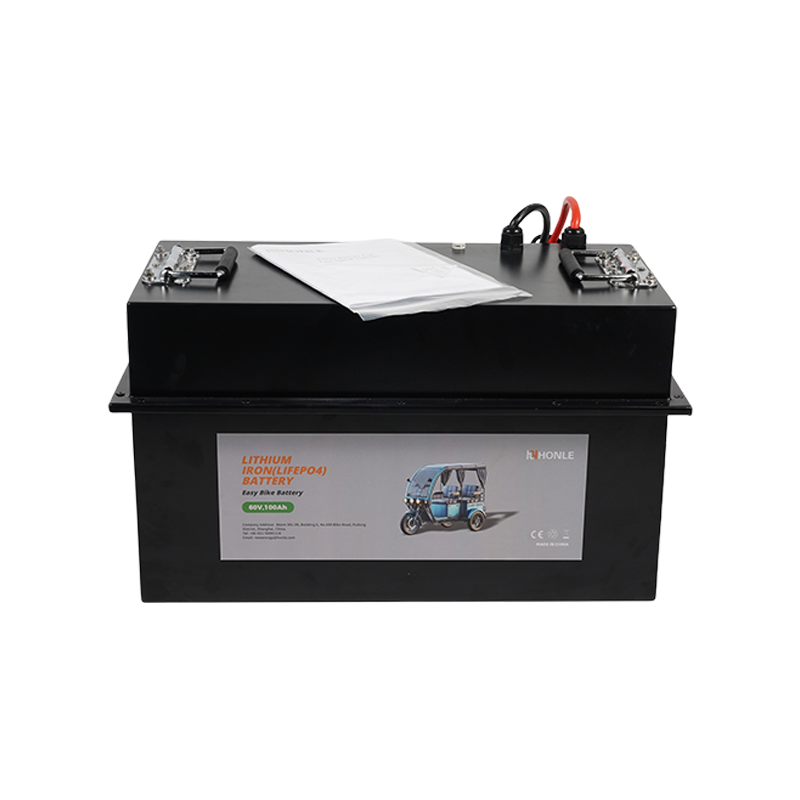

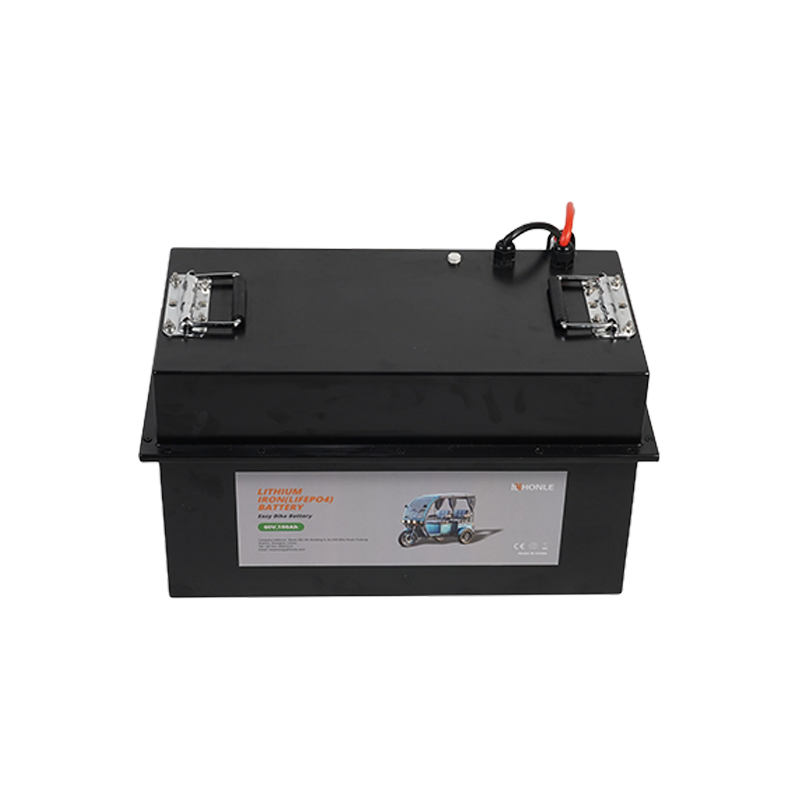

The 60V 100Ah Lithium Battery System provides powerful and consistent energy for low-speed electric vehicles and light mobility applications. Its LiFePO4 technology ensures durability, high efficiency, and long-term reliability for daily use in urban and light commercial transport.
|
Items |
Condition |
Specification |
|||
|
Nominal Capacity |
Standard |
52Ah |
100Ah |
100Ah |
|
|
Nominal Voltage |
Average |
48V |
48V |
60.8V |
|
|
Standard Charging Refer |
Constant current |
52A |
52A |
52A |
|
|
Charging Voltage |
/ |
54.75V |
54.75V |
69.35V |
|
|
Max.Continuous Charge |
25±3℃ |
52A |
104A |
104A |
|
|
Standard Discharging |
Constant current |
52A |
104A |
104A |
|
|
Max Continuous |
25±3℃ |
52A |
104A |
104A |
|
|
Nominal Energy |
25±3℃ |
2.4kWh |
4.8kWh |
6kWh |
|
|
Available Energy |
25±3℃ |
2.28kWh |
4.56kWh |
5.7kWh |
|
|
Operating |
Charge |
/ |
0℃~55℃ |
||
|
Discharge |
/ |
-30℃~55℃ |
|||
|
Storage Temperature |
/ |
-20℃~55℃ |
|||
|
Weight |
/ |
23.5KG |
38KG |
46.1KG |
|
