Stable operation under high temperatures, maintaining reliable three-phase output up to 45°C ambient.
Enhanced energy storage flexibility, compatible with AGM, Gel, and Lithium batteries.
Accurate reverse power management with anti-backflow detection under 20W.



Three-phase unbalanced support for better load balancing across industrial and commercial applications.
Multiple connectivity options including WiFi, GPRS, and LAN for remote monitoring and data analysis.
Integrated SML and DRED functions, ensuring demand response and grid interaction compliance.

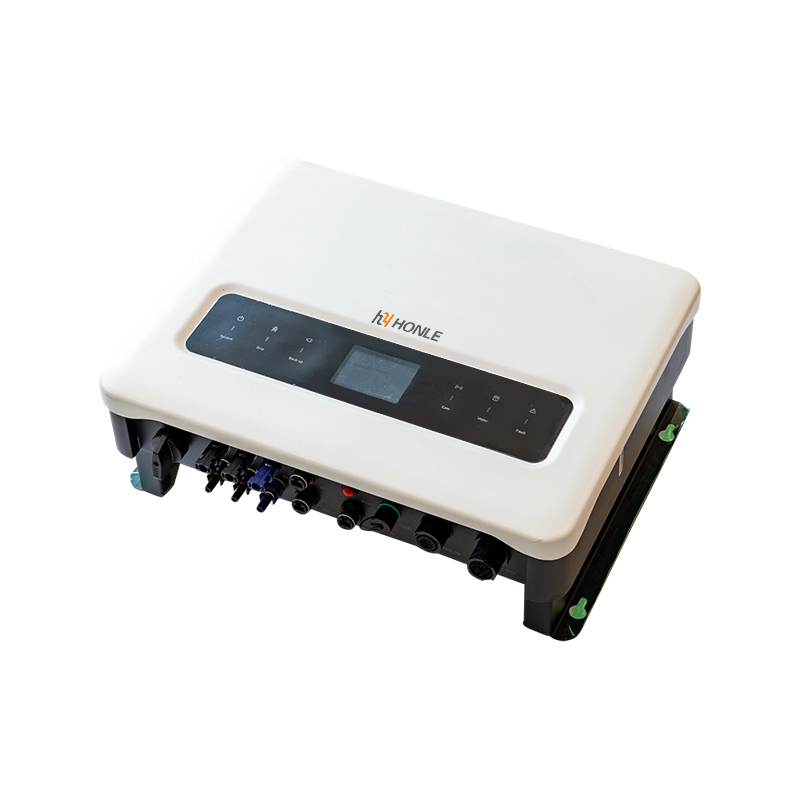

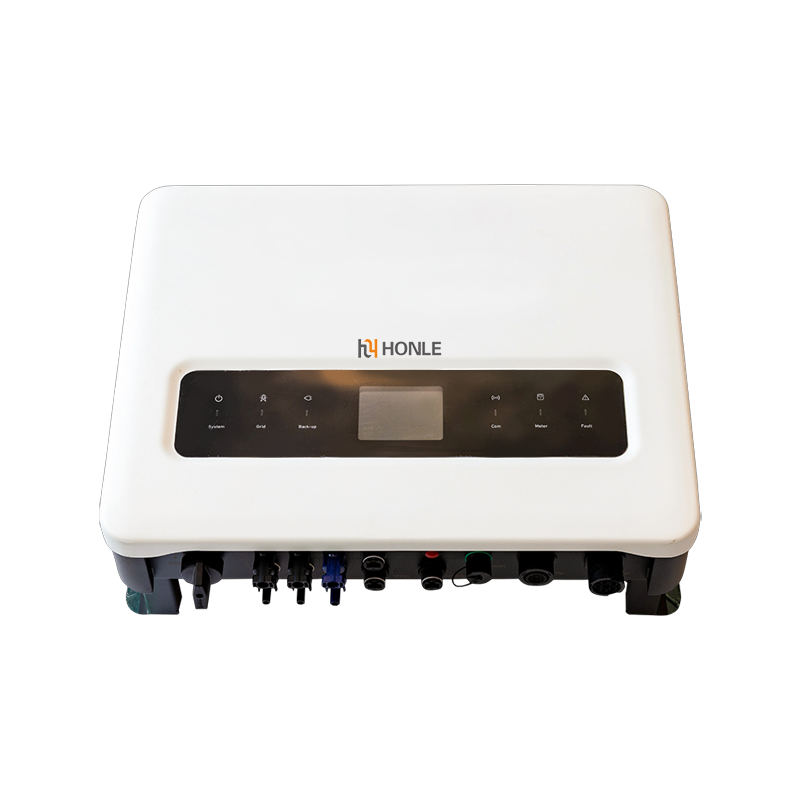

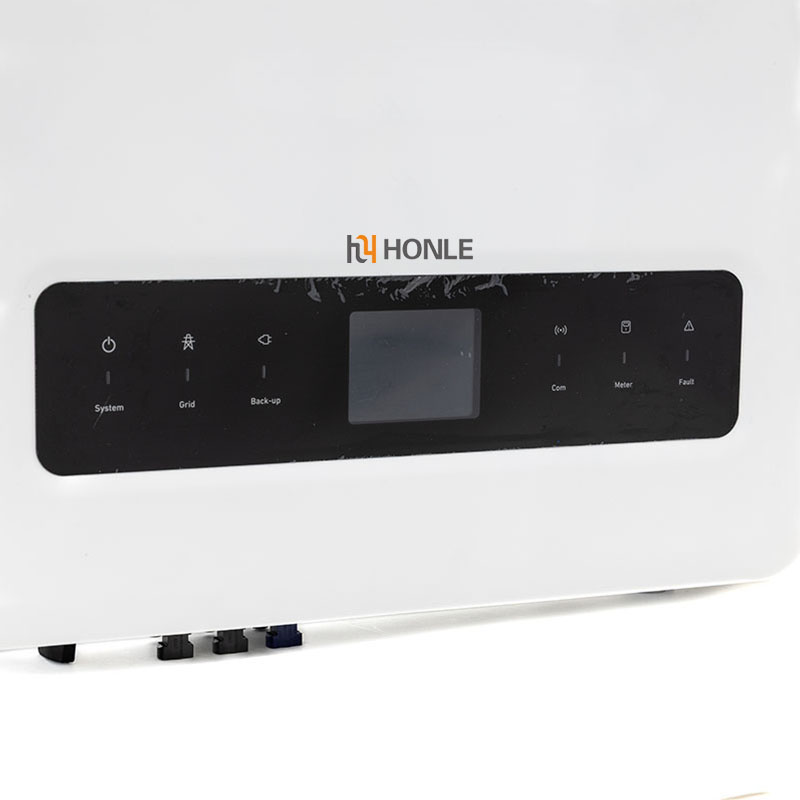

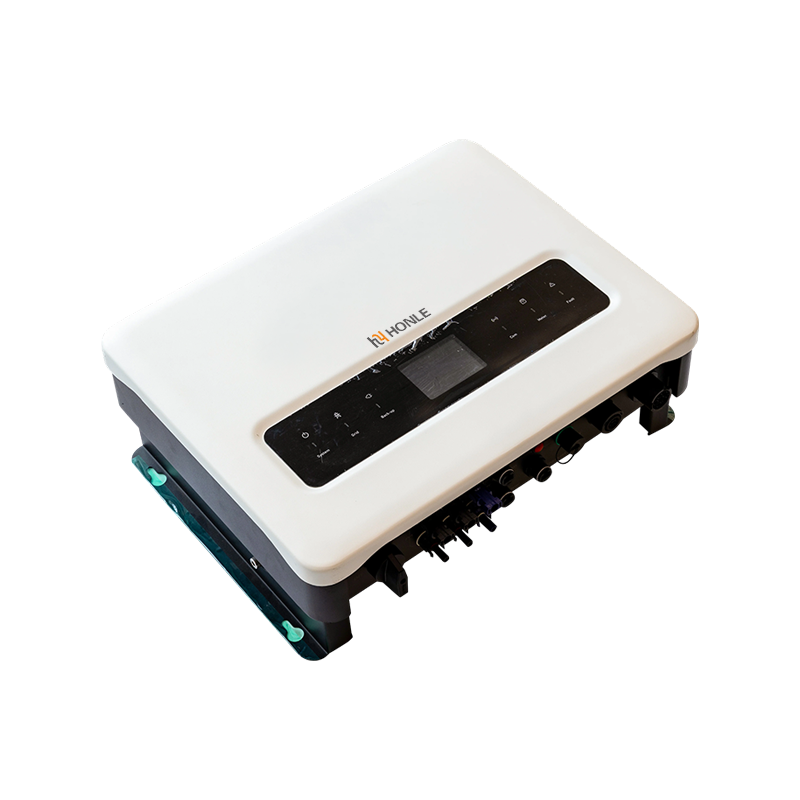

The EPH10KTL Three-Phase On/Off-Grid Hybrid Solar Inverter is engineered for distributed energy systems that demand highly flexible power control. It seamlessly integrates solar power, battery storage, and grid connectivity, enabling both on-grid export and off-grid autonomy. A user-friendly LCD display provides real-time system status, while the inverter supports power export limitation for regulatory compliance and optimized energy utilization.
| Model No |
EPH10KTL |
|
Input(DC) |
|
| Max DC power |
15000W |
| Max DC voltage |
1000Vd.c. |
| MPPT voltage range |
200.…850Vd.c. |
| Max input current/per string | |
| Max.input short circuit per MPPT | |
| Number of MPP trackers | |
|
Strings per MPP tracker |
|
|
Battery Input |
|
|
Battery Type |
Li-Ion |
|
Battery voltage range |
130-700V |
|
Maximum charge/discharge current |
25/25A |
|
Charge strategy for Li-ion Battery |
Self-adaptation to BMS |
|
Output(AC) |
|
|
AC nominal power |
10000VA |
|
MaxAC apparent power |
11000VA |
|
Max output current |
17A |
|
Nominal AC output |
50/60Hz; 400/350 |
|
AC output range |
45/55Hz; 280~490Vac(Adj) |
|
Power factor |
0.8leading….0.8laging |
|
Harmonics factor |
<3% |
|
Grid type |
3WN/PE |
|
Three-phase unbalance output |
0~100% |
|
AC Output(Back-up) |
|
|
Max AC apparent power |
10000VA |
|
Norminal Output Voltage |
400/380V |
|
Norminal Output Freqency |
50/60HZ |
|
Output THDV(@Linear Load) |
<3% |
|
Efficiency |
|
|
Maximum conversion efficiency |
98.2% |
|
European efficiency |
97.5% |
|
Max battery to AC Efficiency |
97.4% |
|
MPPTefficiency |
99.9% |
|
Safety and Protection |
|
|
DC reverse-polarity protection |
yes |
|
DC breaker |
yes |
|
DCIAC SPD |
yes |
|
Leakage current protection |
yes |
|
Insulation Impedance Detection |
yes |
|
Residual Current protection |
yes |
|
Output short circuit protection |
yes |
|
Battery reverse connection protection |
yes |
|
General Parameters |
|
|
Dimension(W/H/D) |
516*427*183.5mm |
|
Weight |
26 kg |
|
Operating temperature range ℃ |
-25℃...+60℃ |
|
Degree of protection |
IP65 |
|
Cooling concept |
Natural convection |
|
Topology |
Transformerless |
|
Display |
LCD |
|
Humidity |
0-95%, no condensation |
|
Communication |
Standard WiFi; GPRS/LAN(optional) |
|
Warranty |
Standard 5 years; 7/10 years optional |
|
BMS communication |
CAN/RS485 |
|
Meter communication |
RS485 |
|
Certificates and Approvals |
|
|
CQC, VDE-AR-N4105, IEC61727, IEC62116, VDE0124-AR-N0124, EN50549, IEC62109, IEC62477 |
|
