Home / Products / Power Inverters / Hybrid Inverter / EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability

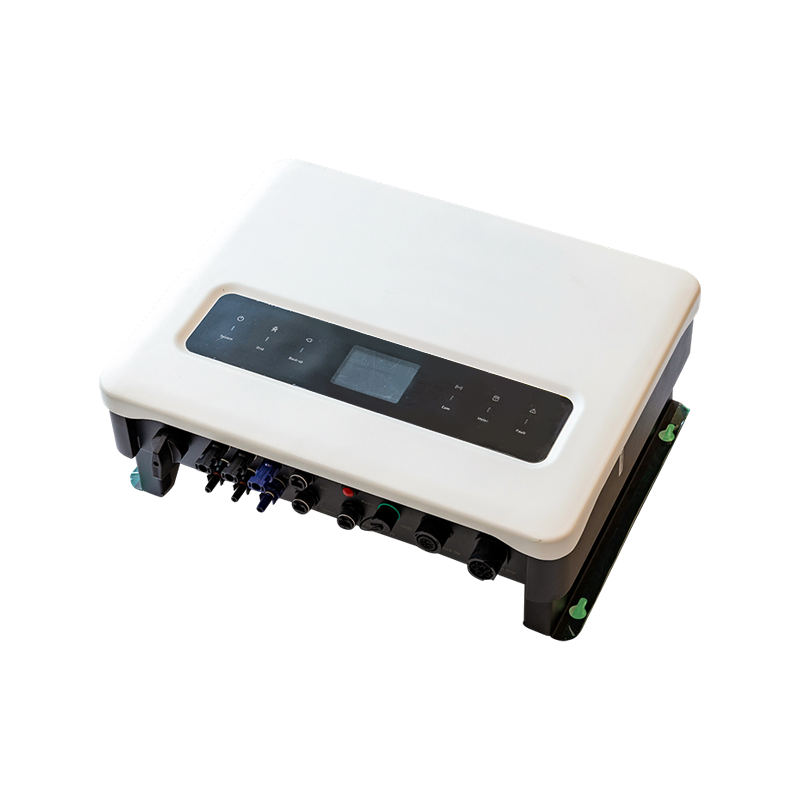

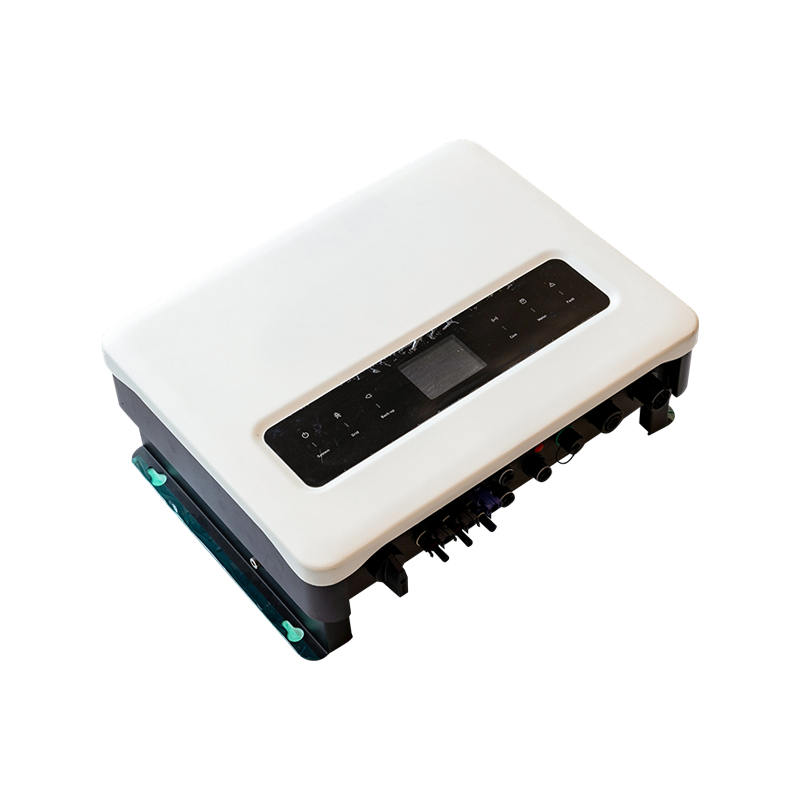

EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability

EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability

Key Features and Applications

  High reliability: Maintains stable output at ambient temperatures up to 45°C, ensuring consistent performance in demanding environments.

Flexible energy management: Supports integration of various battery chemistries, enhancing energy storage system adaptability.

Advanced grid compliance: Anti-backflow control below 20W allows precise reverse power management, supporting modern grid regulations.

APPLICATION SCENARIOS
  • Commercial buildings and industrial facilities requiring stable three-phase energy supply.
  • Solar-plus-storage installations for distributed energy systems.
  • Peak shaving, backup power, and smart energy management in complex electrical environments.
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
  • EPH8KTL Three-Phase Hybrid Solar Inverter with Battery Integration Capability
INSTALLATION AND COMPATIBILITY

Three-phase unbalanced output improves load distribution and power quality in commercial and industrial systems.

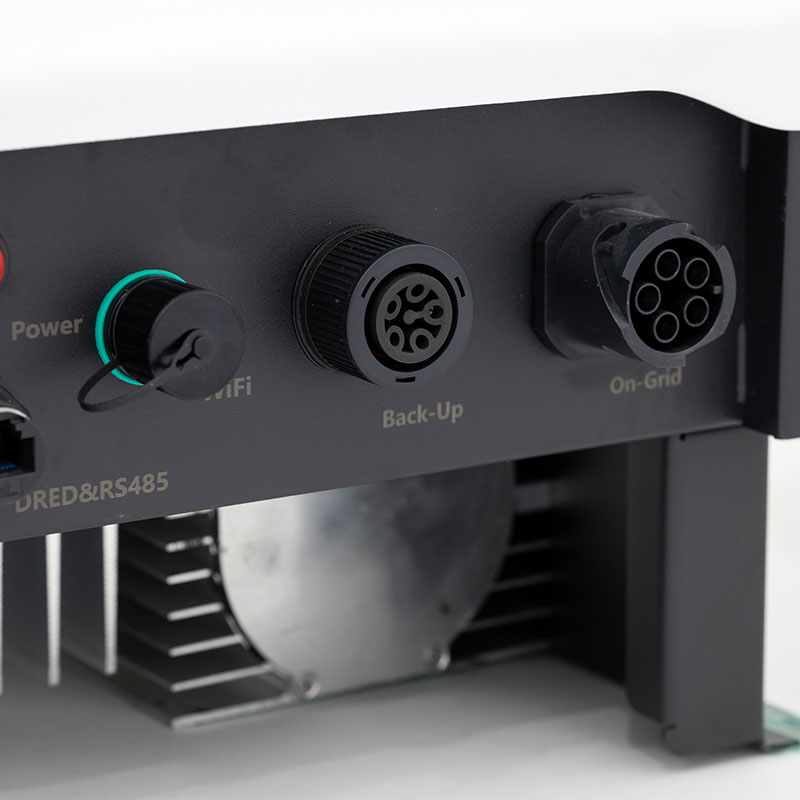

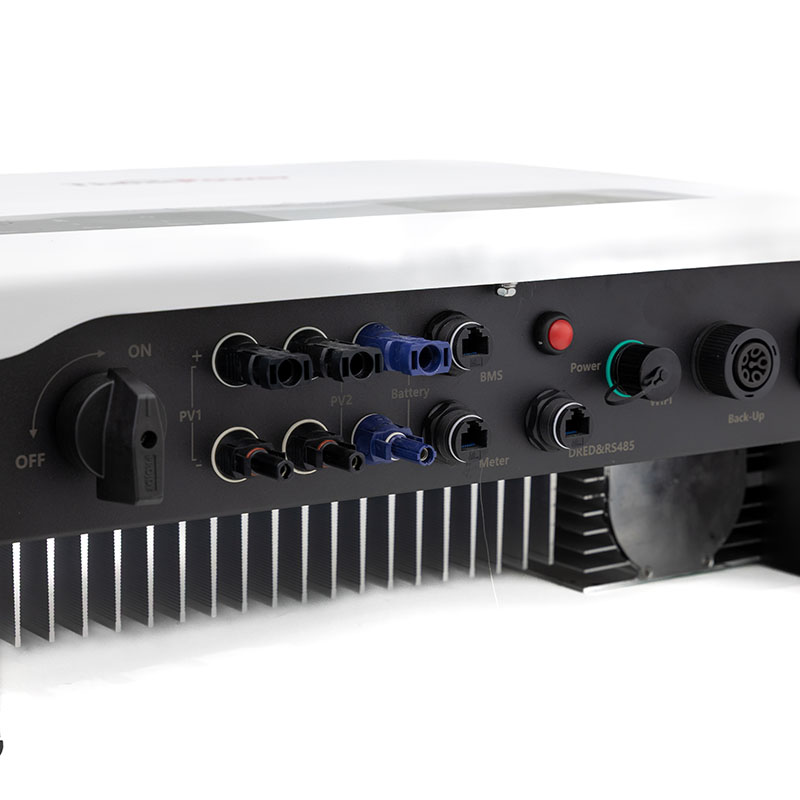

Multiple communication interfaces (WiFi, GPRS, LAN) enable real-time remote monitoring and diagnostics.

SML and DRED functions are standard, ensuring compatibility with demand response and grid control standards.

Contact Us
Product Details

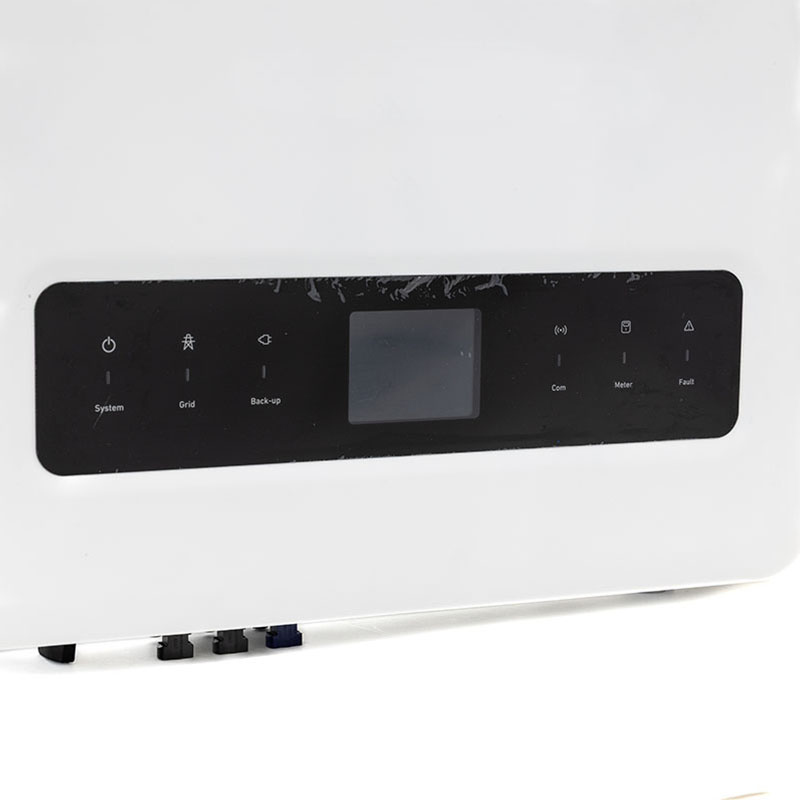

The EPH8KTL Three-Phase Hybrid Solar Inverter is designed for modern solar and energy storage systems requiring stable three-phase output and flexible battery integration. It enables seamless coordination between photovoltaic generation, battery storage, and grid interaction, making it suitable for both grid-connected and hybrid energy systems. The inverter features a large LCD display for clear monitoring of operational parameters and real-time performance, supporting precise power export control and optimized self-consumption strategies.

Model No

EPH8KTL

Input(DC)

Max DC power

12000W

Max DC voltage

1000Vd.c.

MPPT voltage range

200.…850Vd.c.

Max input current/per string

13A/13A

Max.input short circuit per MPPT

18A/18A

Number of MPP trackers

Strings per MPP tracker

Battery Input

Battery Type

Li-Ion

Battery voltage range

130-700V

Maximum charge/discharge current

25/25A

Charge strategy for Li-ion Battery

Self-adaptation to BMS

Output(AC)

AC nominal power

8000VA

MaxAC apparent power

8800VA

Max output current

15A

Nominal AC output

50/60Hz; 400/350

AC output range

45/55Hz; 280~490Vac(Adj)

Power factor

0.8leading….0.8laging

Harmonics factor

<3%

Grid type

3WN/PE

Three-phase unbalance output

0~100%

AC Output(Back-up)

Max AC apparent power

8000VA

Norminal Output Voltage

400/380V

Norminal Output Freqency

50/60HZ

Output THDV(@Linear Load)

<3%

Efficiency

Maximum conversion efficiency

98.2%

European efficiency

97.5%

Max battery to AC Efficiency

97.4%

MPPTefficiency

99.9%

Safety and Protection

DC reverse-polarity protection

yes

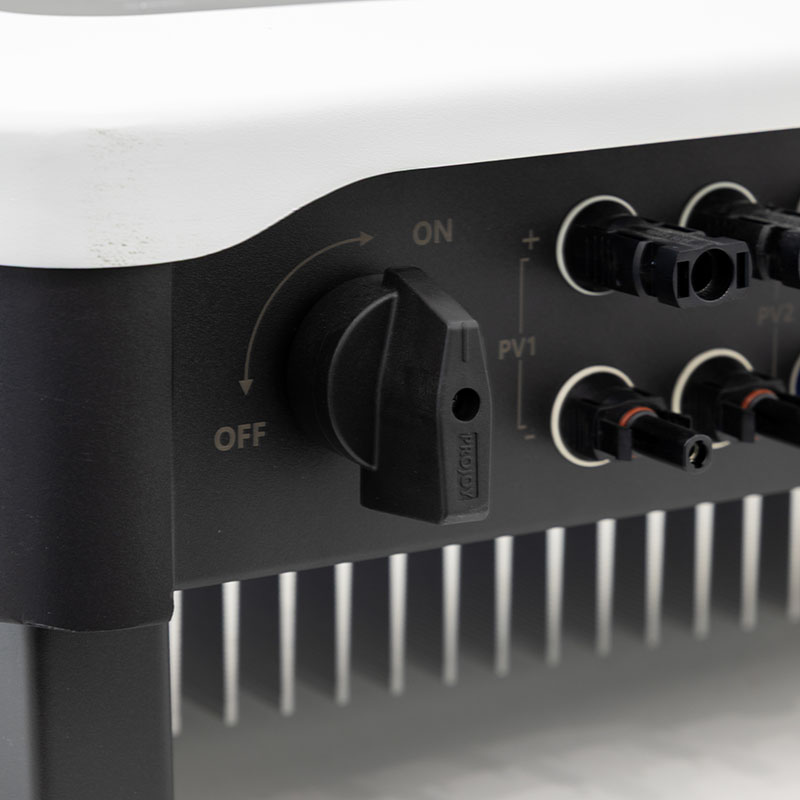

DC breaker

yes

DCIAC   SPD

yes

Leakage current protection

yes

Insulation Impedance Detection

yes

Residual Current protection

yes

Output short circuit protection

yes

Battery reverse connection protection

yes

General      Parameters

Dimension(W/H/D)

516*427*183.5mm

Weight

26 kg

Operating temperature range ℃

-25℃...+60℃

Degree of protection

IP65

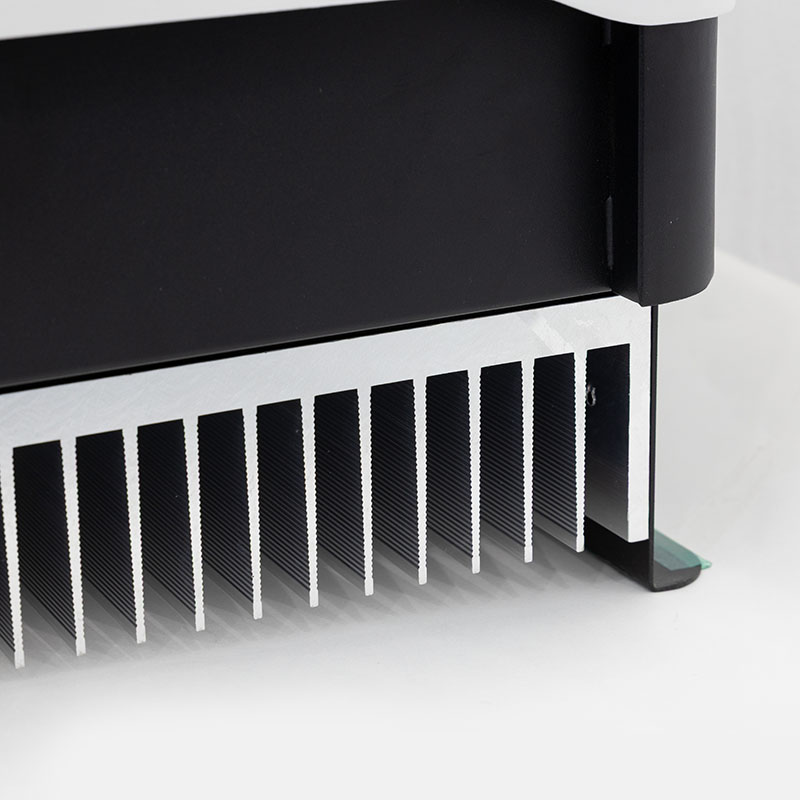

Cooling concept

Natural convection

Topology

Transformerless

Display

LCD

Humidity

0-95%, no condensation

Communication

Standard WiFi; GPRS/LAN(optional)

Warranty

Standard 5 years; 7/10 years optional

BMS communication

CAN/RS485

Meter communication

RS485

Certificates and Approvals

CQC, VDE-AR-N4105, IEC61727, IEC62116, VDE0124-AR-N0124, EN50549, IEC62109, IEC62477
