High power density design allows compact installation and efficient energy conversion in commercial and industrial PV systems.
Supports three-phase unbalanced output, ensuring flexible load distribution and stable grid operation.
Equipped with advanced control algorithms developed over ten years of R&D for reliable long-term performance.
Optional built-in power limiter for grid export management, suitable for regions with strict export regulations.

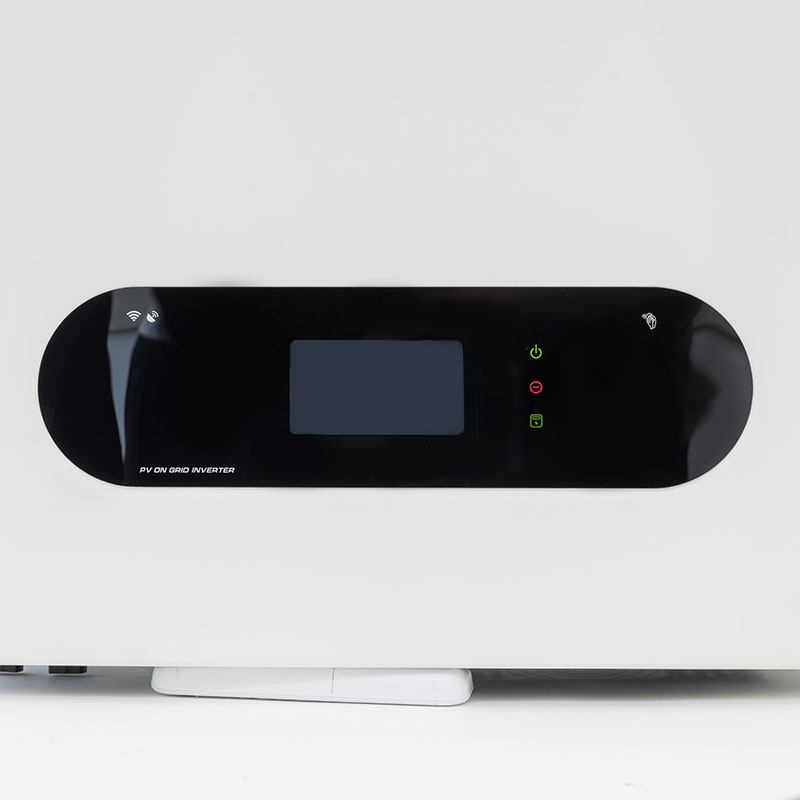

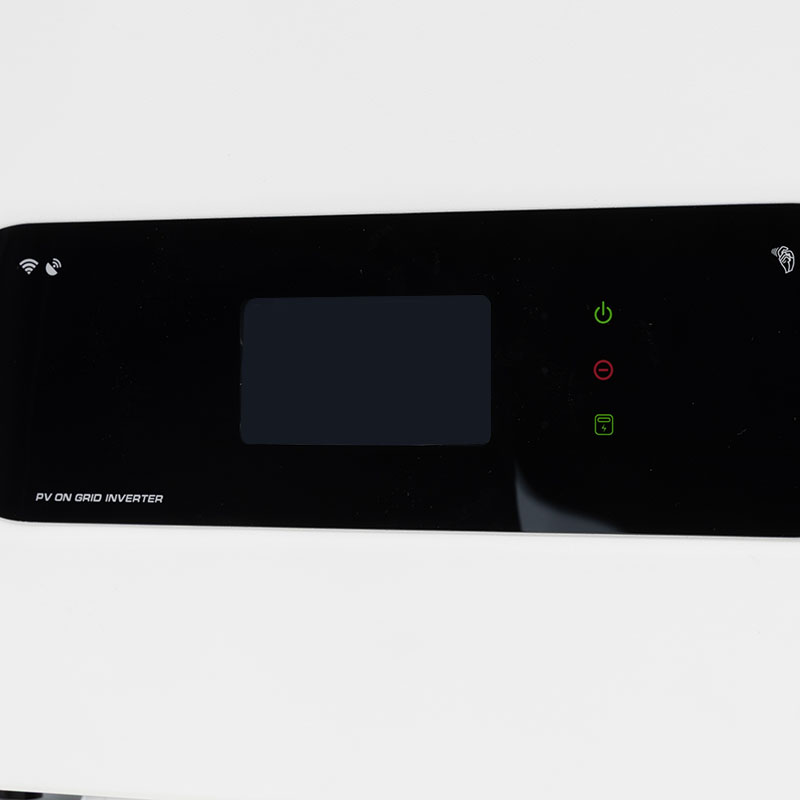

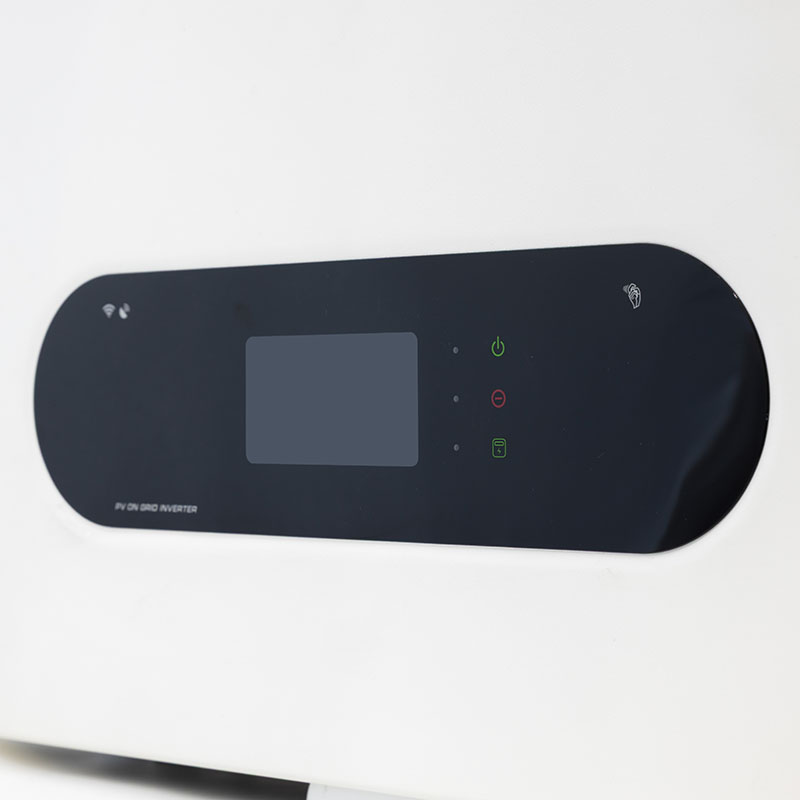

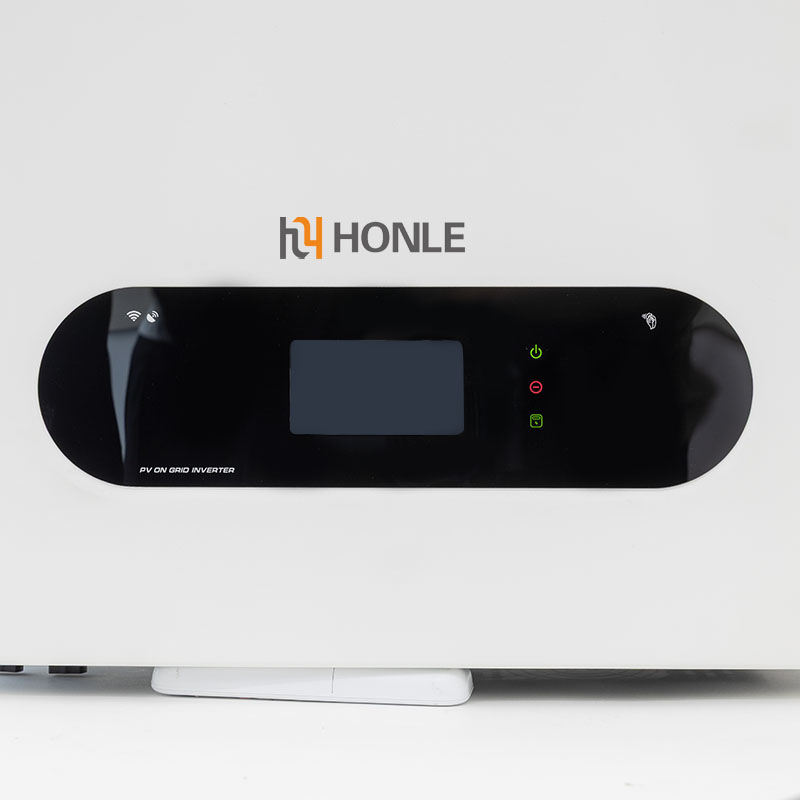

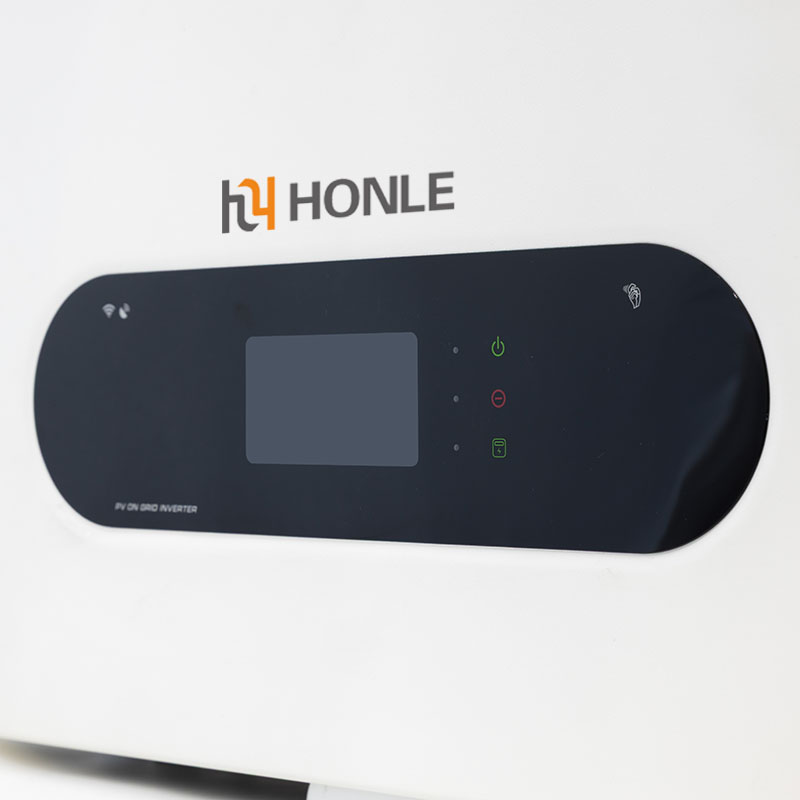

Fault detection and reporting: LCD screen displays error codes for rapid troubleshooting and reduced downtime.
Multiple communication interfaces: WiFi, GPRS, and LAN connectivity for remote monitoring and system integration.
Single-person installation: Lightweight and compact design simplifies mounting on rooftops or ground-mounted PV arrays.
Environmental durability: IP65 ingress protection safeguards against dust, rain, and extreme temperatures.
Stable energy performance: Supports continuous high-efficiency operation across varied environmental conditions.

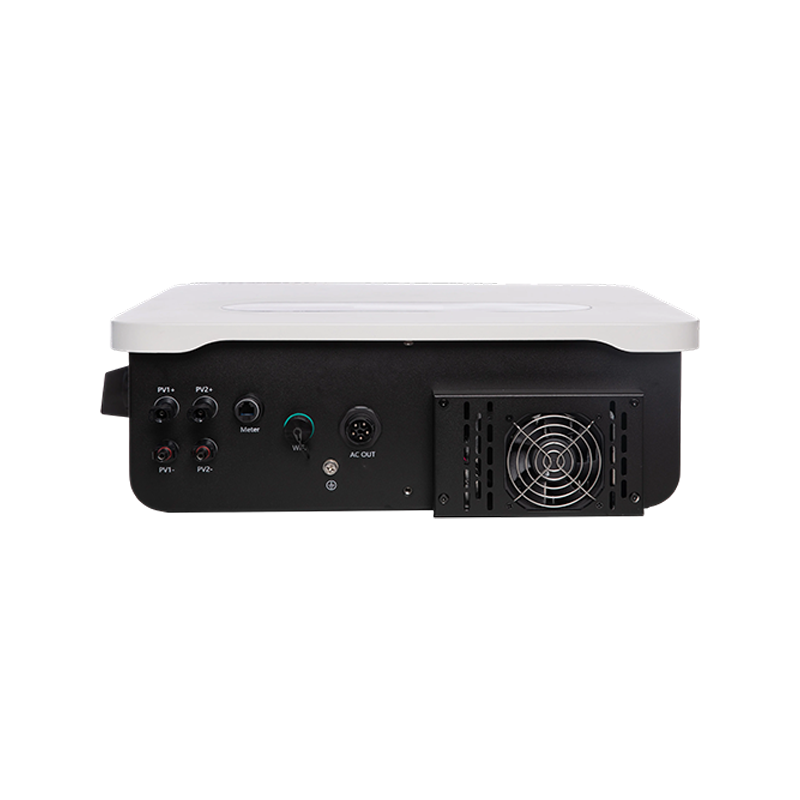

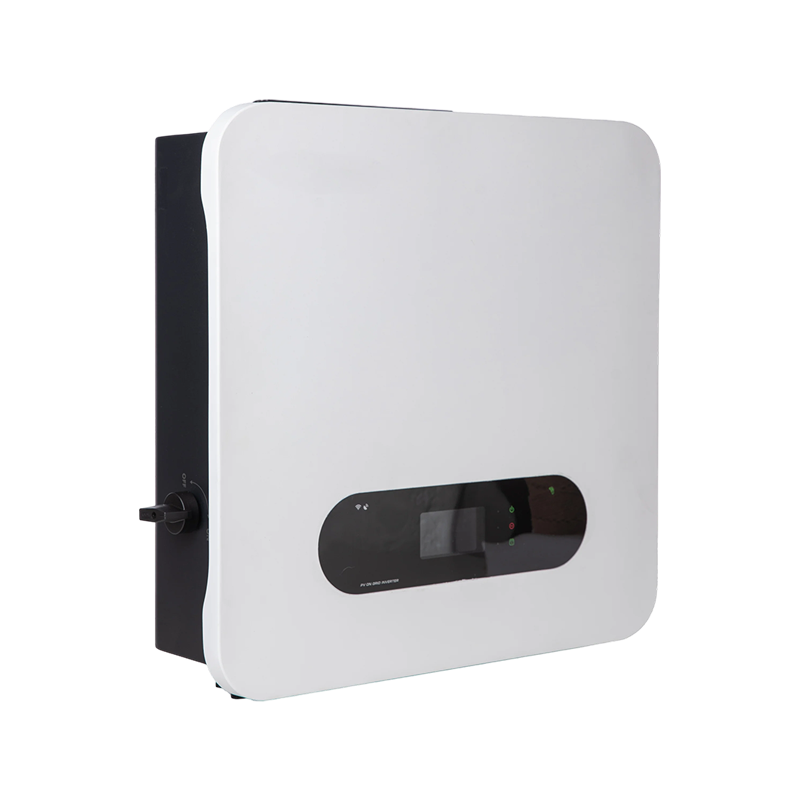

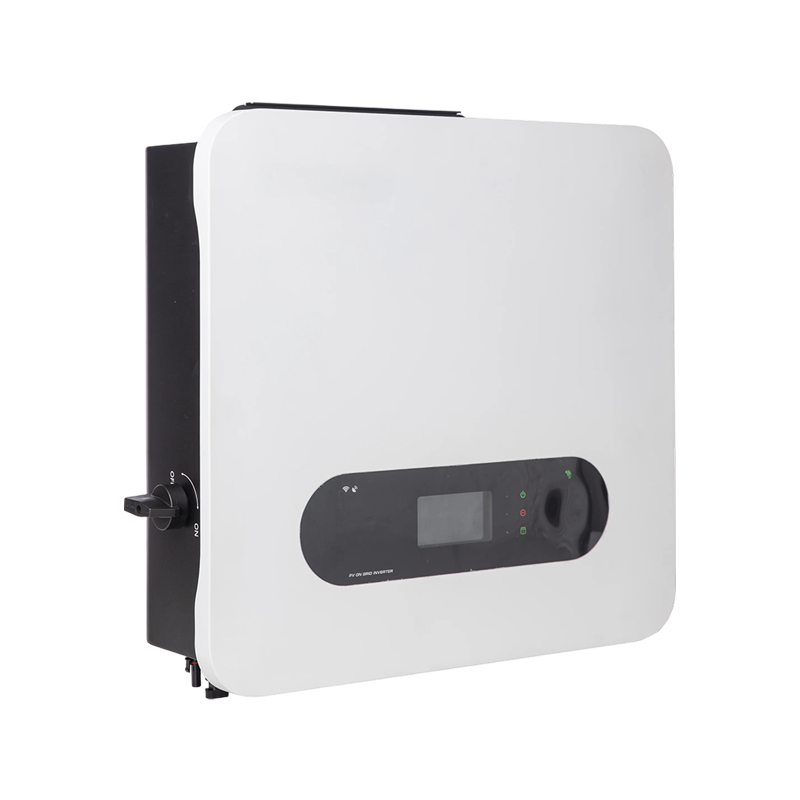

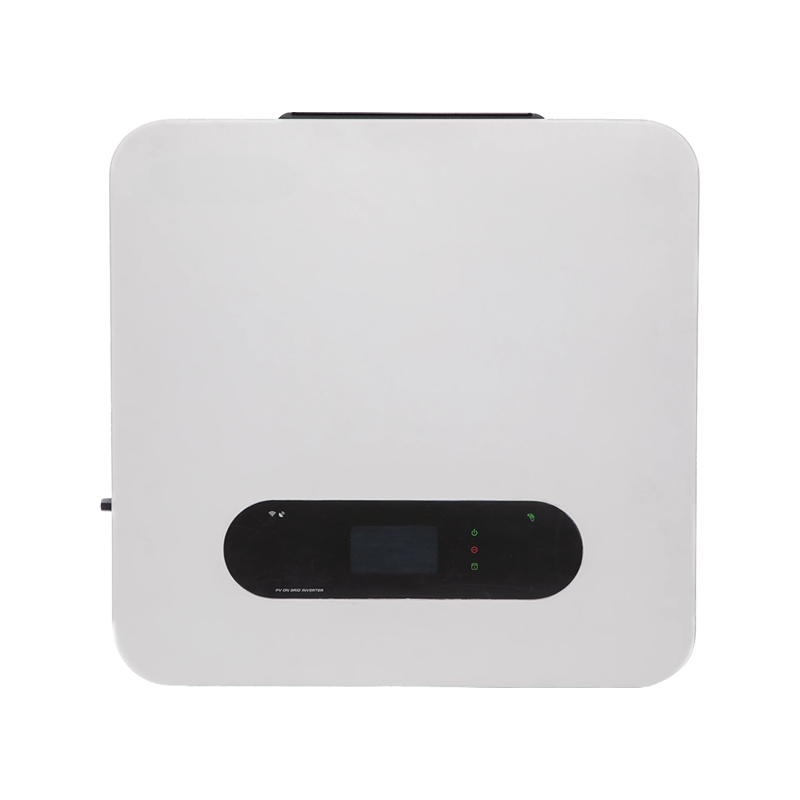

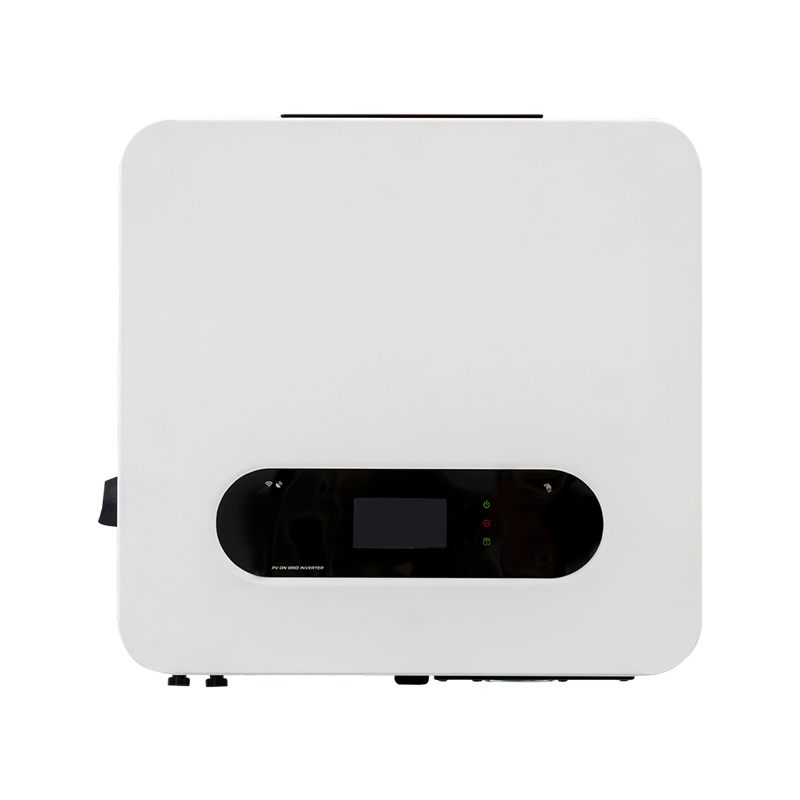

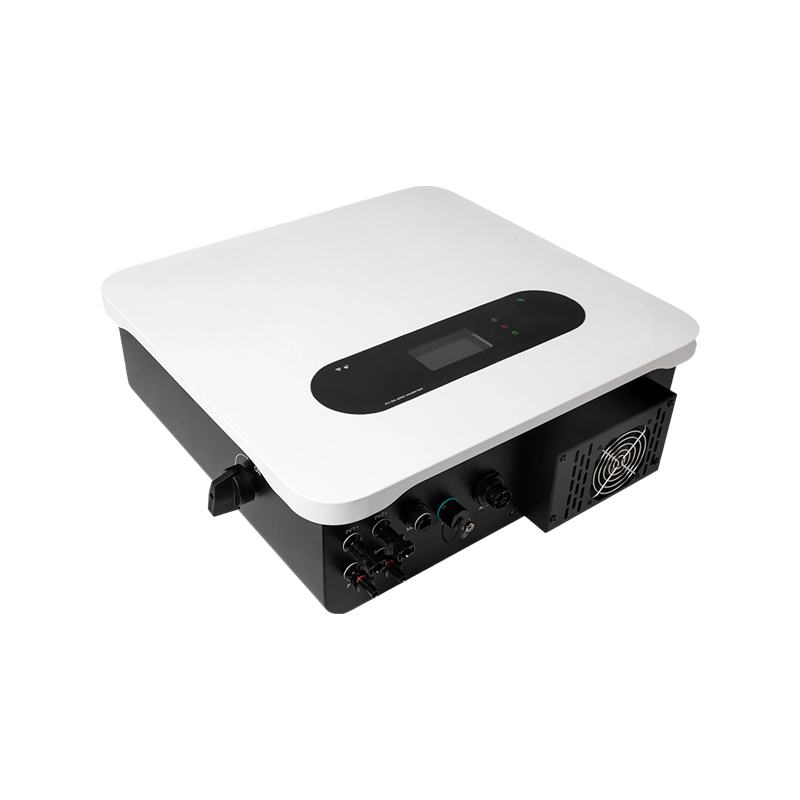

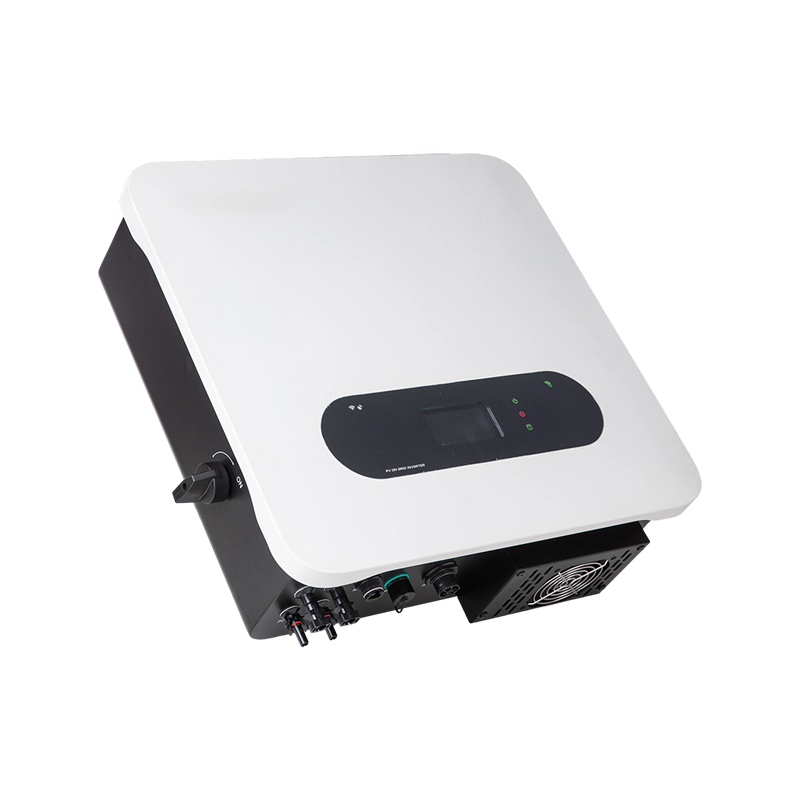

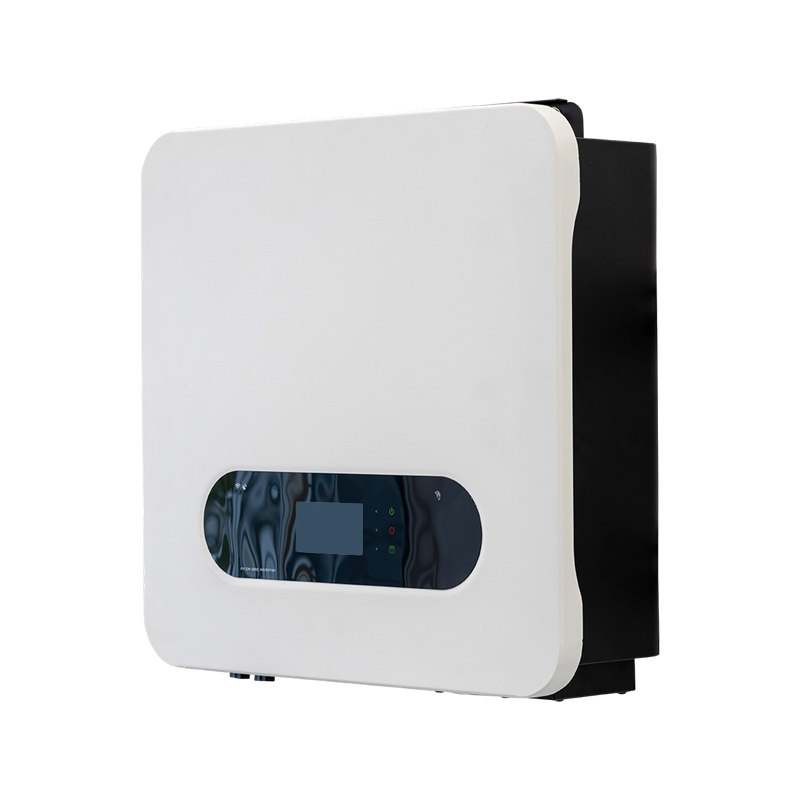

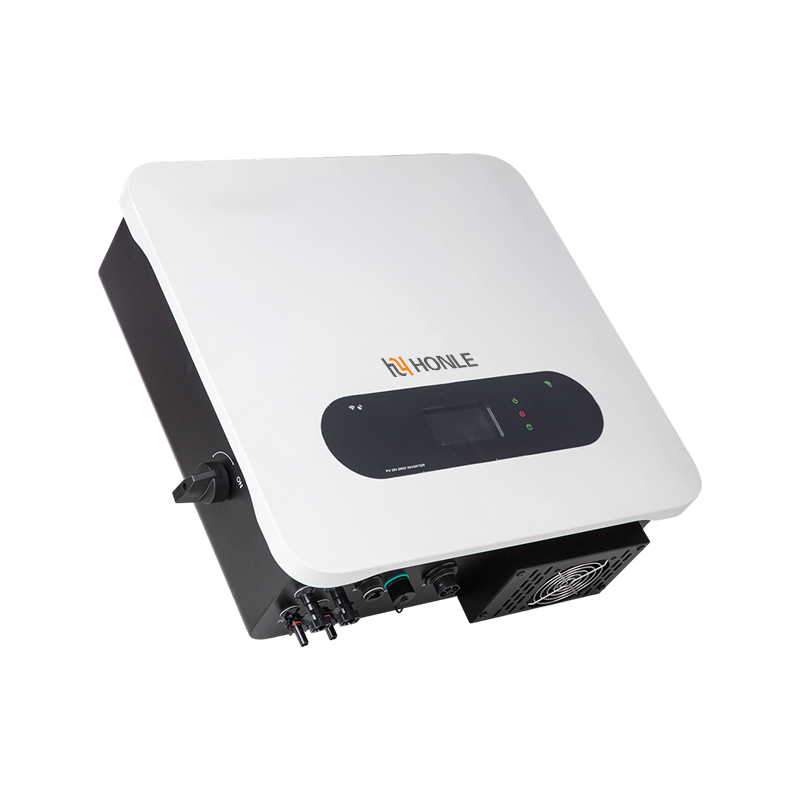

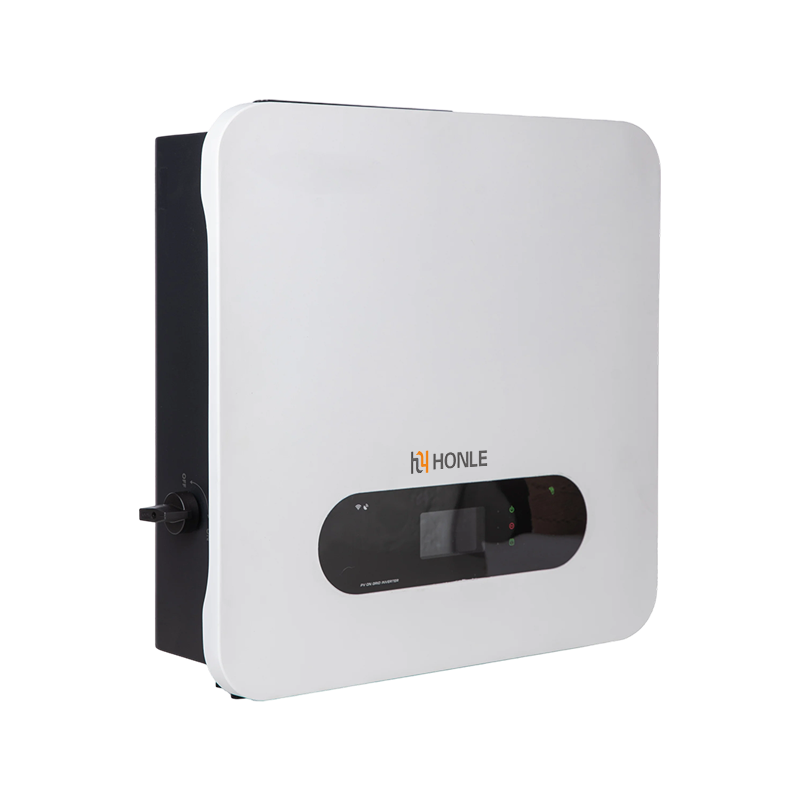

The TP Series Three-Phase 380V Grid-Tied Solar Inverter is designed for high-capacity photovoltaic (PV) installations requiring efficient power conversion and reliable grid interaction. It converts DC electricity from solar panels into stable AC power compatible with utility grids, supporting precise energy export and optimized self-consumption. Equipped with a large LCD display, the inverter provides real-time monitoring of output power, system parameters, and fault alerts. With IP65 protection, it is suitable for outdoor deployment under challenging environmental conditions. The system meets international quality standards and has been certified by TUV, BV, and Dekra.
|
Model No |
TP4KTL |
TP5KTL |
TP6KTL |
TP8KTL |
TP10KTL |
TP12KTL |
TP15KTL |
|
Input(DC) |
|||||||
|
Max DC power iW) |
6500W |
6500W |
700W |
9500W |
11500W |
18000W |
22500W |
|
Max DC voltage (Vdc) |
1000Vd.c. |
||||||
|
Mn working voltage (Vdc) |
160Vd.c. |
||||||
|
MPPTvcltage range (Vde) |
160...850Vd.c. |
||||||
|
Max input comment/per string (A) |
18A/18A |
||||||
|
Maxinpu shert circuit per MPPT |
25A/25A |
||||||
|
Number of MPPtrackers |
2 |
||||||
|
Stings per MPP tracker |
1 |
||||||
|
Output(AC) |
|||||||
|
AC nominal power (w) |
4000 |
5000 |
6000 |
8000 |
10000 |
12000 |
15000 |
|
MaxAC apparent power (VA) |
5000 |
6000 |
7000 |
8800 |
11000 |
13200 |
16500 |
|
Max cutpsr curen (A) |
8 |
10 |
12 |
15 |
17 |
20 |
23 |
|
Nominal AC output |
50N60 Hz;400 Vac |
||||||
|
AC output range |
4555Hz;280-490 Vac(AA) |
||||||
|
Powe factor |
0.&eadng..0.Blaging |
||||||
|
Hamonics |
<5% |
||||||
|
Gid type |
3WNPE |
||||||
|
Efficlency |
|||||||
|
Maxeficiency |
98.0% |
98.2% |
98.2% |
98.3% |
984% |
984% |
98.4% |
|
Eumo enceney |
97,5% |
97.7% |
97.7% |
97,8% |
97.9% |
97.9% |
98.0% |
|
MPPTafficiency |
99.9% |
99.9% |
99.9% |
99.9% |
99.9% |
99.9% |
99.9% |
|
Safety and Protection |
|||||||
|
DC reverse polarity protection |
yes |
||||||
|

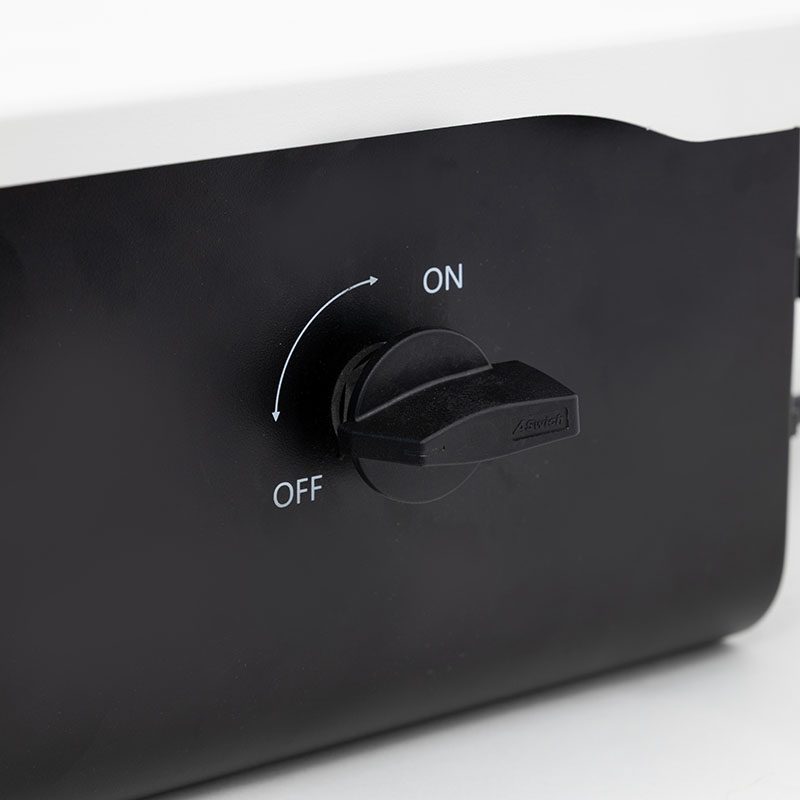

DC breaker |
yes |
||||||
|
DC/AC SPD |
yes |
||||||
|
Leakage control protection |
yes |
||||||
|
Insulation impedance Detection |
yes |
||||||
|
Residual Cument protection |
yes |
||||||
|
General Parameters |
|||||||
|
Dimerslon (YHDymm) |
480*476*157 |
||||||
|
Weight ik) |
16 |
||||||
|
Operafing temperaure range℃ |
-25~+80 |
||||||
|
Degree of protection |
IP65 |
||||||
|

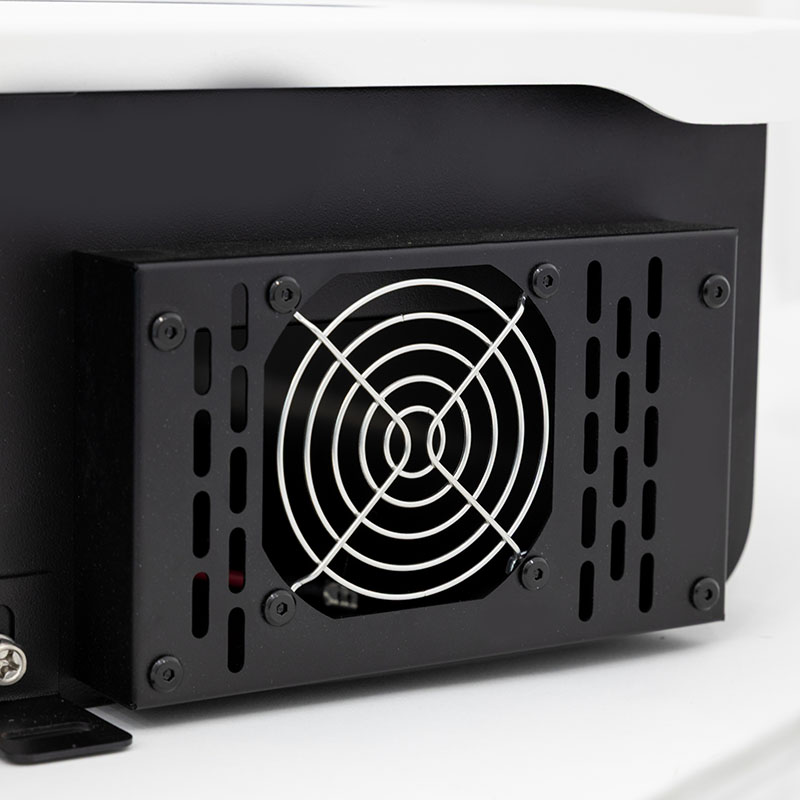

Coning concept |
Smart Cooing |
||||||
|
Topokogy |
Transformerless |
||||||
|
Display |
LCD |
||||||
|
Humidity |
0-95%, no condensation |
||||||
|
Communicaticn |
RS485WFVGPRS |
||||||
|
Warranty |
Standard 5 years;710 years optional |
||||||
|
Certificates and Approvals |
|||||||
|
CQC, VDE-AR-N4105, VDE0128-1-1, AS4777, IEC61727, IEC62116 |
|||||||
