Long service life: Over 2000 cycles at 80% depth of discharge.
High energy density: Supports extended driving range on a single charge.
Safe operation: Stable thermal and chemical performance reduces risk.
Lightweight and compact: Ideal for small electric vehicles without compromising space.



Nominal voltage: 48V; capacity: 100Ah.
Fast charging support: Minimizes downtime for commercial and personal EVs.
Wide temperature tolerance: Performs reliably in varying climates.
Maintenance-free: No electrolyte top-ups required.

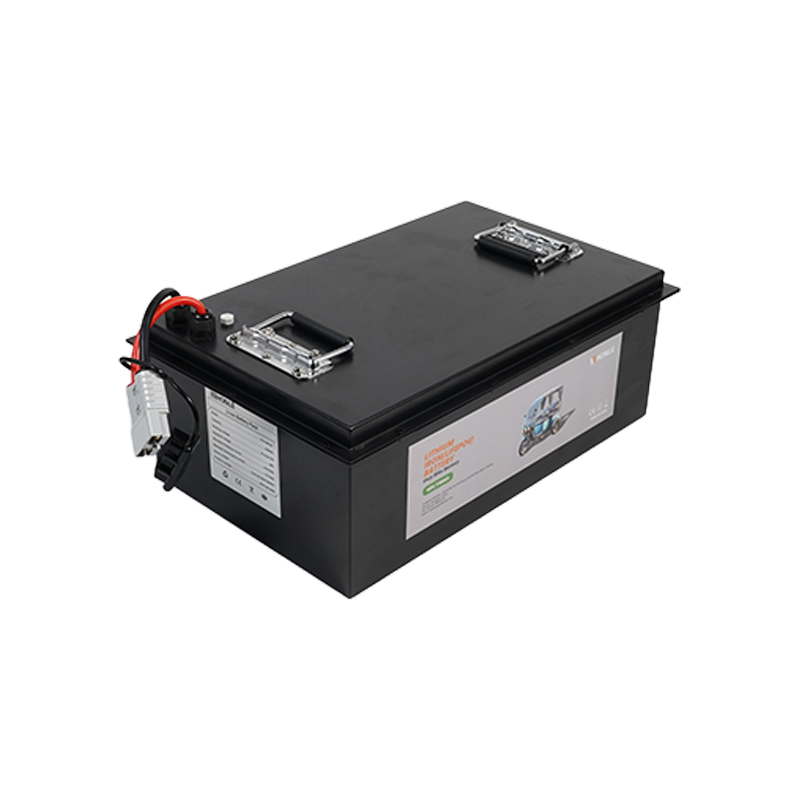

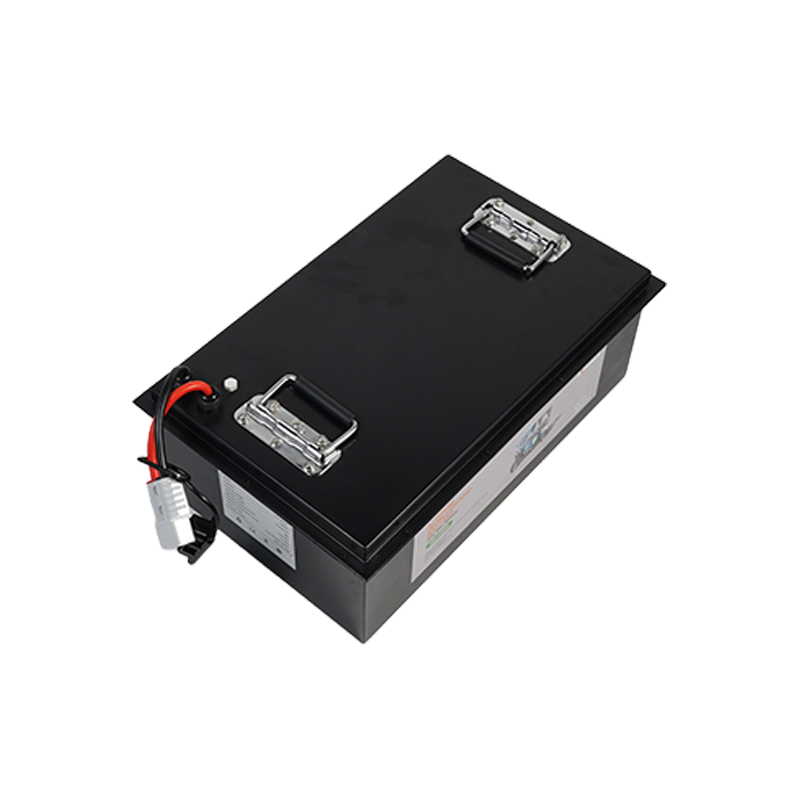

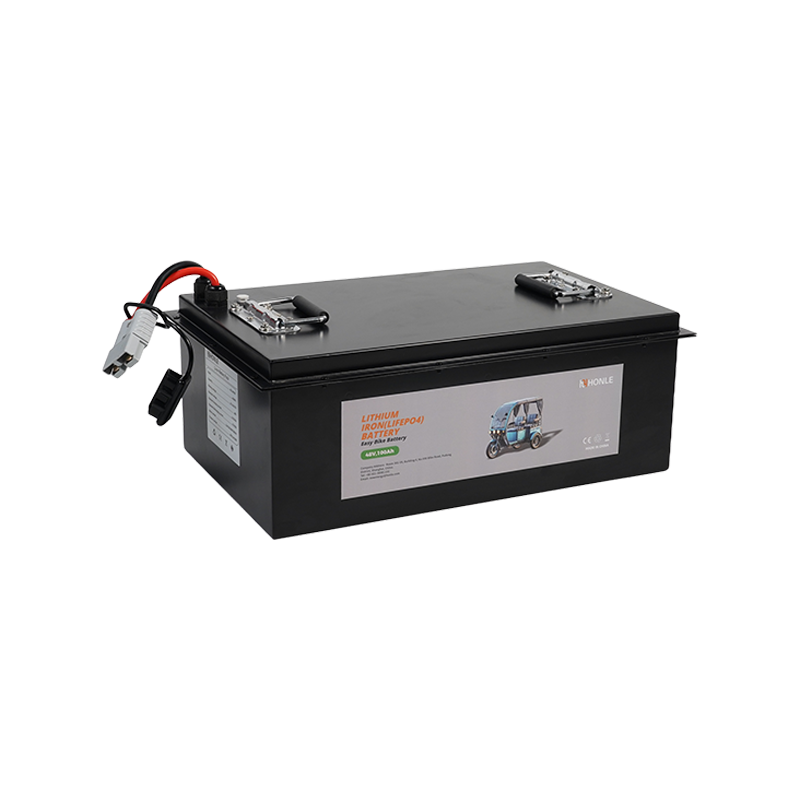

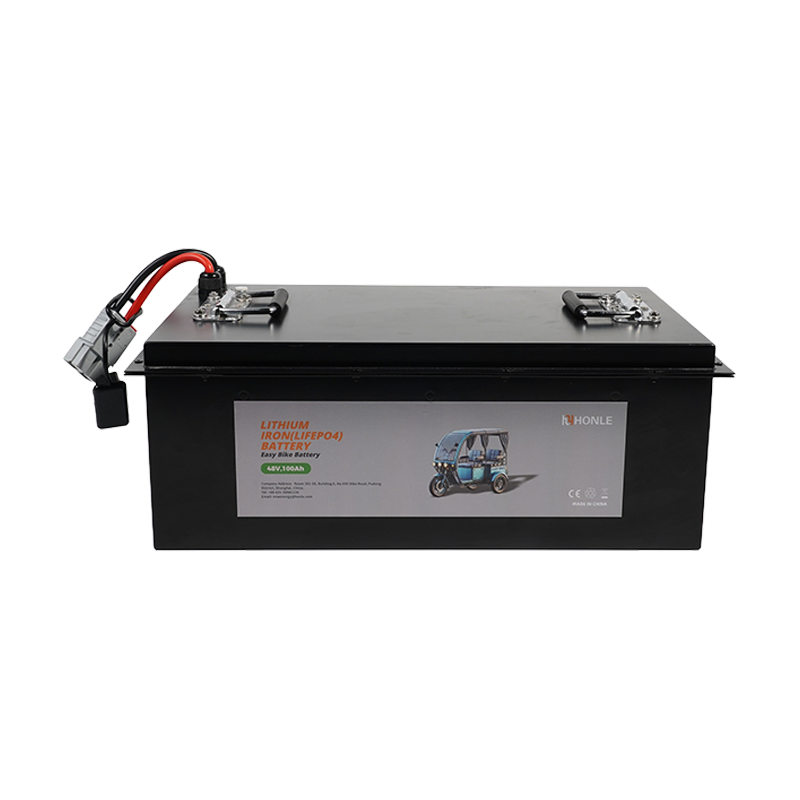

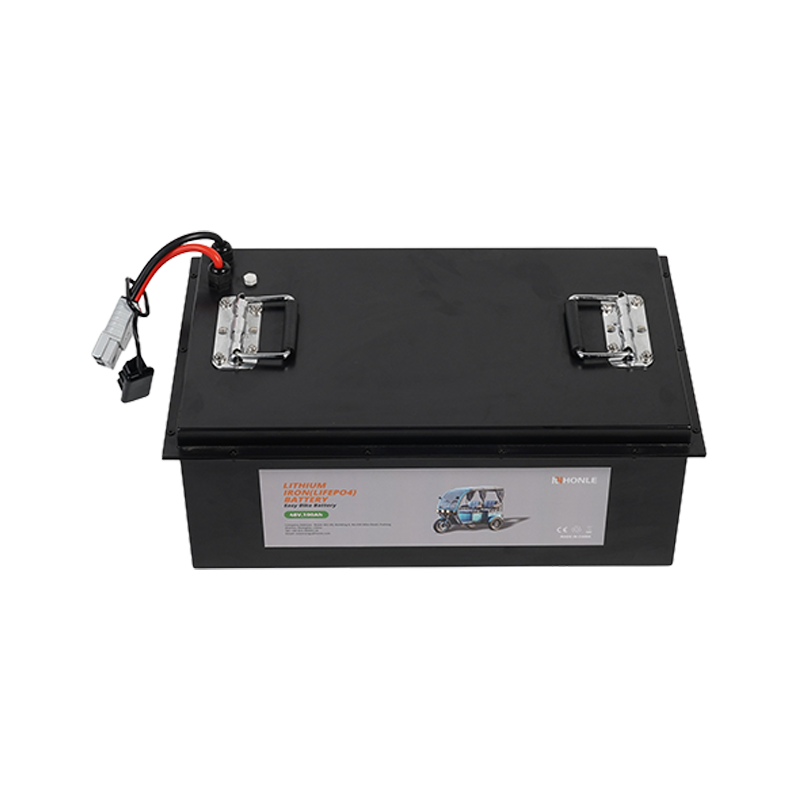

The 48V 100Ah Lithium Battery Pack is designed for low-speed electric vehicles (LSEVs), delivering consistent and efficient power for urban mobility and light transport applications. Utilizing high-quality LiFePO4 cells, this battery pack provides long life, robust performance, and reliable energy storage for modern electric mobility solutions.
|
Items |
Condition |
Specification |
|||
|
Nominal Capacity |
Standard |
52Ah |
100Ah |
100Ah |
|
|
Nominal Voltage |
Average |
48V |
48V |
60.8V |
|
|
Standard Charging Refer |
Constant current |
52A |
52A |
52A |
|
|
Charging Voltage |
/ |
54.75V |
54.75V |
69.35V |
|
|
Max.Continuous Charge |
25±3℃ |
52A |
104A |
104A |
|
|
Standard Discharging |
Constant current |
52A |
104A |
104A |
|
|
Max Continuous |
25±3℃ |
52A |
104A |
104A |
|
|
Nominal Energy |
25±3℃ |
2.4kWh |
4.8kWh |
6kWh |
|
|
Available Energy |
25±3℃ |
2.28kWh |
4.56kWh |
5.7kWh |
|
|
Operating |
Charge |
/ |
0℃~55℃ |
||
|
Discharge |
/ |
-30℃~55℃ |
|||
|
Storage Temperature |
/ |
-20℃~55℃ |
|||
|
Weight |
/ |
23.5KG |
38KG |
46.1KG |
|
