N-TOPCON/PERC Solar Panel
Home / Products / Solar Panel / N-TOPCON/PERC Solar Panel / 430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel

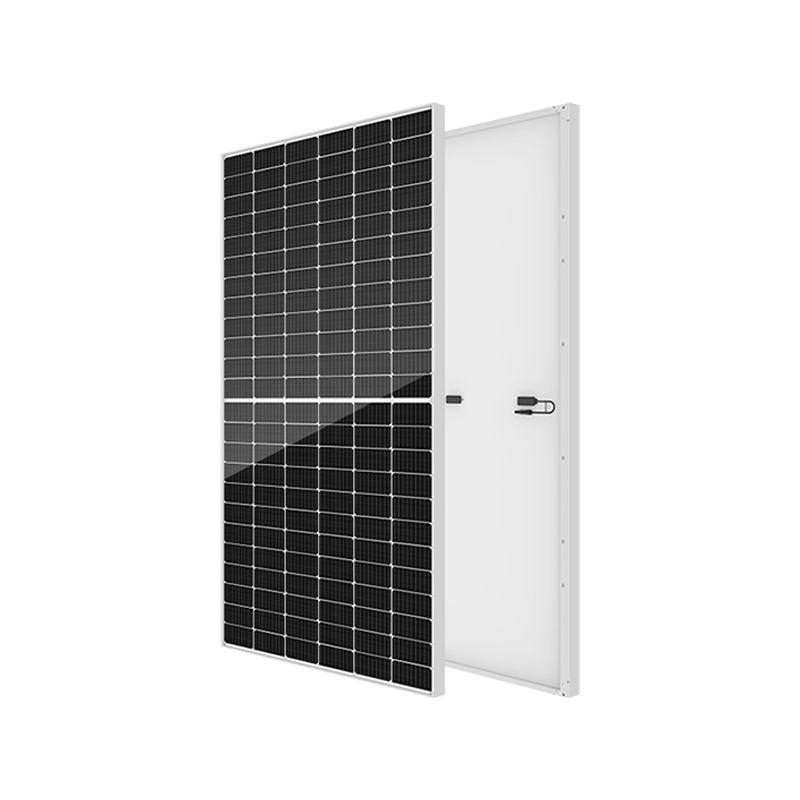

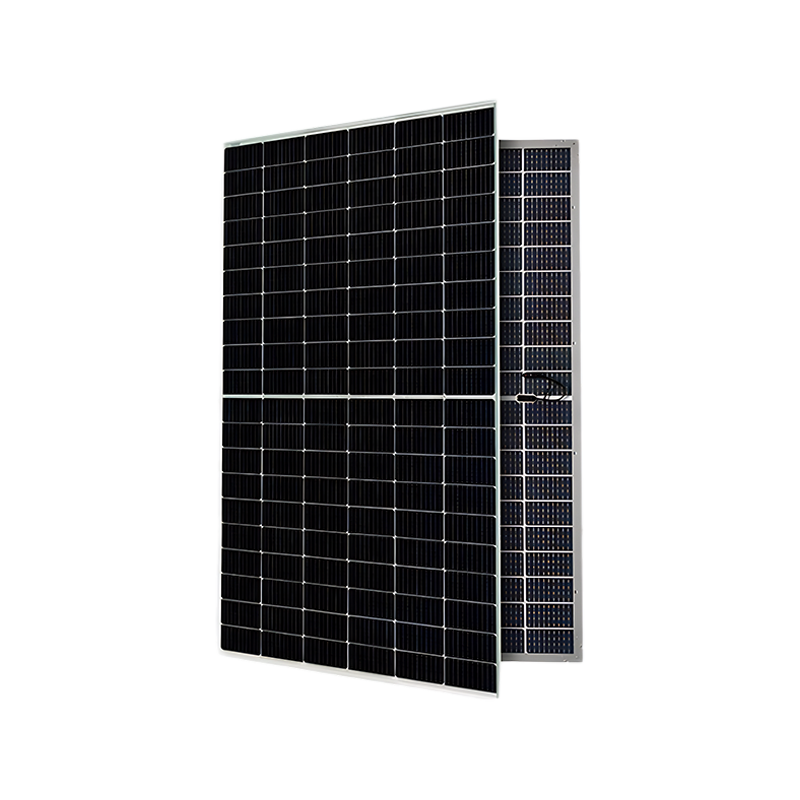

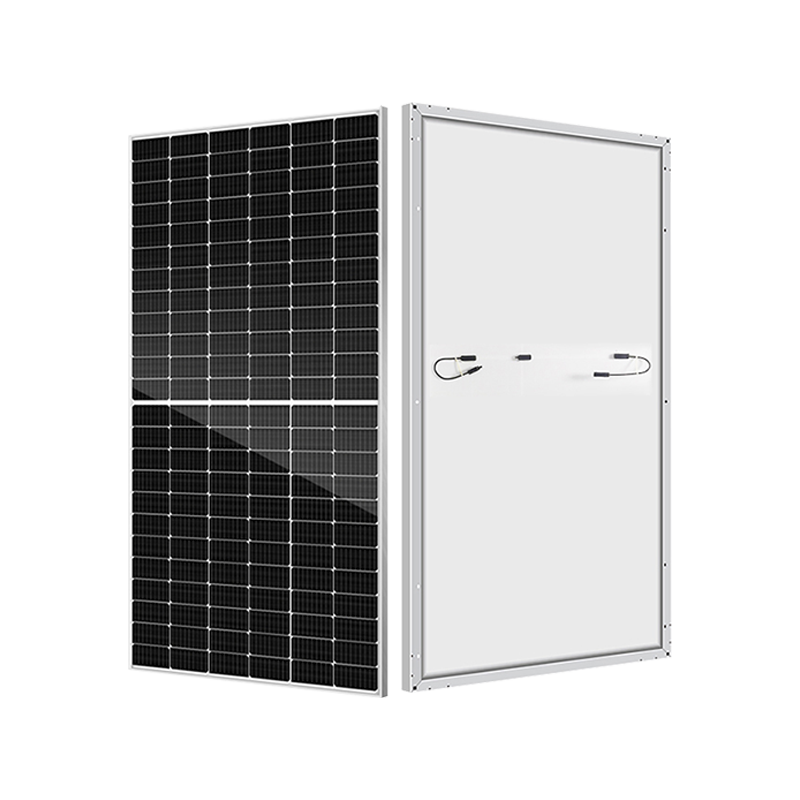

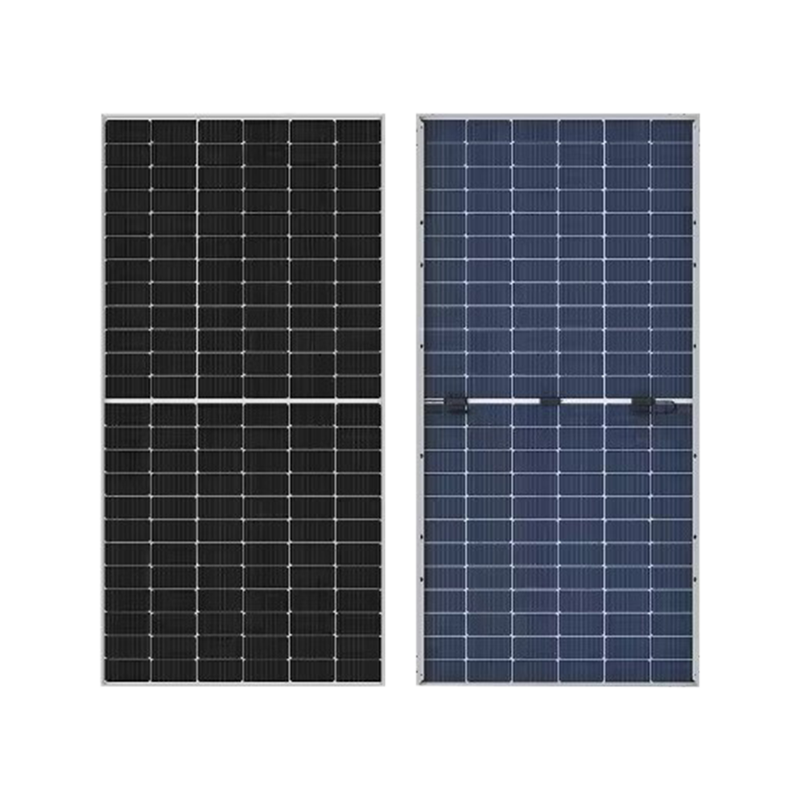

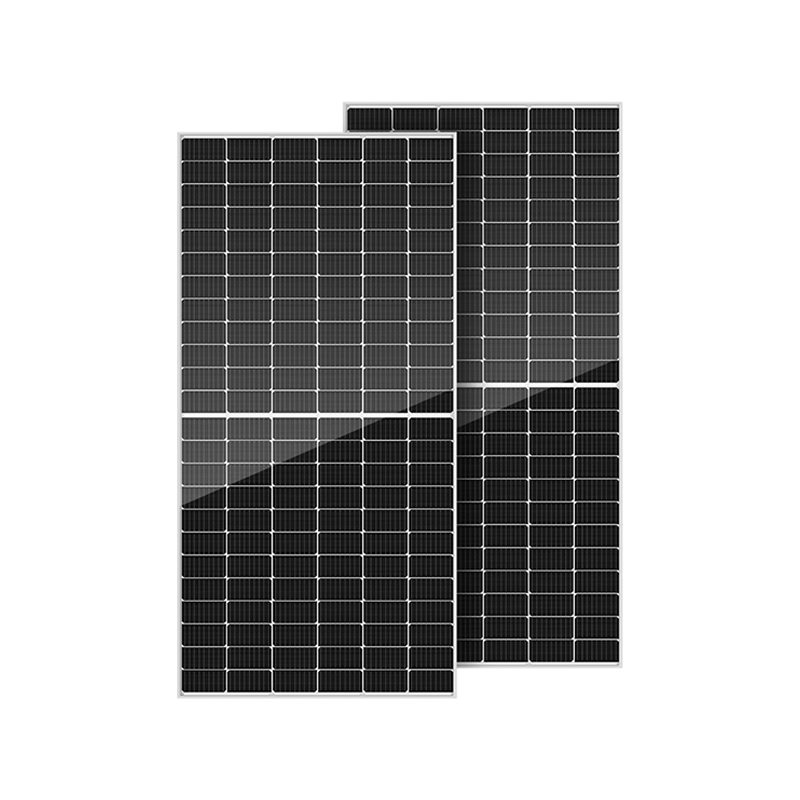

430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel

430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel

Key Features and Applications

The module surface is designed with strong self-cleaning capability, reducing dust accumulation and improving energy yield. Compared with conventional structures, this design can increase power generation by more than 6.15% over time.

 A curved surface with a 128° R angle significantly reduces holding pressure by over 75%, enhancing mechanical stability under wind and snow loads. This structure improves durability while maintaining consistent electrical performance.

APPLICATION SCENARIOS
  • N-TOPCon and PERC Solar Panels are widely applied in residential rooftop systems, commercial buildings, industrial facilities, and ground-mounted solar plants. They are suitable for distributed energy systems, utility-scale solar farms, and integrated energy storage solutions.
  • The panels are ideal for projects requiring reliable performance, environmental adaptability, and efficient long-term power generation across diverse installation environments.
  • 430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel
  • 430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel
  • 430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel
  • 430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel
  • 430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel
  • 430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel
  • 430~720W N-TOPCON / PERC High-Efficiency Monocrystalline Solar Panel
INSTALLATION AND COMPATIBILITY

Excellent frame packaging technology ensures strong adhesion between materials, improving resistance to environmental stress and extending operational lifespan. Anti-reflection coated glass further enhances light transmission, supporting higher energy efficiency across varying sunlight conditions.

Contact Us
Product Details

N-TOPCon and PERC Solar Panels are designed for high-efficiency solar power generation across residential, commercial, and utility-scale applications. With power output ranging from 430W to 570W, these modules provide stable energy performance under diverse environmental conditions.
The panels adopt advanced cell technology combined with anti-reflection-coated glass to enhance light absorption and improve overall energy conversion efficiency. High transmissivity glass enables effective solar capture even under low-irradiance conditions, supporting consistent power output throughout the day.
Engineered for long-term outdoor operation, the modules are rated for operating temperatures from -40°C to +85°C and meet Application Level Class A standards. Certified to CE and ISO requirements, the panels are suitable for global grid-connected and off-grid solar projects.

MECHANICAL SPECIFICATION

OPERATING PARAMETERS

Cable(Including connector)

4.0mm², 300/400mm in length, Length can be customized

Maximum system voltage

1500V DC

Operating Temperature

-40~+85℃

No.of Cells

108(54×2)

Maximum series fuse rating

20A

Glass

3.2mm, Anti-Reflection Coating, High Transmissi

Snow load, frontside/Wind load, backside

5400Pa/2400Pa

Junction box

on, Low Iron, Tempered Glass

Nominal operating cell temperature

42℃±2℃

Connector

MC4 Compatible

Application level

Class A

STC—Electrical Characteristics

Module Type

DHT-M60X10/FS

Maximum Power (Pmax)

430W

435W

440W

445W

450W

Open-circuit Voltage (Voc)

38.95V

39.16V

39.38V

39.59V

39.78V

Maximum Power Voltage (Vmp)

32.38V

32.59V

32.81V

33.02V

33.21V

Short-circuit Current(lsc)

13.73A

13.80A

13.86A

13.93A

14.00A

Maximum Power Current(lmp)

13.28A

13.35A

13.41A

13.48A

13.55A

Module Efficiency (%)

21.52%

21.77%

22.02%

22.27%

22.52%

Temperature Coefficient of lsc: 0.05%/℃/Temperature Coeficient of Voc: -0.37%/℃ / Temperature Coefficient of Pmax: -0.35%/P℃

Standard Test Environment: Iradiance 1000W/m², Cell temperature 25℃ Spectrum AM1.5

NOCT--Electrical Characteristics

Maximum Power(Pmax)

323W

327W

331W

335W

338W

Open-circuit Voltage (Voc)

37.00V

37.20V

37.41V

37.61V

37.79V

Maximum Power Voltage (Vmp)

30.10V

30.33V

30.56V

30.76V

30.90V

Short-circuit Current(lsc)

11.09A

11.14A

11.19A

11.25A

11.30A

Maximum Power Current(lmp)

10.73A

10.78A

10.83A

10.89A

10.94A

Standard Test Environment: Iradiance 800W/m² Ambient temperature 20℃, Spectrum AM1.5, Wind speed 1m/s

MECHANICAL SPECIFICATION

OPERATING PARAMETERS

Cable(Including connector)

4.0mm², 300/400mm in length, Length can be customized

Maximum system voltage

1500V DC

Operating Temperature

-40~+85℃

No.of Cells

144 (6x24)

Maximum series fuse rating

20A

Glass

3.2mm High Transmission, Anflction Coating

Snow load, frontside/Wind load, backside

5400Pa/2400Pa

Junction box

IP68,3 Bypass Diodes

Nominal operating cell temperature

42℃±2℃

Connector

MC4 Compatible

Application level

Class A

STC--Electrical Characteristics

Module Type

DHT-M60X10/FS

Maximum Power (Pmax)

475W

485W

495W

500W

505W

Open-circuit Voltage(Voc)

39.01V

39.42V

39.83V

49.01V

49.45V

Maximum Power Voltage (Vmp)

32.31V

32.72V

33.11V

33.31V

33.53V

Short-circuit Current (lsc)

15.68A

15.76A

15.83A

15.86A

15.89 A

Maximum Power Current(Imp)

14.42A

14.84A

14.97A

15.03A

15.09 A

Module Efficiency(%)

21.4%

21.8%

22.3%

22.5%

22.7%

Temperature Coeficient of lsc: 0.05%/℃/Temperature Coefficient of Voc: -0.37%/C/Temperature Coefficient of Pmax: -0.35%/℃

Standard Test Environment: Iradiance 1000W/m, Cell temperature 25℃ Spectrum AM1.5

NOCT--Electrical Characteristics

Maximum Power(Pmax)

363.7W

371.6W

378.4W

382.2W

386.0W

Open-circuit Voltage (Voc)

36.94V

37.14V

37.74V

38.00V

38.31V

Maximum Power Voltage(Vmp)

30.40V

30.80V

31.32V

31.53V

31.83V

Short-circuit Current (lsc)

14.72A

14.76A

14.80A

14.83A

14.90A

Maximum Power Current(Imp)

12.64A

12.71A

12.76A

12.78A

12.81A

Standard Test Environment: Imadiance 800W/m² Ambient temperature 20°℃ Spectrum AM1.5, Wind speed 1m/s

MECHANICAL SPECIFICATION

OPERATING PARAMETERS

Cable(Including connector)

4.0mm²,300/400mm in length, length can be customized

Maximum system voltage

1500V DC

Operating Temperature

-40~+85℃

No.of Cells

144(6×24)

Maximum series fuse rating

20A

Glass

3.2mm High Transmission, Antireflection Coating

Snow load, frontside/Wind load, backside

5400Pa/2400Pa

Junction box

IP68,3 Bypass Diodes

Nominal operating cell temperature

42℃±2℃

Connector

MC4 Compatible

Application level

Class A

STC--Electrical Characteristics

Module Type

DHT-M60X10/FS

Maximum Power(Pmax)

570W

575W

580W

585W

590W

Open-circuit Voltage (Voc)

51.99V

52.15V

52.31V

52.47V

52.63V

Maximum Power Voltage (Vmp)

42.99V

43.17V

43.35V

43.53V

43.71V

Short-circuit Current (Isc)

13.89A

13.95A

14.01A

14.07A

14.13A

Maximum Power Current(Imp)

13.26A

13.32A

13.38A

13.44A

13.50A

Module Efficiency(%)

22.07%

22.26%

22.45%

22.65%

22.84%

Temperature Coefficient of lsc: 0.05%/℃/Temperature Coefficient of Voc: -0.37%/℃/Temperature Coefficient of Pmax: -0.35%/P℃

Standard Test Environment: Iradiance 1000W/m², Cell temperature 25℃, Spectrum AM1.5

NOCT--Electrical Characteristics

Maximum Power (Pmax)

430W

433W

437W

441W

445W

Open-circuit Voltage (Voc)

49.38V

49.54V

49.69V

49.84V

41.05V

Maximum Power Voltage (Vmp)

40.37V

40.54V

40.70V

40.86

41.05

Short-circuit Current(Isc)

11.21A

11.26A

11.31A

11.36A

11.41A

Maximum Power Current (Imp)

10.64A

10.69A

10.74A

10.79

10.83

Standard Test Environment:Iradiance 800Wm², Ambient temperature 20℃, Spectrum AM15, Wind speed 1m/s

MECHANICAL SPECIFICATION

OPERATING PARAMETERS

Cable(Including connector)

4.0mm²,300/400mm in length, length can be customized

Maximum system voltage

1500V DC

Operating Temperature

-40~+85℃

No.of Cells

144(6×24)

Maximum series fuse rating

20A

Glass

3.2mm High Transmission, Antireflection Coating

Snow load, frontside/Wind load, backside

5400Pa/2400Pa

Junction box

IP68, 3 Bypass Diodes

Nominal operating cell temperature

42℃±2℃

Connector

MC4 Compatible

Application level

Class A

STC--Electrical Characteristics

Module Type

DHT-M60X10/FS

Maximum Power(Pmax)

590W

595W

600W

Open-circuit Voltage (Voc)

52.51V

52.66V

52.81V

Maximum Power Voltage (Vmp)

44.36V

44.51V

44.66V

Short-circuit Current(Isc)

14.33A

14.4A

14.46A

Maximum Power Current(Imp)

13.31A

13.37A

13.44A

Module Efficiency(%)

22.8%

23%

23.2%

Temperature Coefficient of Isc: 0.05%/℃/Temperature Coeficient of Voc: -0.31%/℃/Temperature Coefficient of Pmax: -0.35%/℃

Standard Test Environment: Imradiance 1000W/m, Cell temperature 25℃, Spectrum AM1.5

NOCT——Electrical Characteristics

Maximum Power(Pmax)

441W

445W

448W

Open-circuit Voltage (Voc)

49.3V

49.44V

49.58V

Maximum Power Voltage (Vmp)

40.48V

40.62V

40.75V

Short-circuit Current (lsc)

11.57A

11.63A

11.68A

Maximum Power Current(Imp)

10.90A

10.97A

11.00A

Standard Test Environment: Imradiance 800W/m² Ambient temperature 20℃, Spectrum AM1.5, Wind speed 1m/s

MECHANICAL SPECIFICATION

OPERATING PARAMETERS

Cable (Including connector)

4.0mm², 300/400mm in length, length can be customized

Maximum system voltage

1500V DC

Operating Temperature

-40~+85℃

No.of Cells

144(66×2)

Maximum series fuse rating

20A

Glass

3.2mm High Transmission, Antireflection Coating

Snow load, frontside/Wind load, backside

5400Pa/2400Pa

Junction box

IP68,3 Bypass Diodes

Nominal operating cell temperature

42℃±2℃

Connector

MC4 Compatible

Application level

Class A

STC—Electrical Characteristics

Module Type

DHT-M60X10/FS

Maximum Power(Pmax)

600W

605W

610W

615W

620W

Open-circuit Voltage (Voc)

48.28V

48.48V

48.68V

48.88V

49.08V

Maximum Power Voltage (Vmp)

40.16V

40.31V

40.46V

40.60V

40.74V

Short-circuit Current (lsc)

15.84A

15.90A

15.96A

16.02A

16.08A

Maximum Power Current(Imp)

14.94A

15.01A

15.08A

15.15A

15.22A

Module Efficiency(%)

22.21%

22.40%

22.58%

22.77%

22.95%

Temperature Coefficient of Isc: 0.05%/℃/Temperature Coeficient of Voc: -0.37%/℃/Temperature Coefficient of Pmax: -0.35%PC

Standard Test Environment : Iradiance 1000W/m², Cell temperature 25℃, Spectrum AM1.5

NOCT--Electrical Characteristics

Maximum Power (Pmax)

453W

457W

461W

464W

468W

Open-circuit Voltage (Voc)

45.86V

46.05V

46.24V

46.43V

50.15V

Maximum Power Voltage (Vmp)

41.72V

41.82

41.92V

42.03V

46.62V

Short-circuit Current (lsc)

12.79A

12.83A

12.88A

12.93A

12.98A

Maximum Power Current(Imp)

12.05A

12.10A

12.15A

12.09A

12.24A

Standard Test Environment: Iradiance 800Wm², Ambient temperature 20℃, Spectrum AM1.5, Wind speed 1m/s

MECHANICAL SPECIFICATION

OPERATING PARAMETERS

Cable(Including connector)

4.0mm², 300/400mm in length, length can be customized

Maximum system voltage

1500V DC

Operating Temperature

-40~+85℃

No.of Cells

144(6×24)

Maximum series fuse rating

20A

Glass

3.2mm High Transmission, Antireflection Coating

Snow load, frontside/Wind loadbackside

5400Pa/2400Pa

Junction box

IP68, 3 Bypass Diodes

Nominal operating cell temperature

42℃±2℃

Connector

MC4 Compatible

Application level

Class A

STC--Electrical Characteristics

Module Type

DHT-M60X10/FS

Maximum Power (Pmax)

620W

630W

640W

645W

650W

Open-circuit Voltage(Voc)

42.90V

43.32V

43.73V

43.91V

44.11V

Maximum Power Voltage (Vmp)

35.71V

36.12V

36.51V

36.71V

36.91V

Short-circuit Current (Isc)

18.31A

18.41A

18.51A

18.56A

18.61A

Maximum Power Current (Imp)

17.37A

17.46A

17.54A

17.58A

17.62A

Module Efficiency(%)

22.2%

22.5%

22.7%

22.8%

23.2%

Temperature Coeffcient oflsc: 0.05%/℃/Temperature Coefficient of Voc: -0.37%C/Temperature Coefficient of Pmax: -0.35%/℃

Standard Test Environment: Iradiance 1000W/me, Cell temperature 25℃, Spectrum AM1.5

NOCT--Electrical Characteristics

Maximum Power(Pmax)

469.1W

476.6W

484.4W

488.2W

492.0W

Open-circuit Voltage (Voc)

40.64V

41.00V

41.44V

41.64V

41.85V

Maximum Power Voltage(Vmp)

33.80V

34.12V

34.52V

34.71V

34.93V

Short-circuit Current(lsc)

14.77A

14.85A

14.93A

14.97A

15.01A

Maximum Power Current(Imp)

13.89A

13.96A

14.03A

14.06A

14.09A

Standard Test Environment: Iradiance 800W/m² Ambient temperature 20℃ Spectrum AM1.5, Wind speed 1m/s

MECHANICAL SPECIFICATION

OPERATING PARAMETERS

Cable(Including connector)

4.0mm²,300/400mm  in  length, length can be customized

Maximum system voltage

1500V DC

Operating Temperature

-40~+85℃

No.of Cells

144(6×24)

Maximum series fuse rating

20A

Glass

3.2mm High Transmission, Antireflection Coating

Snow load, frontside/Wind load, backside

5400Pa/2400Pa

Junction box

IP68, 3 Bypass Diodes

Nominal operating cell temperature

42℃±2℃

Connector

MC4 Compatible

Application level

Class A

STC—Electrical Characteristics

Module Type

DHT-M60X10/FS

Maximum Power(Pmax)

695W

700W

705W

710W

720W

Open-circuit Voltage (Voc)

48.31V

48.62V

48.83V

49.01V

49.45V

Maximum Power Voltage (Vmp)

40.31V

40.52V

40.71V

40.92V

41.31V

Short-circuit Current (lsc)

18.28A

18.32A

18.36A

18.40A

18.49A

Maximum Power Current(Imp)

17.25A

17.29A

17.33A

17.36A

17.44A

Module Efficiency(%)

22.4%

22.5%

22.7%

22.8%

23.2%

Temperature Coefficient of Isc: 0.05%/℃/Temperature Coeficient of Voc: -0.37%/℃/Temperature Coefficient of Pmax: -0.35%PC

Standard Test Environment: Iradiance 1000W/m², Cell temperature 25℃ Spectrum AM1.5

NOCT--Electrical Characteristics

Maximum Power(Pmax)

531.7W

534.6W

540.4W

543.2W

551.0W

Open-circuit Voltage (Voc)

45.94V

46.14V

46.34V

46.54V

46.95V

Maximum Power Voltage (Vmp)

37.90V

38.02

38.32V

38.53

38.83

Short-circuit Current(Isc)

14.72A

14.76A

14.80A

14.83A

14.90A

Maximum Power Current(Imp)

14.00A

14.04A

14.08A

14.12A

14.19

Standard Test Environment: Iradiance 800W/m² Ambient temperature 20℃, Spectrum AM1.5, Wind speed 1m/s

Mechanical Parameters

Cell Orientation

108(6×18)

Junction Box

IP68

Output Cable

4mm², ±1200mm

Length can be customized

Glass

Single glass, 3.2mm coated tempered glass

Frame

Anodized aluminumalloy frame

Weight

20.8kg

Dimension

1722×1134×30mm

Packaging

36pcs per pallet/216pcs per20'GP/936pcs per 40'HC

How To Choose A Product Portfolio
Dedicated business manager online service, contact us to customize your energy system.
Get A Quote
Message Feedback
About Honle
HONLE NEW ENERGY TECHNOLOGY CO.,LTD.
Honle New Energy Technology Co., Ltd., a subsidiary of Honle Group, is a globally recognized and trusted supplier with over two decades of experience in the electric and new energy sectors. We specialize in providing sustainable and eco-friendly energy products and solutions. With a strong presence in key markets worldwide, including Uzbekistan, UAE, Indonesia, Tanzania, Côte d'Ivoire, and others, Honle New Energy has built a solid reputation as a renowned provider of new energy solutions.

Equipped with state-of-the-art international production facilities, we have an annual production capacity covering 66,000 square meters. Our cutting-edge energy solutions, including solar power systems and energy storage products, cater to a wide range of applications—from residential homes to business and commercial projects. We are committed to delivering dynamic, innovative, and tailored solutions that meet the evolving needs of our clients and the broader energy industry.

At Honle New Energy, we prioritize customer satisfaction and offer flexible engagement models, including engineering services and project-based product delivery. We are dedicated to exceeding expectations and are open to negotiating capacities to ensure optimal outcomes for our partners.
Certificate Of Honor
  • Top 100 Yueqing Manufacturing Enterprises
  • Specialized and Innovative Small and Medium-Sized Enterprises
  • Specialized And Innovative Small And Medium-Sized Enterprises
  • The Certificate Of Quality Management System
News
This site uses cookies. By continuing to browse the site you are agreeing to our use of cookies. For more details about cookies and how to manage them see our 《Privacy Policy》
Accept
